22 - Engine - 22.1 - Cylinder Head & Cam Phasers

McLaren Ultimate Series McLaren Speedtail

Find Your Part

McLaren Ultimate Series McLaren Speedtail - 22 - ENGINE - 22.1 - CYLINDER HEAD & CAM PHASERS

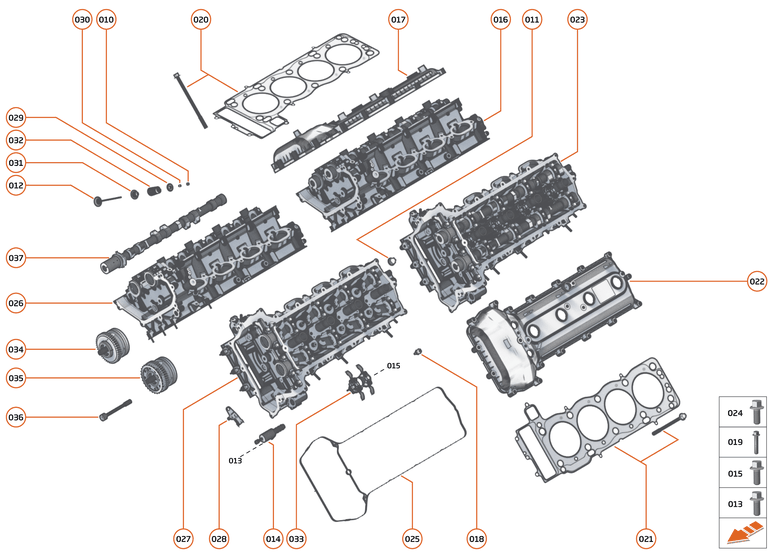

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All
22 - ENGINE - 22.1 - CYLINDER HEAD & CAM PHASERS of McLaren McLaren Ultimate Series McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F2688CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.44
Row ID: ID__11F2688CP_ContPgHS; 		- 1 Enquire
010 11F2689CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.455
Row ID: ID__11F2689CP_ContPgHS; 		- 1 Enquire
010 11F2690CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.47
Row ID: ID__11F2690CP_ContPgHS; 		- 1 Enquire
010 11F2691CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.485
Row ID: ID__11F2691CP_ContPgHS; 		- 1 Enquire
010 11F2692CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.5
Row ID: ID__11F2692CP_ContPgHS; 		- 1 Enquire
010 11F2693CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.515
Row ID: ID__11F2693CP_ContPgHS; 		- 1 Enquire
010 11F2694CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.53
Row ID: ID__11F2694CP_ContPgHS; 		- 1 Enquire
010 11F2695CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.545
Row ID: ID__11F2695CP_ContPgHS; 		- 1 Enquire
010 11F2696CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.56
Row ID: ID__11F2696CP_ContPgHS; 		- 1 Enquire
010 11F2697CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.575
Row ID: ID__11F2697CP_ContPgHS; 		- 1 Enquire
010 11F2698CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.59
Row ID: ID__11F2698CP_ContPgHS; 		- 1 Enquire
010 11F2699CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.605
Row ID: ID__11F2699CP_ContPgHS; 		- 1 Enquire
010 11F2700CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.62
Row ID: ID__11F2700CP_ContPgHS; 		- 1 Enquire
010 11F2701CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.635
Row ID: ID__11F2701CP_ContPgHS; 		- 1 Enquire
010 11F2702CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.65
Row ID: ID__11F2702CP_ContPgHS; 		- 1 Enquire
010 11F2703CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.665
Row ID: ID__11F2703CP_ContPgHS; 		- 1 Enquire
010 11F2704CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.95
Row ID: ID__11F2704CP_ContPgHS; 		- 1 Enquire
010 11F2705CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.965
Row ID: ID__11F2705CP_ContPgHS; 		- 1 Enquire
010 11F2706CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.98
Row ID: ID__11F2706CP_ContPgHS; 		- 1 Enquire
010 11F2707CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.995
Row ID: ID__11F2707CP_ContPgHS; 		- 1 Enquire
010 11F2708CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.01
Row ID: ID__11F2708CP_ContPgHS; 		- 1 Enquire
010 11F2709CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.025
Row ID: ID__11F2709CP_ContPgHS; 		- 1 Enquire
010 11F2710CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.04
Row ID: ID__11F2710CP_ContPgHS; 		- 1 Enquire
010 11F2711CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.055
Row ID: ID__11F2711CP_ContPgHS; 		- 1 Enquire
010 11F2712CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.07
Row ID: ID__11F2712CP_ContPgHS; 		- 1 Enquire
010 11F2713CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.085
Row ID: ID__11F2713CP_ContPgHS; 		- 1 Enquire
010 11F2714CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.1
Row ID: ID__11F2714CP_ContPgHS; 		- 1 Enquire
010 11F2715CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.115
Row ID: ID__11F2715CP_ContPgHS; 		- 1 Enquire
010 11F2716CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.13
Row ID: ID__11F2716CP_ContPgHS; 		- 1 Enquire
010 11F2717CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.145
Row ID: ID__11F2717CP_ContPgHS; 		- 1 Enquire
010 11F2718CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.16
Row ID: ID__11F2718CP_ContPgHS; 		- 1 Enquire
010 11F2719CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.175
Row ID: ID__11F2719CP_ContPgHS; 		- 1 Enquire
010 11F2720CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.19
Row ID: ID__11F2720CP_ContPgHS; 		- 1 Enquire
010 11F2721CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.205
Row ID: ID__11F2721CP_ContPgHS; 		- 1 Enquire
010 11F2722CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.22
Row ID: ID__11F2722CP_ContPgHS; 		- 1 Enquire
010 11F2723CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.235
Row ID: ID__11F2723CP_ContPgHS; 		- 1 Enquire
010 11F2724CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.25
Row ID: ID__11F2724CP_ContPgHS; 		- 1 Enquire
010 11F2725CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.265
Row ID: ID__11F2725CP_ContPgHS; 		- 1 Enquire
010 11F2726CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.28
Row ID: ID__11F2726CP_ContPgHS; 		- 1 Enquire
010 11F2727CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.295
Row ID: ID__11F2727CP_ContPgHS; 		- 1 Enquire
010 11F2728CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.31
Row ID: ID__11F2728CP_ContPgHS; 		- 1 Enquire
010 11F2729CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.325
Row ID: ID__11F2729CP_ContPgHS; 		- 1 Enquire
010 11F2730CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.34
Row ID: ID__11F2730CP_ContPgHS; 		- 1 Enquire
010 11F2731CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.355
Row ID: ID__11F2731CP_ContPgHS; 		- 1 Enquire
010 11F2732CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.37
Row ID: ID__11F2732CP_ContPgHS; 		- 1 Enquire
010 11F2733CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.385
Row ID: ID__11F2733CP_ContPgHS; 		- 1 Enquire
010 11F2734CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.4
Row ID: ID__11F2734CP_ContPgHS; 		- 1 Enquire
010 11F2735CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.415
Row ID: ID__11F2735CP_ContPgHS; 		- 1 Enquire
010 11F2736CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.43
Row ID: ID__11F2736CP_ContPgHS; 		- 1 Enquire
010 11F2737CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.445
Row ID: ID__11F2737CP_ContPgHS; 		- 1 Enquire
010 11F2738CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.46
Row ID: ID__11F2738CP_ContPgHS; 		- 1 Enquire
010 11F2739CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.475
Row ID: ID__11F2739CP_ContPgHS; 		- 1 Enquire
010 11F2740CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.49
Row ID: ID__11F2740CP_ContPgHS; 		- 1 Enquire
010 11F2741CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.505
Row ID: ID__11F2741CP_ContPgHS; 		- 1 Enquire
010 11F1493CP
SHIM - VALVE LASH - 2.68
Row ID: ID__11F1493CP_ContPgHS; 		- 1 Enquire
010 11F1494CP
SHIM - VALVE LASH - 2.695
Row ID: ID__11F1494CP_ContPgHS; 		- 1 Enquire
010 11F1495CP
SHIM - VALVE LASH - 2.71
Row ID: ID__11F1495CP_ContPgHS; 		- 1 Enquire
010 11F1496CP
SHIM - VALVE LASH - 2.725
Row ID: ID__11F1496CP_ContPgHS; 		- 1 Enquire
010 11F1497CP
SHIM - VALVE LASH - 2.74
Row ID: ID__11F1497CP_ContPgHS; 		- 1 Enquire
010 11F1498CP
SHIM - VALVE LASH - 2.755
Row ID: ID__11F1498CP_ContPgHS; 		- 1 Enquire
010 11F1499CP
SHIM - VALVE LASH - 2.77
Row ID: ID__11F1499CP_ContPgHS; 		- 1 Enquire
010 11F1500CP
SHIM - VALVE LASH - 2.785
Row ID: ID__11F1500CP_ContPgHS; 		- 1 Enquire
010 11F1501CP
SHIM - VALVE LASH - 2.8
Row ID: ID__11F1501CP_ContPgHS; 		- 1 Enquire
010 11F1502CP
SHIM - VALVE LASH - 2.815
Row ID: ID__11F1502CP_ContPgHS; 		- 1 Enquire
010 11F1503CP
SHIM - VALVE LASH - 2.83
Row ID: ID__11F1503CP_ContPgHS; 		- 1 Enquire
010 11F1504CP
SHIM - VALVE LASH - 2.845
Row ID: ID__11F1504CP_ContPgHS; 		- 1 Enquire
010 11F1505CP
SHIM - VALVE LASH - 2.86
Row ID: ID__11F1505CP_ContPgHS; 		- 1 Enquire
010 11F1506CP
SHIM - VALVE LASH - 2.875
Row ID: ID__11F1506CP_ContPgHS; 		- 1 Enquire
010 11F1507CP
SHIM - VALVE LASH - 2.89
Row ID: ID__11F1507CP_ContPgHS; 		- 1 Enquire
010 11F1508CP
SHIM - VALVE LASH - 2.905
Row ID: ID__11F1508CP_ContPgHS; 		- 1 Enquire
010 11F1509CP
SHIM - VALVE LASH - 2.92
Row ID: ID__11F1509CP_ContPgHS; 		- 1 Enquire
010 11F1510CP
SHIM - VALVE LASH - 2.935
Row ID: ID__11F1510CP_ContPgHS; 		- 1 Enquire
011 11F1688CP
Cap - Head Bolt
Row ID: ID_E0F101R5_11F1688CP_ContPgHS; 		- 4 Enquire
012 11F1459CP
INTAKE VALVE-STD
Row ID: ID__11F1459CP_ContPgHS; 		- 1 Enquire
012 11F1452CP
EXHAUST VALVE-STD
Row ID: ID__11F1452CP_ContPgHS; 		- 1 Enquire
013 11F0803CP
Bolt - M5x16 - Engine - Solenoid - Engine Cam Phaser
Row ID: ID_E0F10168_11F0803CP_ContPgHS; 		- 1 Enquire
014 11F2459CP
Solenoid - Engine Cam Phaser
Row ID: ID_E0F10169_11F2459CP_ContPgHS; 		- 4 Enquire
015 11F1776CP
BOLT - M6X30 - HEX
Row ID: ID_E0F10170_11F1776CP_ContPgHS; 		- 1 Enquire
016 11F1545CP
Cylinder Head - Engine - Assy - RH - MY2015
Row ID: ID_E0F101P8_11F1545CP_ContPgHS; 		- 1 Enquire
016 11F0711CP
CYLINDER HEAD - ENGINE - ASSY - LH
Row ID: ID__11F0711CP_ContPgHS; 		- 1 Enquire
017 11F0396CP
CAM COVER-RH 18
Superseded parts: 11F0396CP; Row ID: ID_E0F10172_11F0396CP_ContPgHS; 		$261.81 1
017 11F1152CP
CAM COVER-RH 24
Row ID: ID_E0F101M9_11F1152CP_ContPgHS; 		$288.53 1
018 11F1060CP
Mount - Anti-Vibration - Ignition Coil - Engine
Row ID: ID_E0F10173_11F1060CP_ContPgHS; 		- 1 Enquire
019 11F0826CP
Bolt - M6x40 - Engine
Row ID: ID_E0F10174_11F0826CP_ContPgHS; 		- 1 Enquire
020 14FA198CP
HEAD GASKET KIT - INC. BOLTS - ENGINE - RH
Row ID: ID__14FA198CP_ContPgHS; 		- 1 Enquire
021 14FA199CP
HEAD GASKET KIT - INC. BOLTS - ENGINE - LH
Row ID: ID_E0F101R7_14FA199CP_ContPgHS; 		- 1 Enquire
022 11F1153CP
CAM COVER-LH 24
Superseded parts: 11F0395CP; Row ID: ID_E0F10177_11F1153CP_ContPgHS; 		$288.53 1
023 11F1544CP
Cylinder Head - Engine - Assy - LH - MY2015
Row ID: ID_E0F101P9_11F1544CP_ContPgHS; 		- 1 Enquire
023 11F0712CP
CYLINDER HEAD - ENGINE - ASSY - RH
Row ID: ID__11F0712CP_ContPgHS; 		- 1 Enquire
024 11F1685CP
BOLT - CYLINDER HEAD INC. WASHER
Row ID: ID_E0F1011E_11F1685CP_ContPgHS; 		- 20 Enquire
025 14FA259CP
SEAL CAM COVER
Row ID: ID__14FA259CP_ContPgHS;
IN STOCK 		$223.39 1
026 23FA349CP
Cylinder Head - Engine- RH - Bare
Row ID: ID__23FA349CP_ContPgHS; 		- 1 Enquire
027 23FA352CP
Cylinder Head - Engine- LH - Bare
Row ID: ID__23FA352CP_ContPgHS; 		- 1 Enquire
028 11F0740CP
ENGINE CAM PHASE SENSOR
Row ID: ID__11F0740CP_ContPgHS; 		- 1 Enquire
029 11F1977CP
RETAINER SPRING
Row ID: ID__11F1977CP_ContPgHS; 		- 1 Enquire
030 11F1975CP

Color codes: COLLET; Row ID: ID__11F1975CP_ContPgHS; 		- 1 Enquire
031 11F1979CP
SEAL- VALVE STEM
Row ID: ID__11F1979CP_ContPgHS; 		- 1 Enquire
032 11F1981CP
VALVE SPRING
Row ID: ID__11F1981CP_ContPgHS; 		- 1 Enquire
033 11F2684CP
ROCKER MOUNTING
Row ID: ID__11F2684CP_ContPgHS; 		- 1 Enquire
034 11F1988CP
ASSY - VCT - EXHAUST - LH
Row ID: ID__11F1988CP_ContPgHS; 		- 2 Enquire
034 11F1991CP
ASSY - VCT - EXHAUST - RH
Row ID: ID__11F1991CP_ContPgHS; 		- 2 Enquire
035 11F1989CP
ASSY - VCT - INLET - LH
Row ID: ID__11F1989CP_ContPgHS; 		- 2 Enquire
035 11F1990CP
ASSY - VCT - INLET - RH
Row ID: ID__11F1990CP_ContPgHS; 		- 2 Enquire
036 11FA015CP

VCT BOLT; Row ID: ID__11FA015CP_ContPgHS; 		- 4 Enquire
037 11F1234CP
CAMSHAFT - INTAKE LH - 252x11
Row ID: ID__11F1234CP_ContPgHS; 		- 1 Enquire
037 11F1236CP
CAMSHAFT - INTAKE RH - 252x11
Row ID: ID__11F1236CP_ContPgHS; 		- 1 Enquire
037 11F1235CP
CAMSHAFT - EXHAUST - LH - 12C
Row ID: ID__11F1235CP_ContPgHS; 		- 1 Enquire
037 11F1512CP
CAMSHAFT-EXHAUST-LH
Row ID: ID__11F1512CP_ContPgHS; 		- 1 Enquire
037 11F1237CP
CAMSHAFT - EXHAUST - RH - 12C
Row ID: ID__11F1237CP_ContPgHS; 		- 1 Enquire
037 11F1513CP
CAMSHAFT-EXHAUST-RH
Row ID: ID__11F1513CP_ContPgHS; 		- 1 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
