30 - FUEL SYSTEM - 30.2 - FUEL TANK RETENTION of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 30 - FUEL SYSTEM - 30.2 - FUEL TANK RETENTION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

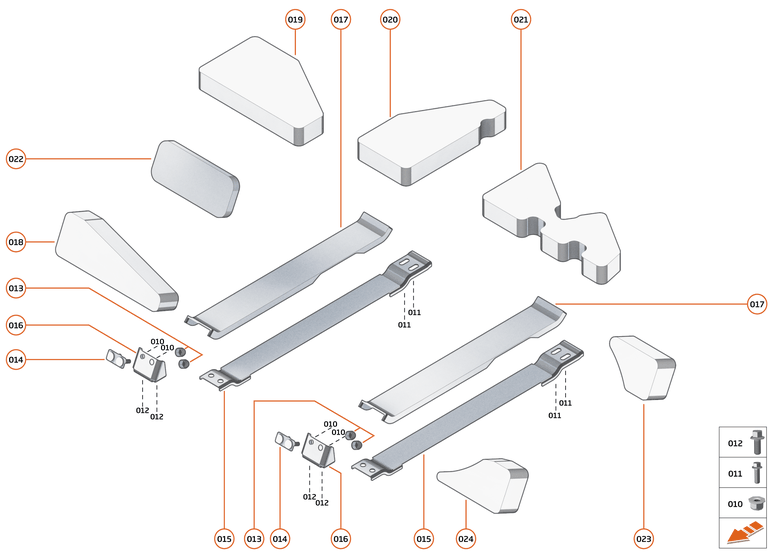

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
011	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	4	Enquire
012	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	4	Enquire
013	00RG010	NUT PROTECTOR - M6 -REEVITE	00RG010 NUT PROTECTOR - M6 -REEVITE Row ID: ID__00RG010_ContPgHS;	-	4	Enquire
014	11K0105CP	STUD PLATE - M6X18 - FUEL TANK	11K0105CP STUD PLATE - M6X18 - FUEL TANK Row ID: ID__11K0105CP_ContPgHS;	-	2	Enquire
015	14K0068CP	MOUNTING STRAP - FUEL TANK	14K0068CP MOUNTING STRAP - FUEL TANK Row ID: ID__14K0068CP_ContPgHS;	-	2	Enquire
016	14KA024CP	BRACKET - FUEL TANK - LOWER - FRONT	14KA024CP BRACKET - FUEL TANK - LOWER - FRONT Row ID: ID__14KA024CP_ContPgHS;	-	2	Enquire
017	14KA046CP	MOUNTING STRAP - MOULDED - FUEL TANK	14KA046CP MOUNTING STRAP - MOULDED - FUEL TANK Row ID: ID__14KA046CP_ContPgHS;	-	1	Enquire
018	14K0143CP	PAD - FUEL TANK - BULKHEAD - LOWER - RH	14K0143CP PAD - FUEL TANK - BULKHEAD - LOWER - RH Row ID: ID__14K0143CP_ContPgHS;	-	1	Enquire
019	15KA017RP	FUEL CELL - PAD - TOP RIGHT	15KA017RP FUEL CELL - PAD - TOP RIGHT Row ID: ID__15KA017RP_ContPgHS;	-	1	Enquire
020	15KA018RP	FUEL CELL - PAD - TOP CENTRE	15KA018RP FUEL CELL - PAD - TOP CENTRE Row ID: ID__15KA018RP_ContPgHS;	-	1	Enquire
021	15KA019RP	FUEL CELL - PAD - TOP LEFT	15KA019RP FUEL CELL - PAD - TOP LEFT Row ID: ID__15KA019RP_ContPgHS;	-	1	Enquire
022	15KA020RP	FUEL CELL - BULKHEAD - PAD - U	15KA020RP FUEL CELL - BULKHEAD - PAD - U Row ID: ID__15KA020RP_ContPgHS;	-	1	Enquire
023	15KA021RP	FUEL CELL - BULKHEAD - PAD - U	15KA021RP FUEL CELL - BULKHEAD - PAD - U Row ID: ID__15KA021RP_ContPgHS;	-	1	Enquire
024	15KA022RP	FUEL CELL - BULKHEAD - PAD - L	15KA022RP FUEL CELL - BULKHEAD - PAD - L Row ID: ID__15KA022RP_ContPgHS;	-	1	Enquire
