27 - NVH - HEAT INSULATION - 27.2 - INSULATION - VEHICLE MOUNTED of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 27 - NVH - HEAT INSULATION - 27.2 - INSULATION - VEHICLE MOUNTED

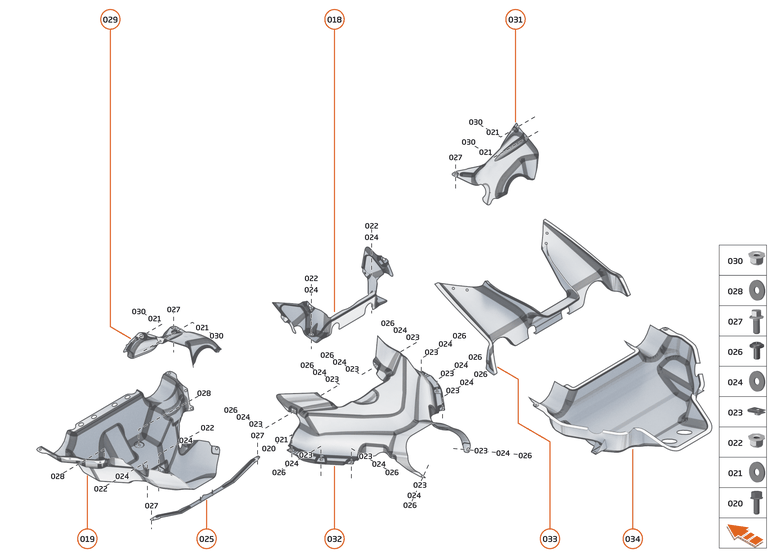

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
018	15EA007CP	HEATSHIELD - MUFFLER - FRONT	15EA007CP HEATSHIELD - MUFFLER - FRONT Row ID: ID__15EA007CP_ContPgHS;	-	1	Enquire
019	15EA021CP	HEATSHIELD - MUFFLER - LOWER	15EA021CP HEATSHIELD - MUFFLER - LOWER Row ID: ID__15EA021CP_ContPgHS;	-	1	Enquire
020	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID__00RA061_ContPgHS;	-	2	Enquire
020	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	2	Enquire
021	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	5	Enquire
022	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS;	-	4	Enquire
023	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID__00RA301_ContPgHS;	-	10	Enquire
024	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID__00RC017_ContPgHS;	-	14	Enquire
025	15EA018CP	BRACKET - MUFFLER - LOWER HEATSHIELD	15EA018CP BRACKET - MUFFLER - LOWER HEATSHIELD Row ID: ID__15EA018CP_ContPgHS;	-	1	Enquire
026	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS;	-	12	Enquire
027	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	2	Enquire
028	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS;	-	2	Enquire
029	14E0044CP	HEATSHIELD - AIR GUIDE - FRONT - LH	14E0044CP HEATSHIELD - AIR GUIDE - FRONT - LH Row ID: ID__14E0044CP_ContPgHS;	-	1	Enquire
029	15EA009CP	AIR GUIDE - FRONT - LH	15EA009CP AIR GUIDE - FRONT - LH Row ID: ID__15EA009CP_ContPgHS;	-	1	Enquire
030	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	4	Enquire
031	15EA011CP	AIR GUIDE - FRONT - RH	15EA011CP AIR GUIDE - FRONT - RH Row ID: ID__15EA011CP_ContPgHS;	-	1	Enquire
032	15EA020CP	HEATSHIELD - UPPER MUFFLER - NO VALVES	15EA020CP HEATSHIELD - UPPER MUFFLER - NO VALVES Row ID: ID__15EA020CP_ContPgHS;	-	1	Enquire
