30 - FUEL SYSTEM - 30.1 - FUEL TANK of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 30 - FUEL SYSTEM - 30.1 - FUEL TANK

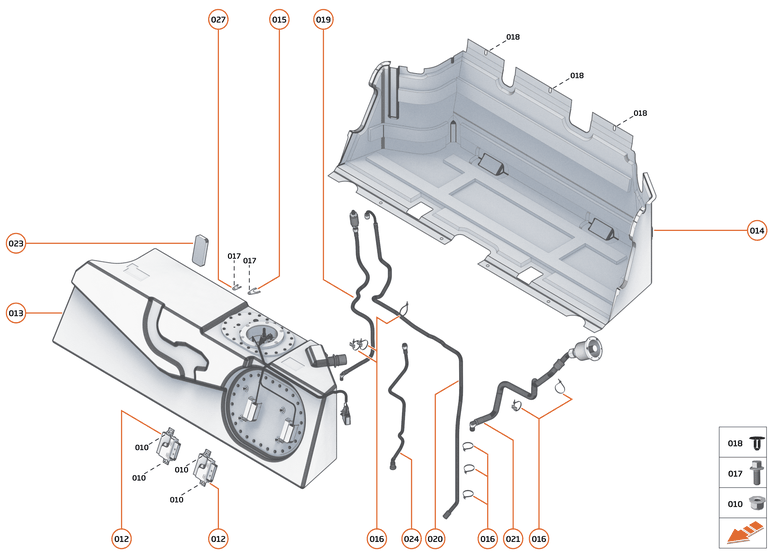

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
012	14KA056CP	CONTROLLER - FUEL PUMP	14KA056CP CONTROLLER - FUEL PUMP Row ID: ID__14KA056CP_ContPgHS;	-	2	Enquire
013	15KA028RP	ASSY -FUEL TANK -COMPLETE	15KA028RP ASSY -FUEL TANK -COMPLETE Row ID: ID__15KA028RP_ContPgHS;	-	1	Enquire
013	15KA004RP	ASSY FUEL TANK COMPLETE	15KA004RP ASSY FUEL TANK COMPLETE Row ID: ID__15KA004RP_ContPgHS;	-	1	Enquire
014	15KA015RP	COVER FUEL CELL	15KA015RP COVER FUEL CELL Row ID: ID__15KA015RP_ContPgHS;	-	1	Enquire
015	15KA009RP	PLATE RETAINER PLUG-IN BREATHE	15KA009RP PLATE RETAINER PLUG-IN BREATHE Row ID: ID__15KA009RP_ContPgHS;	-	1	Enquire
016	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID__00RL012_ContPgHS;	-	6	Enquire
017	00RA372	BOLT - HEX HEAD - LOCK - M5X25 - 8.8	00RA372 BOLT - HEX HEAD - LOCK - M5X25 - 8.8 Row ID: ID__00RA372_ContPgHS;	-	-	Enquire
018	00RG003	FIRTREE 7.2X15X24	00RG003 FIRTREE 7.2X15X24 Row ID: ID__00RG003_ContPgHS;	-	3	Enquire
019	15KA027RP	PIPE BREATHER FUEL TANK	15KA027RP PIPE BREATHER FUEL TANK Row ID: ID__15KA027RP_ContPgHS;	-	1	Enquire
019	15KA011RP	PIPE BREATHER FUEL TANK	15KA011RP PIPE BREATHER FUEL TANK Row ID: ID__15KA011RP_ContPgHS;	-	1	Enquire
020	15KA026RP	PIPE BREATHER VENT HOSE	15KA026RP PIPE BREATHER VENT HOSE Row ID: ID__15KA026RP_ContPgHS;	-	1	Enquire
020	15KA023RP	PIPE BREATHER VENT HOSE	15KA023RP PIPE BREATHER VENT HOSE Row ID: ID__15KA023RP_ContPgHS;	-	1	Enquire
021	15KA025RP	PIPE FUEL FILL VENT	15KA025RP PIPE FUEL FILL VENT Row ID: ID__15KA025RP_ContPgHS;	-	1	Enquire
022	15KA029RP	PLATE RETAINER 6 PLUG-IN	15KA029RP PLATE RETAINER 6 PLUG-IN Row ID: ID__15KA029RP_ContPgHS;	-	1	Enquire
023	11CA014CP	FOAM PAD-PIPE-VAC-BRAKE	11CA014CP FOAM PAD-PIPE-VAC-BRAKE Row ID: ID__11CA014CP_ContPgHS;	-	-	Enquire
024	15KA010RP	PIPE FUEL TANK FEED	15KA010RP PIPE FUEL TANK FEED Row ID: ID__15KA010RP_ContPgHS;	-	1	Enquire
