23 - ENGINE - 23.7 - BREATHER ASSEMBLY AND FUEL PURGE of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 23 - ENGINE - 23.7 - BREATHER ASSEMBLY AND FUEL PURGE

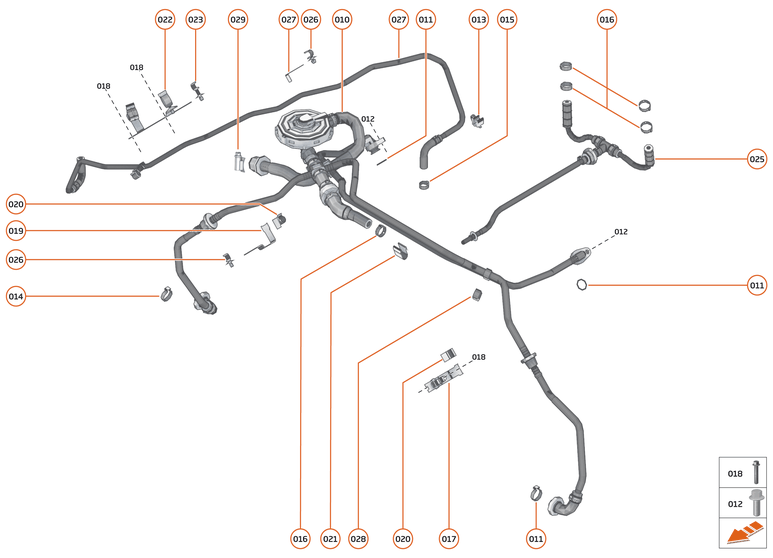

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15FA318CP	CCV BREATHER - ENGINE	15FA318CP CCV BREATHER - ENGINE Row ID: ID__15FA318CP_ContPgHS;	-	1	Enquire
011	11F2060CP	SEAL - O-RING - 16-2.5 FKM	11F2060CP SEAL - O-RING - 16-2.5 FKM Row ID: ID__11F2060CP_ContPgHS;	-	2	Enquire
012	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Row ID: ID__11F1793CP_ContPgHS;	-	16	Enquire
013	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS;	-	1	Enquire
014	00RB094	OETIKER CLIP - 21.0	00RB094 OETIKER CLIP - 21.0 Row ID: ID__00RB094_ContPgHS;	-	2	Enquire
015	11F1863CP	OETIKER CLIP - 14.1-16.6	11F1863CP OETIKER CLIP - 14.1-16.6 Row ID: ID__11F1863CP_ContPgHS;	-	1	Enquire
016	11F1856CP	OETIKER CLIP - 15.3-18.5	11F1856CP OETIKER CLIP - 15.3-18.5 Row ID: ID__11F1856CP_ContPgHS;	-	3	Enquire
017	11F2030CP	BRACKET - CAM COVER - LH - CCV - VAC	11F2030CP BRACKET - CAM COVER - LH - CCV - VAC Row ID: ID__11F2030CP_ContPgHS;	-	1	Enquire
018	11F1777CP	BOLT - M6X40 - HEX	11F1777CP BOLT - M6X40 - HEX Row ID: ID__11F1777CP_ContPgHS;	-	8	Enquire
019	14F0647CP	BRACKET - CAM COVER - RH - CCV - VAC	14F0647CP BRACKET - CAM COVER - RH - CCV - VAC Row ID: ID__14F0647CP_ContPgHS;	-	1	Enquire
020	11F1933CP	CLIP - RAYMOND - 014434	11F1933CP CLIP - RAYMOND - 014434 Row ID: ID__11F1933CP_ContPgHS;	-	1	Enquire
021	11F2029CP	CLIP - RAYMOND - 2WAY - 13493	11F2029CP CLIP - RAYMOND - 2WAY - 13493 Row ID: ID__11F2029CP_ContPgHS;	-	1	Enquire
022	11F1681CP	BRACKET - PCV - INC CLIPS	11F1681CP BRACKET - PCV - INC CLIPS Row ID: ID__11F1681CP_ContPgHS;	-	1	Enquire
023	12F0710CP	CLIP - ONE WAY - RAYMOND	12F0710CP CLIP - ONE WAY - RAYMOND Row ID: ID__12F0710CP_ContPgHS;	-	1	Enquire
024	14F0088CP	BRACKET CLIP - M8	14F0088CP BRACKET CLIP - M8 Row ID: ID__14F0088CP_ContPgHS;	-	1	Enquire
025	15FA053CP	FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE	15FA053CP FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE Row ID: ID__15FA053CP_ContPgHS;	-	1	Enquire
026	14F0641CP	CLIP - RAYMOND - 1WAY - 9MM	14F0641CP CLIP - RAYMOND - 1WAY - 9MM Row ID: ID__14F0641CP_ContPgHS;	-	2	Enquire
027	15FA078CP	PIPE - SEPARATOR TO REAR BAY	15FA078CP PIPE - SEPARATOR TO REAR BAY Row ID: ID__15FA078CP_ContPgHS;	-	1	Enquire
028	14F0398CP	CLIP - RAYMOND - 18900 - 12MM	14F0398CP CLIP - RAYMOND - 18900 - 12MM Row ID: ID__14F0398CP_ContPgHS;	-	1	Enquire
029	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Row ID: ID__00RB053_ContPgHS;	-	1	Enquire
