McLaren Ultimate Series McLaren Senna GTR - 23 - ENGINE - 23.10 - ENGINE OIL PUMP & CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

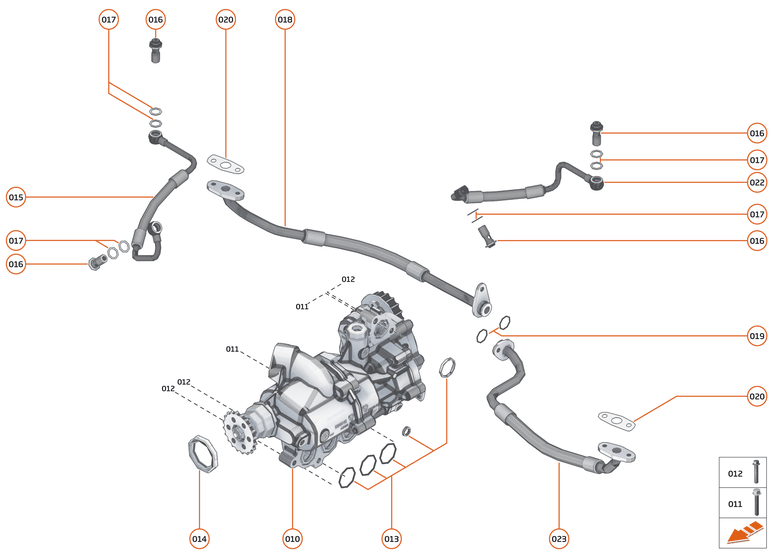

23 - ENGINE - 23.10 - ENGINE OIL PUMP & CIRCUIT of McLaren McLaren Ultimate Series McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14FA028RP
OIL PUMP - ENGINE
Row ID: ID__14FA028RP_ContPgHS; 		- 1 Enquire
011 11F1926CP
BOLT - M8X40 - DIA HEAD
Row ID: ID__11F1926CP_ContPgHS; 		- 2 Enquire
012 11F1781CP
BOLT - M6X35 - ENGINE
Row ID: ID__11F1781CP_ContPgHS; 		- 3 Enquire
013 11F1030CP
Seal Kit - Oil Pump to Block - Engine
Row ID: ID__11F1030CP_ContPgHS; 		- 1 Enquire
014 11F0690CP
Seal - Engine Oil Pump
Row ID: ID__11F0690CP_ContPgHS; 		- 1 Enquire
015 14F0542CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH
Row ID: ID__14F0542CP_ContPgHS; 		- 1 Enquire
016 13F0762CP
BOLT - HOLLOW - M12
Row ID: ID__13F0762CP_ContPgHS; 		- 1 Enquire
017 12F0673CP
WASHER - SEAL - M12
Row ID: ID__12F0673CP_ContPgHS; 		- 8 Enquire
018 14F0828CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH
Row ID: ID__14F0828CP_ContPgHS; 		- 1 Enquire
019 11F2806CP
ORING-SEAL-16X2
Row ID: ID__11F2806CP_ContPgHS;
IN STOCK 		$7.09 2
020 13F0825CP
GASKET - PIPE - TURBO OIL DRAIN
Row ID: ID__13F0825CP_ContPgHS; 		- 2 Enquire
022 14F0540CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - LH
Row ID: ID__14F0540CP_ContPgHS; 		- 1 Enquire
023 14F0827CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH
Row ID: ID__14F0827CP_ContPgHS; 		- 1 Enquire
