23 - Engine - 23.1 - Cylinder Head & Valve Train

McLaren Ultimate Series McLaren Senna GTR

Find Your Part

McLaren Ultimate Series McLaren Senna GTR - 23 - ENGINE - 23.1 - CYLINDER HEAD & VALVE TRAIN

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

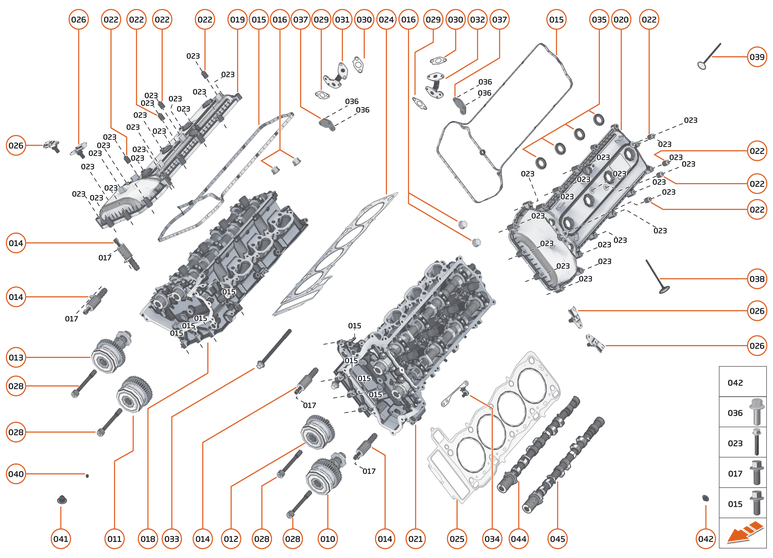

23 - ENGINE - 23.1 - CYLINDER HEAD & VALVE TRAIN of McLaren McLaren Ultimate Series McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11FA026CP
VALVE SHIM - REPAIR KIT
Row ID: ID__11FA026CP_ContPgHS; 		- - Enquire
000 11F1510CP
SHIM - VALVE LASH - 2.935
Row ID: ID__11F1510CP_ContPgHS; 		- - Enquire
000 11F1509CP
SHIM - VALVE LASH - 2.92
Row ID: ID__11F1509CP_ContPgHS; 		- - Enquire
000 11F1508CP
SHIM - VALVE LASH - 2.905
Row ID: ID__11F1508CP_ContPgHS; 		- - Enquire
000 11F1507CP
SHIM - VALVE LASH - 2.89
Row ID: ID__11F1507CP_ContPgHS; 		- - Enquire
000 11F1506CP
SHIM - VALVE LASH - 2.875
Row ID: ID__11F1506CP_ContPgHS; 		- - Enquire
000 11F1505CP
SHIM - VALVE LASH - 2.86
Row ID: ID__11F1505CP_ContPgHS; 		- - Enquire
000 11F1504CP
SHIM - VALVE LASH - 2.845
Row ID: ID__11F1504CP_ContPgHS; 		- - Enquire
000 11F1503CP
SHIM - VALVE LASH - 2.83
Row ID: ID__11F1503CP_ContPgHS; 		- - Enquire
000 11F1502CP
SHIM - VALVE LASH - 2.815
Row ID: ID__11F1502CP_ContPgHS; 		- - Enquire
000 11F1501CP
SHIM - VALVE LASH - 2.8
Row ID: ID__11F1501CP_ContPgHS; 		- - Enquire
000 11F1500CP
SHIM - VALVE LASH - 2.785
Row ID: ID__11F1500CP_ContPgHS; 		- - Enquire
000 11F1499CP
SHIM - VALVE LASH - 2.77
Row ID: ID__11F1499CP_ContPgHS; 		- - Enquire
000 11F1498CP
SHIM - VALVE LASH - 2.755
Row ID: ID__11F1498CP_ContPgHS; 		- - Enquire
000 11F1497CP
SHIM - VALVE LASH - 2.74
Row ID: ID__11F1497CP_ContPgHS; 		- - Enquire
000 11F1496CP
SHIM - VALVE LASH - 2.725
Row ID: ID__11F1496CP_ContPgHS; 		- - Enquire
000 11F1495CP
SHIM - VALVE LASH - 2.71
Row ID: ID__11F1495CP_ContPgHS; 		- - Enquire
000 11F1494CP
SHIM - VALVE LASH - 2.695
Row ID: ID__11F1494CP_ContPgHS; 		- - Enquire
000 11F1493CP
SHIM - VALVE LASH - 2.68
Row ID: ID__11F1493CP_ContPgHS; 		- - Enquire
010 13F0341CP
VCT - EXHAUST - LH
Row ID: ID__13F0341CP_ContPgHS; 		- 1 Enquire
011 13F0343CP
VCT - INTAKE - RH
Row ID: ID__13F0343CP_ContPgHS; 		- 1 Enquire
012 13F0345CP
VCT - INTAKE - LH
Row ID: ID__13F0345CP_ContPgHS; 		- 1 Enquire
013 13F0347CP
VCT - EXHAUST - RH
Row ID: ID__13F0347CP_ContPgHS; 		- 1 Enquire
014 11F2459CP
Solenoid - Engine Cam Phaser
Row ID: ID__11F2459CP_ContPgHS; 		- 4 Enquire
015 11F0824CP
BOLT - M6X30 - ENGINE
Row ID: ID__11F0824CP_ContPgHS; 		- - Enquire
016 13F0812CP
CAP - HEAD BOLT
Row ID: ID__13F0812CP_ContPgHS; 		- 4 Enquire
017 11F1778CP
BOLT - M5X16 - ENGINE - SOLENOID - ENGINE CAM PHASER
Row ID: ID__11F1778CP_ContPgHS; 		- - Enquire
018 14FA266CP
CYLINDER HEAD - ENGINE - ASSY - RH
Row ID: ID__14FA266CP_ContPgHS; 		- - Enquire
019 14FA263CP
ASSY CAM COVER RH
Row ID: ID__14FA263CP_ContPgHS; 		- 1 Enquire
020 14FA262CP
ASSY CAM COVER LH
Row ID: ID__14FA262CP_ContPgHS; 		- 1 Enquire
021 14FA265CP
CYLINDER HEAD - ENGINE - ASSY - LH
Row ID: ID__14FA265CP_ContPgHS; 		- - Enquire
022 11F2461CP
AV MOUNT - IGNITION COIL
Row ID: ID__11F2461CP_ContPgHS; 		- - Enquire
023 11F1777CP
BOLT - M6X40 - HEX
Row ID: ID__11F1777CP_ContPgHS; 		- 8 Enquire
024 14FA230CP
HEADGASKET KIT-INC BOLTS AND CAPS-RH
Row ID: ID__14FA230CP_ContPgHS; 		- - Enquire
025 14FA229CP
HEADGASKET KIT-INC BOLTS AND CAPS-LH
Row ID: ID__14FA229CP_ContPgHS; 		- - Enquire
026 11F0740CP
ENGINE CAM PHASE SENSOR
Row ID: ID__11F0740CP_ContPgHS; 		- - Enquire
028 11FA015CP

BOLT - VCT; Row ID: ID__11FA015CP_ContPgHS; 		- - Enquire
029 11F1970CP
GASKET - SECONDARY AIR - INJECTION PIPE TO ENGINE
Row ID: ID__11F1970CP_ContPgHS; 		- 2 Enquire
030 13F0360CP
SECONDARY AIR VALVE - ENGINE - INC GASKET
Row ID: ID__13F0360CP_ContPgHS; 		- 2 Enquire
031 13F0590CP
PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - RH
Row ID: ID__13F0590CP_ContPgHS; 		- 1 Enquire
032 13F0591CP
PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - LH
Row ID: ID__13F0591CP_ContPgHS; 		- 1 Enquire
033 11F1685CP
BOLT - CYLINDER HEAD INC. WASHER
Row ID: ID__11F1685CP_ContPgHS; 		- 20 Enquire
034 15FA231CP
BRACKET - CLEAN AIR DUCT TO ENGINE
Row ID: ID__15FA231CP_ContPgHS; 		- 2 Enquire
035 11F2500CP
GASKET - SPARK PLUG TUBE
Row ID: ID__11F2500CP_ContPgHS; 		- 4 Enquire
036 00RA313
SCREW - M6X16 - HEX - SILVER
Row ID: ID__00RA313_ContPgHS; 		- 4 Enquire
037 13FA008RP
BLANK - SAI
Row ID: ID__13FA008RP_ContPgHS; 		- 2 Enquire
038 11F1459CP
INTAKE VALVE-STD
Row ID: ID__11F1459CP_ContPgHS; 		- - Enquire
039 11F1452CP
EXHAUST VALVE-STD
Row ID: ID__11F1452CP_ContPgHS; 		- - Enquire
040 11F1979CP
SEAL- VALVE STEM
Row ID: ID__11F1979CP_ContPgHS; 		- - Enquire
041 11F1975CP

Color codes: COLLET; Row ID: ID__11F1975CP_ContPgHS; 		- - Enquire
042 11F1685CP
BOLT - CYLINDER HEAD INC. WASHER
Row ID: ID__11F1685CP_ContPgHS; 		- 20 Enquire
043 11F1977CP
RETAINER SPRING
Row ID: ID__11F1977CP_ContPgHS; 		- - Enquire
044 11F1123RP
CAMSHAFT-INLET LH
Row ID: ID__11F1123RP_ContPgHS; 		- - Enquire
045 11F1166RP
CAMSHAFT-INLET RH
Row ID: ID__11F1166RP_ContPgHS; 		- - Enquire
046 15FA179CP
CAMSHAFT-EXHAUST-LH
Row ID: ID__15FA179CP_ContPgHS; 		- - Enquire
047 15FA181CP
CAMSHAFT-EXHAUST-RH
Row ID: ID__15FA181CP_ContPgHS; 		- - Enquire
048 14F0799CP
CYLINDER HEAD BARE MC-XF-RH
Row ID: ID__14F0799CP_ContPgHS; 		- - Enquire
049 14F0800CP
CYLINDER HEAD BARE MC-XF-LH
Row ID: ID__14F0800CP_ContPgHS; 		- - Enquire
050 14FA198CP
HEAD GASKET KIT - INC. BOLTS - ENGINE - RH
Row ID: ID__14FA198CP_ContPgHS; 		- - Enquire
051 14FA199CP
HEAD GASKET KIT - INC. BOLTS - ENGINE - LH
Row ID: ID__14FA199CP_ContPgHS; 		- - Enquire
