42 - INTERIOR SYSTEMS - 42.9 - LOWER & REAR TRIM of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 42 - INTERIOR SYSTEMS - 42.9 - LOWER & REAR TRIM

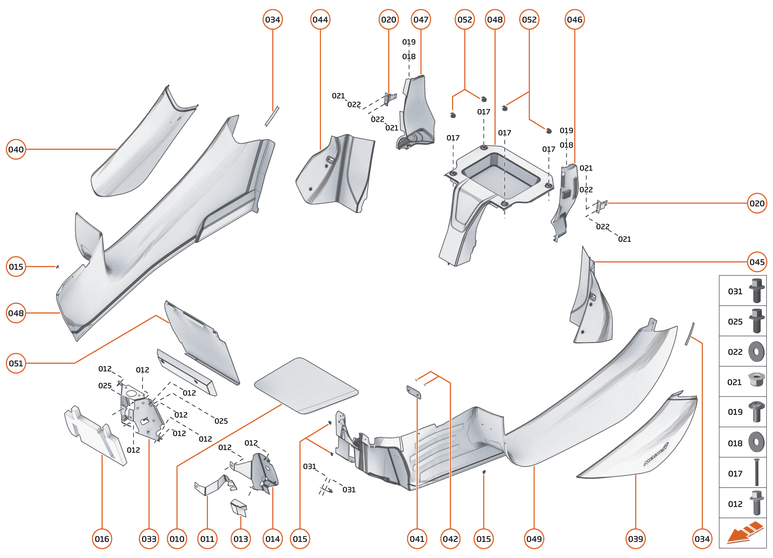

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12N0875CP	PROTECTIVE TAPE - FOOTWELL - DRIVER	12N0875CP PROTECTIVE TAPE - FOOTWELL - DRIVER Row ID: ID__12N0875CP_ContPgHS;	-	1	Enquire
011	11N1412CP	BRKT FOOTREST SUPPORT DRIVER	11N1412CP BRKT FOOTREST SUPPORT DRIVER Row ID: ID__11N1412CP_ContPgHS;	$165.70	1
012	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS;	-	3	Enquire
013	11N0643CP	FOOTREST - FOAM - LHD - DRIVER	11N0643CP FOOTREST - FOAM - LHD - DRIVER Row ID: ID__11N0643CP_ContPgHS;	-	1	Enquire
014	11N1491CP	Footrest - US - Driver	11N1491CP Footrest - US - Driver Row ID: ID__11N1491CP_ContPgHS;	-	1	Enquire
014	11N0975CP	FOOTREST - LHD - DRIVER	11N0975CP FOOTREST - LHD - DRIVER Row ID: ID__11N0975CP_ContPgHS;	-	1	Enquire
015	00RM006	ANIXTER RIVET - WHITE	00RM006 ANIXTER RIVET - WHITE Row ID: ID__00RM006_ContPgHS;	-	3	Enquire
016	11N2595CP	NVH PAD - PASSENGER FOOTREST - LHD	11N2595CP NVH PAD - PASSENGER FOOTREST - LHD Row ID: ID__11N2595CP_ContPgHS;	-	1	Enquire
017	00RA315	Screw - M4x25 - Countersunk	00RA315 Screw - M4x25 - Countersunk Row ID: ID__00RA315_ContPgHS;	-	4	Enquire
018	00RC118	WASHER - M6X14.4X2.4 - BLACK	00RC118 WASHER - M6X14.4X2.4 - BLACK Row ID: ID__00RC118_ContPgHS;	-	1	Enquire
019	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	1	Enquire
020	15NA361CP	BRACKET - BULKHEAD	15NA361CP BRACKET - BULKHEAD Row ID: ID__15NA361CP_ContPgHS;	-	1	Enquire
021	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS;	-	2	Enquire
022	00RC063	Washer - M5x20x1	00RC063 Washer - M5x20x1 Row ID: ID__00RC063_ContPgHS;	-	2	Enquire
025	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	2	Enquire
031	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS;	-	2	Enquire
033	11N0687CP	FOOTREST - SUPPORT - LHD - PASSENGER	11N0687CP FOOTREST - SUPPORT - LHD - PASSENGER Row ID: ID__11N0687CP_ContPgHS;	-	1	Enquire
034	11N2976CP	LABEL - CAUTION - DOOR RELEASE - LEATHER STRAP	11N2976CP LABEL - CAUTION - DOOR RELEASE - LEATHER STRAP Row ID: ID__11N2976CP_ContPgHS;	-	1	Enquire
035	15NA760CP	FUSEBOX ACCESS PANEL - INTERIOR - REST OF WORLD	15NA760CP FUSEBOX ACCESS PANEL - INTERIOR - REST OF WORLD Row ID: ID__15NA760CP_ContPgHS;	-	1	Enquire
039	14NB720CP	SILL COVER - LH	14NB720CP SILL COVER - LH Row ID: ID__14NB720CP_ContPgHS;	-	1	Enquire
040	14NB721CP	SILL COVER - RH	14NB721CP SILL COVER - RH Row ID: ID__14NB721CP_ContPgHS;	-	1	Enquire
041	15NA046RP	DEDICATION PLATE	15NA046RP DEDICATION PLATE Row ID: ID__15NA046RP_ContPgHS;	-	1	Enquire
042	00RA368	STARLOCK - DIAMETER 5MM SHAFT - 052675	00RA368 STARLOCK - DIAMETER 5MM SHAFT - 052675 Row ID: ID__00RA368_ContPgHS;	-	2	Enquire
043	15NA280CP	BULKHEAD - COVER - CENTRAL	15NA280CP BULKHEAD - COVER - CENTRAL Row ID: ID__15NA280CP_ContPgHS;	-	1	Enquire
044	15NA064RP	ASSY B PILLAR FINISHER LWR RH	15NA064RP ASSY B PILLAR FINISHER LWR RH Row ID: ID__15NA064RP_ContPgHS;	-	1	Enquire
045	15NA892CP	ASSY B PILLAR FINISHER LWR LH	15NA892CP ASSY B PILLAR FINISHER LWR LH Row ID: ID__15NA892CP_ContPgHS;	-	1	Enquire
046	15NA938CP	ASSY - BULKHEAD COVER LH	15NA938CP ASSY - BULKHEAD COVER LH Row ID: ID__15NA938CP_ContPgHS;	-	1	Enquire
047	15NA939CP	ASSY - BULKHEAD COVER RH	15NA939CP ASSY - BULKHEAD COVER RH Row ID: ID__15NA939CP_ContPgHS;	-	1	Enquire
048	15NA670CP	CARPET - TUB - SILL COVER - RHD - RH	15NA670CP CARPET - TUB - SILL COVER - RHD - RH Row ID: ID__15NA670CP_ContPgHS;	-	1	Enquire
048	15NA666CP	CARPET - TUB - SILL COVER - LHD - RH	15NA666CP CARPET - TUB - SILL COVER - LHD - RH Row ID: ID__15NA666CP_ContPgHS;	-	1	Enquire
049	15NA672CP	CARPET - TUB - SILL COVER - FED - LH	15NA672CP CARPET - TUB - SILL COVER - FED - LH Row ID: ID__15NA672CP_ContPgHS;	-	1	Enquire
049	15NA668CP	CARPET - TUB - SILL COVER - RHD - LH	15NA668CP CARPET - TUB - SILL COVER - RHD - LH Row ID: ID__15NA668CP_ContPgHS;	-	1	Enquire
049	15NA664CP	CARPET - TUB - SILL COVER - LHD - LH	15NA664CP CARPET - TUB - SILL COVER - LHD - LH Row ID: ID__15NA664CP_ContPgHS;	-	1	Enquire
049	15NA450CP	CARPET - TUB - FEDERAL - LH	15NA450CP CARPET - TUB - FEDERAL - LH Row ID: ID__15NA450CP_ContPgHS;	-	1	Enquire
049	15NA352CP	CARPET - TUB - RHD - LH	15NA352CP CARPET - TUB - RHD - LH Row ID: ID__15NA352CP_ContPgHS;	-	1	Enquire
049	15NA348CP	CARPET - TUB - RHD - LH	15NA348CP CARPET - TUB - RHD - LH Row ID: ID__15NA348CP_ContPgHS;	-	1	Enquire
049	15NA295CP	CARPET - TUB - LHD - LH	15NA295CP CARPET - TUB - LHD - LH Row ID: ID__15NA295CP_ContPgHS;	-	1	Enquire
049	15NA226CP	CARPET - TUB - LHD - LH	15NA226CP CARPET - TUB - LHD - LH Row ID: ID__15NA226CP_ContPgHS;	-	1	Enquire
051	11N2648CP	Footrest - US - Passenger	11N2648CP Footrest - US - Passenger Row ID: ID__11N2648CP_ContPgHS;	-	1	Enquire
051	11N2647CP	Footrest - RHD - Passenger	11N2647CP Footrest - RHD - Passenger Row ID: ID__11N2647CP_ContPgHS;	-	1	Enquire
051	11N2646CP	Footrest - LHD - Passenger	11N2646CP Footrest - LHD - Passenger Row ID: ID__11N2646CP_ContPgHS;	-	1	Enquire
052	11N2282CP	Hook - Stowage Net	11N2282CP Hook - Stowage Net Row ID: ID__11N2282CP_ContPgHS;	-	4	Enquire
