42 - INTERIOR SYSTEMS - 42.4 - ASSY TUNNEL CONSOLE - COMPONENTS & HARDWARE of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 42 - INTERIOR SYSTEMS - 42.4 - ASSY TUNNEL CONSOLE - COMPONENTS & HARDWARE

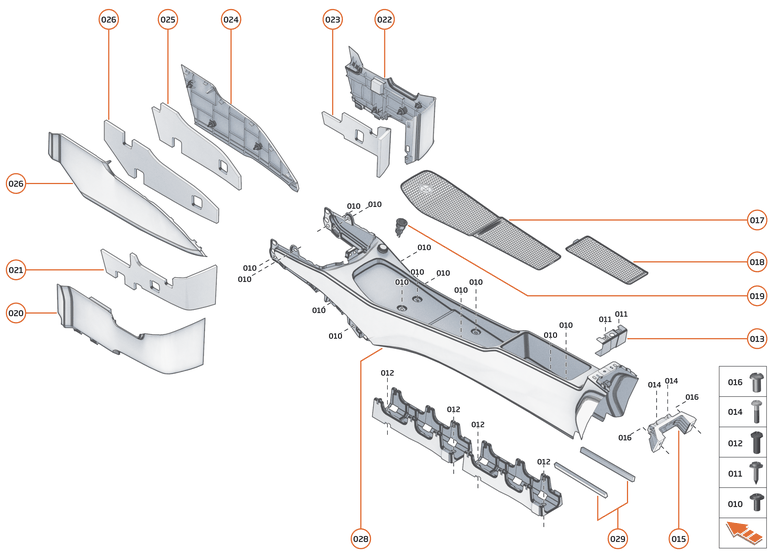

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	14	Enquire
011	00RA112	TORX SCREW-WASHER 4.2X16	00RA112 TORX SCREW-WASHER 4.2X16 Row ID: ID__00RA112_ContPgHS;	-	2	Enquire
012	00RA081	SCREW - TORX - PAN - M6X16-8.8	00RA081 SCREW - TORX - PAN - M6X16-8.8 Row ID: ID__00RA081_ContPgHS;	-	4	Enquire
013	15NA411CP	BRACKET - TUNNEL - REAR	15NA411CP BRACKET - TUNNEL - REAR Row ID: ID__15NA411CP_ContPgHS;	-	1	Enquire
014	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Row ID: ID__00RA522_ContPgHS;	-	2	Enquire
015	11N0793CP	BRKT-BIN SUPPORT-RR	11N0793CP BRKT-BIN SUPPORT-RR Row ID: ID__11N0793CP_ContPgHS;	$66.36	1
016	00RA071	SCREW - M6X16 - BUTTON	00RA071 SCREW - M6X16 - BUTTON Row ID: ID__00RA071_ContPgHS;	-	2	Enquire
017	15NA277CP	MAT - TUNNEL STOWAGE - FRONT	15NA277CP MAT - TUNNEL STOWAGE - FRONT Row ID: ID__15NA277CP_ContPgHS;	-	1	Enquire
018	15NA278CP	MAT - TUNNEL - REAR	15NA278CP MAT - TUNNEL - REAR Row ID: ID__15NA278CP_ContPgHS;	-	1	Enquire
019	11N0965CP	ACCESSORY SOCKET - 12V	11N0965CP ACCESSORY SOCKET - 12V Row ID: ID__11N0965CP_ContPgHS;	-	1	Enquire
020	14NB788CP	ASSY TUNNEL FRONT LH - LHD	14NB788CP ASSY TUNNEL FRONT LH - LHD Row ID: ID__14NB788CP_ContPgHS;	-	1	Enquire
021	14NB569CP	NVH PAD TUNNEL FRONT LH	14NB569CP NVH PAD TUNNEL FRONT LH Row ID: ID__14NB569CP_ContPgHS;	-	-	Enquire
022	14NB793CP	ASSY TUNNEL FRONT RH - LHD	14NB793CP ASSY TUNNEL FRONT RH - LHD Row ID: ID__14NB793CP_ContPgHS;	-	1	Enquire
023	14NB570CP	NVH PAD TUNNEL FRONT RH	14NB570CP NVH PAD TUNNEL FRONT RH Row ID: ID__14NB570CP_ContPgHS;	-	-	Enquire
024	15NA066RP	ASSY SIDEPANEL FRONT RH	15NA066RP ASSY SIDEPANEL FRONT RH Row ID: ID__15NA066RP_ContPgHS;	-	1	Enquire
026	15NA065RP	ASSY SIDEPANEL FRONT LH	15NA065RP ASSY SIDEPANEL FRONT LH Row ID: ID__15NA065RP_ContPgHS;	-	1	Enquire
028	15NA927CP	ARMATURE - TUNNEL	15NA927CP ARMATURE - TUNNEL Row ID: ID__15NA927CP_ContPgHS;	-	1	Enquire
029	13A5839CP	FOAM SUPPORT-LUGGAGE BIN LIP	13A5839CP FOAM SUPPORT-LUGGAGE BIN LIP Row ID: ID__13A5839CP_ContPgHS;	-	-	Enquire
