42 - INTERIOR SYSTEMS - 42.10 - UPPER TRIM of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 42 - INTERIOR SYSTEMS - 42.10 - UPPER TRIM

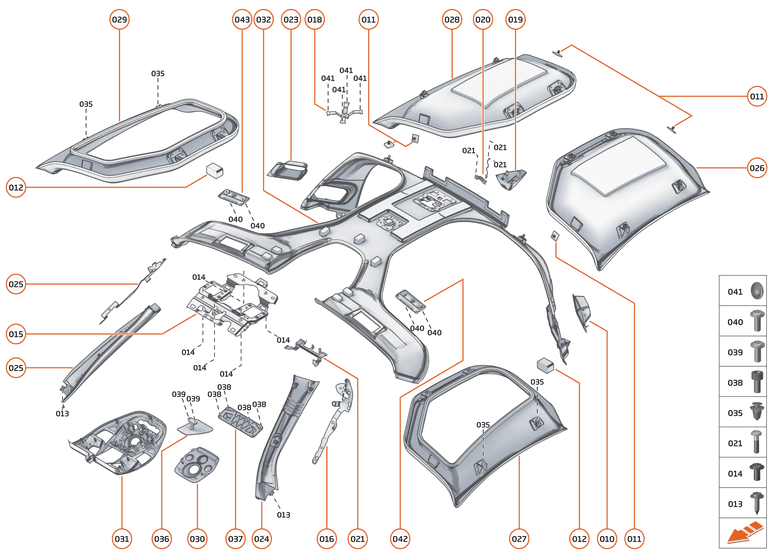

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15NA116CP	ESCUTCHEON - SEATBELT - LH	15NA116CP ESCUTCHEON - SEATBELT - LH Row ID: ID__15NA116CP_ContPgHS;	-	1	Enquire
011	13N2702CP	3M - HEADLINER CLIP - SJ3749	13N2702CP 3M - HEADLINER CLIP - SJ3749 Row ID: ID__13N2702CP_ContPgHS;	-	1	Enquire
012	14AC506CP	REINFORCEMENT FOAM - DOOR APPLIQUE	14AC506CP REINFORCEMENT FOAM - DOOR APPLIQUE Row ID: ID__14AC506CP_ContPgHS;	-	1	Enquire
013	00RA330	SCREW - NR8X19 - FLANGE	00RA330 SCREW - NR8X19 - FLANGE Row ID: ID__00RA330_ContPgHS;	-	1	Enquire
014	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	5	Enquire
015	15NA130CP	BRACKET - CONTROL UNIT - ROOF	15NA130CP BRACKET - CONTROL UNIT - ROOF Row ID: ID__15NA130CP_ContPgHS;	-	1	Enquire
016	14NB753CP	BRACKET - A PILLAR - UPPER - LH	14NB753CP BRACKET - A PILLAR - UPPER - LH Row ID: ID__14NB753CP_ContPgHS;	-	1	Enquire
016	14NB123CP	BRACKET - A PILLAR - UPPER - LH	14NB123CP BRACKET - A PILLAR - UPPER - LH Row ID: ID__14NB123CP_ContPgHS;	-	1	Enquire
017	14NB754CP	BRACKET - A PILLAR - UPPER - RH	14NB754CP BRACKET - A PILLAR - UPPER - RH Row ID: ID__14NB754CP_ContPgHS;	-	1	Enquire
017	14NB121CP	BRACKET - A PILLAR - UPPER - RH	14NB121CP BRACKET - A PILLAR - UPPER - RH Row ID: ID__14NB121CP_ContPgHS;	-	1	Enquire
018	14NA645CP	BRACKET - HEADLINER - CENTRE	14NA645CP BRACKET - HEADLINER - CENTRE Row ID: ID__14NA645CP_ContPgHS;	-	1	Enquire
019	15NA062RP	MOULDING HEADLINER CAMERA BEZE	15NA062RP MOULDING HEADLINER CAMERA BEZE Row ID: ID__15NA062RP_ContPgHS;	-	1	Enquire
020	15NA100RP	CLAMP VBOX CAMERA REAR	15NA100RP CLAMP VBOX CAMERA REAR Row ID: ID__15NA100RP_ContPgHS;	-	1	Enquire
021	00RA464	SCREW - M4X12 - BUTTON HEAD - SOCKET	00RA464 SCREW - M4X12 - BUTTON HEAD - SOCKET Row ID: ID__00RA464_ContPgHS;	-	2	Enquire
021	ZZTA020QP	M4X16 UNBRAKO SHCS	ZZTA020QP M4X16 UNBRAKO SHCS Row ID: ID__ZZTA020QP_ContPgHS;	-	2	Enquire
022	15NA440CP	BRACKET - BASE DBE	15NA440CP BRACKET - BASE DBE Row ID: ID__15NA440CP_ContPgHS;	-	1	Enquire
023	15NA123CP	ESCUTCHEON - SEATBELT - RH	15NA123CP ESCUTCHEON - SEATBELT - RH Row ID: ID__15NA123CP_ContPgHS;	-	1	Enquire
024	14N0199CP	A PILLAR - FINISHER - LH	14N0199CP A PILLAR - FINISHER - LH Row ID: ID__14N0199CP_ContPgHS;	-	1	Enquire
025	14N0203CP	A PILLAR - FINISHER - RH	14N0203CP A PILLAR - FINISHER - RH Row ID: ID__14N0203CP_ContPgHS;	-	1	Enquire
026	14NB212CP	HEADLINING - STANDARD DOOR UPPER - LH	14NB212CP HEADLINING - STANDARD DOOR UPPER - LH Row ID: ID__14NB212CP_ContPgHS;	-	1	Enquire
027	14NB218CP	HEADLINING - GLAZED DOOR UPPER - LH	14NB218CP HEADLINING - GLAZED DOOR UPPER - LH Row ID: ID__14NB218CP_ContPgHS;	-	1	Enquire
028	14NB215CP	HEADLINING - STANDARD DOOR UPPER - RH	14NB215CP HEADLINING - STANDARD DOOR UPPER - RH Row ID: ID__14NB215CP_ContPgHS;	-	1	Enquire
029	14NB222CP	HEADLINING - GLAZED DOOR UPPER - RH	14NB222CP HEADLINING - GLAZED DOOR UPPER - RH Row ID: ID__14NB222CP_ContPgHS;	-	1	Enquire
030	15NA048RP	COVER DBE STRT STP SWITCH	15NA048RP COVER DBE STRT STP SWITCH Row ID: ID__15NA048RP_ContPgHS;	-	1	Enquire
030	15NA234CP	CONTROL UNIT - ROOF - COVER	15NA234CP CONTROL UNIT - ROOF - COVER Row ID: ID__15NA234CP_ContPgHS;	-	1	Enquire
031	15NA812CP	BEZEL - DBE	15NA812CP BEZEL - DBE Row ID: ID__15NA812CP_ContPgHS;	-	1	Enquire
032	15NA804CP	HEADLINING - CENTRE - CAMERA	15NA804CP HEADLINING - CENTRE - CAMERA Row ID: ID__15NA804CP_ContPgHS;	-	1	Enquire
032	15NA803CP	HEADLINING - CENTRE	15NA803CP HEADLINING - CENTRE Row ID: ID__15NA803CP_ContPgHS;	-	1	Enquire
035	00RB017	CLIP - RAYMOND - 18.526.631	00RB017 CLIP - RAYMOND - 18.526.631 Row ID: ID__00RB017_ContPgHS;	-	-	Enquire
036	15NA049RP	COVER DBE WINDOW SWITCH	15NA049RP COVER DBE WINDOW SWITCH Row ID: ID__15NA049RP_ContPgHS;	-	1	Enquire
037	15NA110RP	COVER DBE BEZEL LIGHTS	15NA110RP COVER DBE BEZEL LIGHTS Row ID: ID__15NA110RP_ContPgHS;	-	1	Enquire
038	00RA140	SCREW - 3X8 - TORX	00RA140 SCREW - 3X8 - TORX Row ID: ID__00RA140_ContPgHS;	-	4	Enquire
039	00RA256	Screw - M4x8 - Button	00RA256 Screw - M4x8 - Button Row ID: ID__00RA256_ContPgHS;	-	2	Enquire
040	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID__00RA398_ContPgHS;	-	4	Enquire
041	14NA729CP	3M BUMPON SJ5302 2MM	14NA729CP 3M BUMPON SJ5302 2MM Row ID: ID__14NA729CP_ContPgHS;	-	-	Enquire
042	15NA010RP	COVER SUNVISOR LH	15NA010RP COVER SUNVISOR LH Row ID: ID__15NA010RP_ContPgHS;	-	-	Enquire
043	15NA011RP	COVER SUNVISOR RH	15NA011RP COVER SUNVISOR RH Row ID: ID__15NA011RP_ContPgHS;	-	-	Enquire
