48 - INFOTAINMENT - 48.3 - ANTENNA SYSTEM of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 48 - INFOTAINMENT - 48.3 - ANTENNA SYSTEM

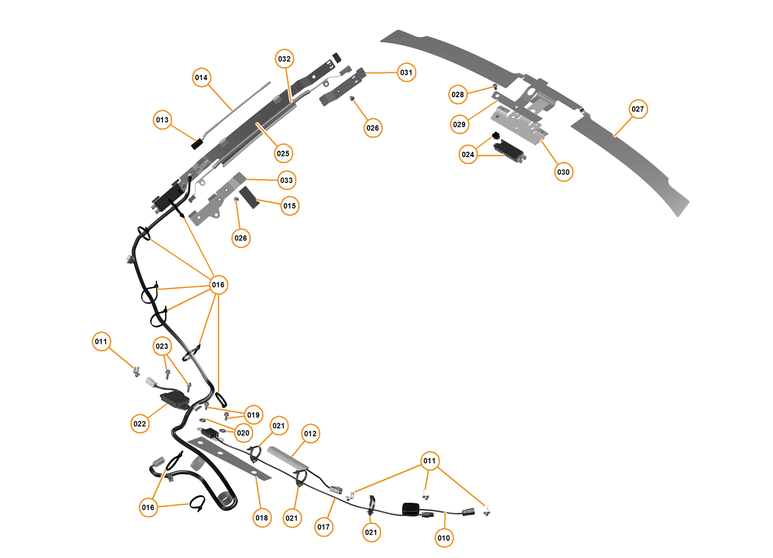

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11M0066CP	ANTENNA - SATELLITE TRACKING - VDL - GPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0555CP	CONNECTOR HOLDER - SINGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M1076CP	ANTENNA - SATELLITE TRACKING - GSM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0776CP	ANTENNA - SATELLITE TRACKING - RF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M1928CP	Cable Extension - Antenna - Satellite Tracking - RF - RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL004		Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL012	CABLE TIE - 300X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0438CP	Antenna - GPS - Navigation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0412CP	Ground Plane - GPS Antenna	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC017	WASHER - M5X15X1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0506CP	Antenna - Wireless LAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA063	Screw - M5x16 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0454CP	ANTENNA - AM/FM AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0638CP	Ground Plane - AM-FM Antenna - A Pillar - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA142	SCREW - M6X8 - BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0630CP	Header - Ground Plane - AM-FM Antenna	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA116	SCREW - M6X10 - BUTTON - 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0634CP	Ground Plane - AM-FM Amplifier - Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0632CP	Bracket - AM-FM Amplifier - Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0649CP	Bracket - AM-FM Eylet - A Pillar - Upper - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0654CP	Link Lead - AM/FM Amplifier - Antenna - A Pillar - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0643CP	Bracket - AM-FM Amplifier - A Pillar - RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11M0066CP	ANTENNA - SATELLITE TRACKING - VDL - GPS	11M0066CP ANTENNA - SATELLITE TRACKING - VDL - GPS Row ID: ID_BGME0301_11M0066CP_ContPgHS;	-	1	Enquire
011	12M0555CP	CONNECTOR HOLDER - SINGLE	12M0555CP CONNECTOR HOLDER - SINGLE Row ID: ID_BGME0302_12M0555CP_ContPgHS;	-	4	Enquire
012	11M1076CP	ANTENNA - SATELLITE TRACKING - GSM	11M1076CP ANTENNA - SATELLITE TRACKING - GSM Row ID: ID_BGME0303_11M1076CP_ContPgHS;	-	1	Enquire
013	11M0776CP	ANTENNA - SATELLITE TRACKING - RF	11M0776CP ANTENNA - SATELLITE TRACKING - RF Row ID: ID_BGME0304_11M0776CP_ContPgHS;	-	1	Enquire
014	11M1928CP	Cable Extension - Antenna - Satellite Tracking - RF - RHD	11M1928CP Cable Extension - Antenna - Satellite Tracking - RF - RHD Row ID: ID_BGME0305_11M1928CP_ContPgHS;	-	1	Enquire
015	00RL004		00RL004 Felt Tape; Row ID: ID_BGME0306_00RL004_ContPgHS;	-	1	Enquire
016	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID_BGME0307_00RL012_ContPgHS;	-	8	Enquire
017	11M0438CP	Antenna - GPS - Navigation	11M0438CP Antenna - GPS - Navigation Row ID: ID_BGME0308_11M0438CP_ContPgHS;	-	1	Enquire
018	12M0412CP	Ground Plane - GPS Antenna	12M0412CP Ground Plane - GPS Antenna Row ID: ID_BGME0309_12M0412CP_ContPgHS;	-	1	Enquire
019	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_BGME0310_00RA064_ContPgHS;	-	2	Enquire
020	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID_BGME0311_00RC017_ContPgHS;	-	2	Enquire
021	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID_BGME0312_00RL001_ContPgHS;	-	3	Enquire
022	11M0506CP	Antenna - Wireless LAN	11M0506CP Antenna - Wireless LAN Row ID: ID_BGME0313_11M0506CP_ContPgHS;	-	1	Enquire
023	00RA063	Screw - M5x16 - Hex	00RA063 Screw - M5x16 - Hex Row ID: ID_BGME0314_00RA063_ContPgHS;	-	2	Enquire
024	11M0454CP	ANTENNA - AM/FM AMPLIFIER	11M0454CP ANTENNA - AM/FM AMPLIFIER Row ID: ID_BGME0315_11M0454CP_ContPgHS;	-	2	Enquire
025	12M0638CP	Ground Plane - AM-FM Antenna - A Pillar - RH	12M0638CP Ground Plane - AM-FM Antenna - A Pillar - RH Row ID: ID_BGME0316_12M0638CP_ContPgHS;	-	1	Enquire
026	00RA142	SCREW - M6X8 - BUTTON	00RA142 SCREW - M6X8 - BUTTON Row ID: ID_BGME0317_00RA142_ContPgHS;	-	3	Enquire
027	12M0630CP	Header - Ground Plane - AM-FM Antenna	12M0630CP Header - Ground Plane - AM-FM Antenna Row ID: ID_BGME0318_12M0630CP_ContPgHS;	-	1	Enquire
028	00RA116	SCREW - M6X10 - BUTTON - 8.8	00RA116 SCREW - M6X10 - BUTTON - 8.8 Row ID: ID_BGME0319_00RA116_ContPgHS;	-	1	Enquire
029	12M0634CP	Ground Plane - AM-FM Amplifier - Centre	12M0634CP Ground Plane - AM-FM Amplifier - Centre Row ID: ID_BGME0320_12M0634CP_ContPgHS;	-	1	Enquire
030	12M0632CP	Bracket - AM-FM Amplifier - Centre	12M0632CP Bracket - AM-FM Amplifier - Centre Row ID: ID_BGME0321_12M0632CP_ContPgHS;	-	1	Enquire
031	12M0649CP	Bracket - AM-FM Eylet - A Pillar - Upper - RH	12M0649CP Bracket - AM-FM Eylet - A Pillar - Upper - RH Row ID: ID_BGME0322_12M0649CP_ContPgHS;	-	1	Enquire
032	12M0654CP	Link Lead - AM/FM Amplifier - Antenna - A Pillar - RH	12M0654CP Link Lead - AM/FM Amplifier - Antenna - A Pillar - RH Row ID: ID_BGME0323_12M0654CP_ContPgHS;	-	1	Enquire
033	12M0643CP	Bracket - AM-FM Amplifier - A Pillar - RH	12M0643CP Bracket - AM-FM Amplifier - A Pillar - RH Row ID: ID_BGME0324_12M0643CP_ContPgHS;	-	1	Enquire
