45 - WIRING HARNESS - 45.2 - BODY WIRING HARNESS of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 45 - WIRING HARNESS - 45.2 - BODY WIRING HARNESS

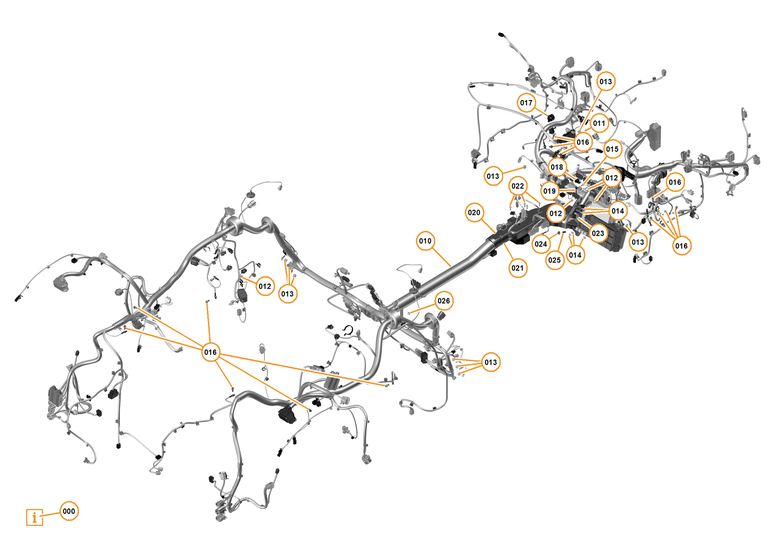

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA263	SCREW - M6X20 - BUTTON	Enquire	To Order
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order
	00RL004		Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	12M0929CP	Wiring Harness - Body	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA054	Nut - M5 - Lock Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA075	NUT - M8-8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA087	SCREW - M5X10 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA239	SCREW - M6X16 - LOCK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB085	P-CLIP - NORMA - DIA 25X15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB098	P-CLIP - DIA 10 - SILICONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL012	CABLE TIE - 300X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0776CP	Tray - Body Harness - Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0777CP	Tray - Body Harness - Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0557CP	Bracket - Fusebox - Retention	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0800CP	Nut - M6x1.0 Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0801CP	Cap - Insulation 4x20mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA511	Nut - M6 - Locking - Hex Flange - Copper Plate	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA263	SCREW - M6X20 - BUTTON	00RA263 SCREW - M6X20 - BUTTON Row ID: ID_BGMA0217_00RA263_ContPgHS;	-	1	Enquire
000	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID_BGMA0220_00RL001_ContPgHS;	-	2	Enquire
000	00RL004		00RL004 Felt Tape; Row ID: ID_BGMA0219_00RL004_ContPgHS;	-	1	Enquire
000	00RL013	CABLE TIE - 360X4.8MM	00RL013 CABLE TIE - 360X4.8MM Row ID: ID_BGMA0218_00RL013_ContPgHS;	-	2	Enquire
010	12M0929CP	Wiring Harness - Body	12M0929CP Wiring Harness - Body Row ID: ID_BGMA0201_12M0929CP_ContPgHS;	-	1	Enquire
011	00RA054	Nut - M5 - Lock Hex	00RA054 Nut - M5 - Lock Hex Row ID: ID_BGMA0202_00RA054_ContPgHS;	-	1	Enquire
012	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_BGMA0203_00RA055_ContPgHS;	-	5	Enquire
013	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID_BGMA0204_00RA075_ContPgHS;	-	9	Enquire
014	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID_BGMA0205_00RA087_ContPgHS;	-	12	Enquire
015	00RA239	SCREW - M6X16 - LOCK HEX	00RA239 SCREW - M6X16 - LOCK HEX Row ID: ID_BGMA0206_00RA239_ContPgHS;	-	1	Enquire
016	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_BGMA0207_00RA313_ContPgHS;	-	15	Enquire
017	00RB085	P-CLIP - NORMA - DIA 25X15	00RB085 P-CLIP - NORMA - DIA 25X15 Row ID: ID_BGMA0208_00RB085_ContPgHS;	-	1	Enquire
018	00RB098	P-CLIP - DIA 10 - SILICONE	00RB098 P-CLIP - DIA 10 - SILICONE Row ID: ID_BGMA0209_00RB098_ContPgHS;	-	1	Enquire
019	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID_BGMA0210_00RL012_ContPgHS;	-	4	Enquire
020	12M0776CP	Tray - Body Harness - Upper	12M0776CP Tray - Body Harness - Upper Row ID: ID_BGMA0211_12M0776CP_ContPgHS;	-	1	Enquire
021	12M0777CP	Tray - Body Harness - Lower	12M0777CP Tray - Body Harness - Lower Row ID: ID_BGMA0212_12M0777CP_ContPgHS;	-	1	Enquire
022	00RA063	Screw - M5x16 - Hex	00RA063 Screw - M5x16 - Hex Row ID: ID_BGMA0213_00RA063_ContPgHS;	-	4	Enquire
023	12M0557CP	Bracket - Fusebox - Retention	12M0557CP Bracket - Fusebox - Retention Row ID: ID_BGMA0214_12M0557CP_ContPgHS;	-	1	Enquire
024	12M0800CP	Nut - M6x1.0 Flange	12M0800CP Nut - M6x1.0 Flange Row ID: ID_BGMA0215_12M0800CP_ContPgHS;	-	1	Enquire
025	12M0801CP	Cap - Insulation 4x20mm	12M0801CP Cap - Insulation 4x20mm Row ID: ID_BGMA0216_12M0801CP_ContPgHS;	-	1	Enquire
026	00RA511	Nut - M6 - Locking - Hex Flange - Copper Plate	00RA511 Nut - M6 - Locking - Hex Flange - Copper Plate Row ID: ID_BGMA0221_00RA511_ContPgHS;	-	1	Enquire
