46 - ELECTRICAL SYSTEMS - 46.4 - ALARM SYSTEM of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 46 - ELECTRICAL SYSTEMS - 46.4 - ALARM SYSTEM

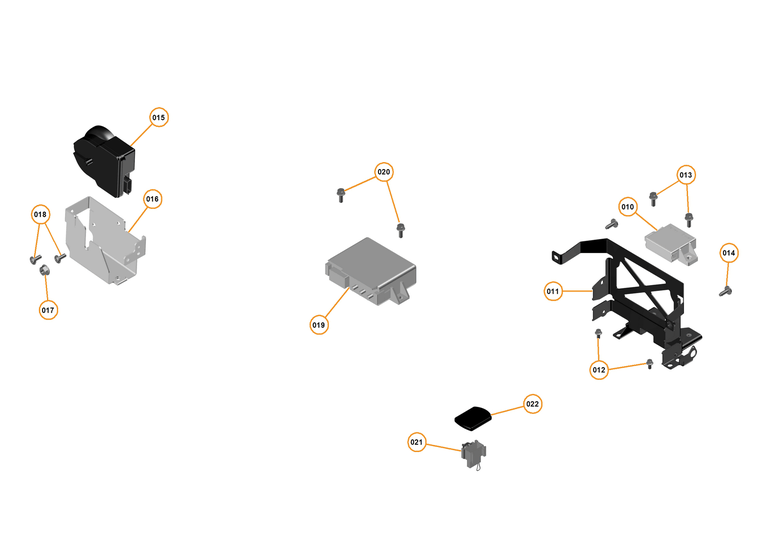

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11M1077CP	SENSOR - ALARM ANTI-TOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0513CP	Bracket - Sensor - Alarm Anti-tow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA087	SCREW - M5X10 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA299	Bolt - M6x16 - Locking Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA352	EJOT ALT SPEC 60 M2418 SCR TOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M1927CP	CONTROL UNIT - ALARM & SIREN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0613CP	Bracket - Control Unit - Alarm & Siren	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA075	NUT - M8-8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0852CP	Control Unit - Satellite Tracking Alarm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0933CP	CONNECTOR-SAT TRACKING-CRANK	$120.83	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0777CP	DRIVER CARD - SATELLITE TRACKING - RF	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11M1077CP	SENSOR - ALARM ANTI-TOW	11M1077CP SENSOR - ALARM ANTI-TOW Row ID: ID_BGMB0401_11M1077CP_ContPgHS;	-	1	Enquire
011	12M0513CP	Bracket - Sensor - Alarm Anti-tow	12M0513CP Bracket - Sensor - Alarm Anti-tow Row ID: ID_BGMB0402_12M0513CP_ContPgHS;	-	1	Enquire
012	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID_BGMB0403_00RA087_ContPgHS;	-	2	Enquire
013	00RA299	Bolt - M6x16 - Locking Hex	00RA299 Bolt - M6x16 - Locking Hex Row ID: ID_BGMB0404_00RA299_ContPgHS;	-	2	Enquire
014	00RA352	EJOT ALT SPEC 60 M2418 SCR TOR	00RA352 EJOT ALT SPEC 60 M2418 SCR TOR Row ID: ID_BGMB0405_00RA352_ContPgHS;	-	2	Enquire
015	11M1927CP	CONTROL UNIT - ALARM & SIREN	11M1927CP CONTROL UNIT - ALARM & SIREN Row ID: ID_BGMB0406_11M1927CP_ContPgHS;	-	1	Enquire
016	12M0613CP	Bracket - Control Unit - Alarm & Siren	12M0613CP Bracket - Control Unit - Alarm & Siren Row ID: ID_BGMB0407_12M0613CP_ContPgHS;	-	1	Enquire
017	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID_BGMB0408_00RA075_ContPgHS;	-	1	Enquire
018	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID_BGMB0409_00RA409_ContPgHS;	-	2	Enquire
019	12M0852CP	Control Unit - Satellite Tracking Alarm	12M0852CP Control Unit - Satellite Tracking Alarm Row ID: ID_BGMB0410_12M0852CP_ContPgHS;	-	1	Enquire
020	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID_BGMB0411_00RA061_ContPgHS;	-	2	Enquire
021	11M0933CP	CONNECTOR-SAT TRACKING-CRANK	11M0933CP CONNECTOR-SAT TRACKING-CRANK Row ID: ID_BGMB0412_11M0933CP_ContPgHS;	$120.83	1
022	11M0777CP	DRIVER CARD - SATELLITE TRACKING - RF	11M0777CP DRIVER CARD - SATELLITE TRACKING - RF Row ID: ID_BGMB0413_11M0777CP_ContPgHS;	-	1	Enquire
