Find Your Part

5 - CLOSURES - 5.7 - SIDE MIRRORS of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 5 - CLOSURES - 5.7 - SIDE MIRRORS

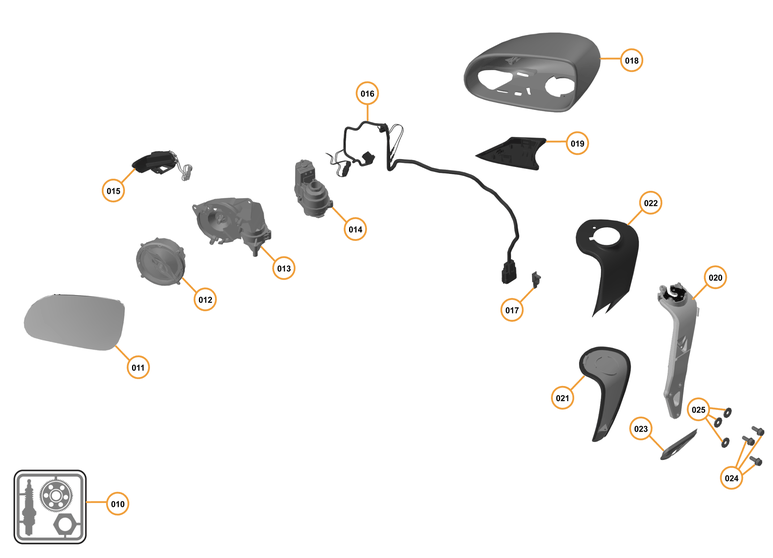

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12A3461CP	Door Mirror - Visual Carbon - China - LH	Enquire	To Order
	12A3458CP	Door Mirror - For Paint - China - LH	Enquire	To Order
	12A3455CP	Door Mirror - Visual Carbon - China - RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11A8431CP	Mirror Glass Assembly - Saudi Arabian Script - Convex - RH	Enquire	To Order
	11A8443CP	Mirror Glass Assembly - Saudi Arabian Script - Convex - LH	Enquire	To Order
	11A8427CP	Mirror Glass Assembly - North American Script - Convex - RH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11A8446CP	ACTUATOR - DOOR MIRROR GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A8454CP	FRAME - DOOR MIRROR GLASS - LH	Enquire	To Order
	11A8453CP	FRAME - DOOR MIRROR GLASS - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A8456CP	MOTOR - DOOR MIRROR GLASS - LH	Enquire	To Order
	11A8455CP	MOTOR - DOOR MIRROR GLASS - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A6480CP	Side Repeater - Mirror Mounted - LH	Enquire	To Order
	11A6479CP	Side Repeater - Mirror Mounted - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A8448CP	Wiring Harrness - Door Mirror - Memory - LH	Enquire	To Order
	11A8447CP	Wiring Harrness - Door Mirror - Memory - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB059	CLIP CONNECTOR - TRW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A8452CP	SCALP CARBON LH	Enquire	To Order
	11A8451CP	Scalp - Painted - LH	Enquire	To Order
	11A8450CP	SCALP CARBON RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11A8417CP	SCALP - LOWER - UNPAINTED - LH	Enquire	To Order
	11A8416CP	SCALP - LOWER - UNPAINTED - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3465CP	Base - Door Mirror - LH	Enquire	To Order
	12A3464CP	Base - Door Mirror - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3467CP	Cover - Door Mirror Base - Lower - LH	Enquire	To Order
	12A3466CP	Cover - Door Mirror Base - Lower - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3469CP	Cover - Door Mirror Base - Upper - LH	Enquire	To Order
	12A3468CP	Cover - Door Mirror Base - Upper - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3471CP	Gasket - Door Mirror - LH	Enquire	To Order
	12A3470CP	Gasket - Door Mirror - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12A3461CP	Door Mirror - Visual Carbon - China - LH	12A3461CP Door Mirror - Visual Carbon - China - LH Row ID: ID_BBAF0941_12A3461CP_ContPgHS;	-	1	Enquire
010	12A3458CP	Door Mirror - For Paint - China - LH	12A3458CP Door Mirror - For Paint - China - LH Row ID: ID_BBAF0940_12A3458CP_ContPgHS;	-	1	Enquire
010	12A3455CP	Door Mirror - Visual Carbon - China - RH	12A3455CP Door Mirror - Visual Carbon - China - RH Row ID: ID_BBAF0939_12A3455CP_ContPgHS;	-	1	Enquire
010	12A3452CP	Door Mirror - For Paint - China - RH	12A3452CP Door Mirror - For Paint - China - RH Row ID: ID_BBAF0938_12A3452CP_ContPgHS;	-	1	Enquire
011	11A8431CP	Mirror Glass Assembly - Saudi Arabian Script - Convex - RH	11A8431CP Mirror Glass Assembly - Saudi Arabian Script - Convex - RH Row ID: ID_BBAF0924_11A8431CP_ContPgHS;	-	1	Enquire
011	11A8443CP	Mirror Glass Assembly - Saudi Arabian Script - Convex - LH	11A8443CP Mirror Glass Assembly - Saudi Arabian Script - Convex - LH Row ID: ID_BBAF0921_11A8443CP_ContPgHS;	-	1	Enquire
011	11A8427CP	Mirror Glass Assembly - North American Script - Convex - RH	11A8427CP Mirror Glass Assembly - North American Script - Convex - RH Row ID: ID_BBAF0923_11A8427CP_ContPgHS;	-	1	Enquire
011	11A8439CP	Mirror Glass Assembly - North American Script - Flat - LH	11A8439CP Mirror Glass Assembly - North American Script - Flat - LH Row ID: ID_BBAF0920_11A8439CP_ContPgHS;	-	1	Enquire
011	11A8423CP	Mirror Glass Assembly - Convex - RH	11A8423CP Mirror Glass Assembly - Convex - RH Row ID: ID_BBAF0922_11A8423CP_ContPgHS;	-	1	Enquire
011	11A8435CP	Mirror Glass Assembly - Convex - LH	11A8435CP Mirror Glass Assembly - Convex - LH Row ID: ID_BBAF0919_11A8435CP_ContPgHS;	-	1	Enquire
012	11A8446CP	ACTUATOR - DOOR MIRROR GLASS	11A8446CP ACTUATOR - DOOR MIRROR GLASS Row ID: ID_BBAF0942_11A8446CP_ContPgHS;	-	2	Enquire
013	11A8454CP	FRAME - DOOR MIRROR GLASS - LH	11A8454CP FRAME - DOOR MIRROR GLASS - LH Row ID: ID_BBAF0944_11A8454CP_ContPgHS;	-	1	Enquire
013	11A8453CP	FRAME - DOOR MIRROR GLASS - RH	11A8453CP FRAME - DOOR MIRROR GLASS - RH Row ID: ID_BBAF0943_11A8453CP_ContPgHS;	-	1	Enquire
014	11A8456CP	MOTOR - DOOR MIRROR GLASS - LH	11A8456CP MOTOR - DOOR MIRROR GLASS - LH Row ID: ID_BBAF0946_11A8456CP_ContPgHS;	-	1	Enquire
014	11A8455CP	MOTOR - DOOR MIRROR GLASS - RH	11A8455CP MOTOR - DOOR MIRROR GLASS - RH Row ID: ID_BBAF0945_11A8455CP_ContPgHS;	-	1	Enquire
015	11A6480CP	Side Repeater - Mirror Mounted - LH	11A6480CP Side Repeater - Mirror Mounted - LH Row ID: ID_BBAF0925_11A6480CP_ContPgHS;	-	1	Enquire
015	11A6479CP	Side Repeater - Mirror Mounted - RH	11A6479CP Side Repeater - Mirror Mounted - RH Row ID: ID_BBAF0926_11A6479CP_ContPgHS;	-	1	Enquire
016	11A8448CP	Wiring Harrness - Door Mirror - Memory - LH	11A8448CP Wiring Harrness - Door Mirror - Memory - LH Row ID: ID_BBAF0948_11A8448CP_ContPgHS;	-	1	Enquire
016	11A8447CP	Wiring Harrness - Door Mirror - Memory - RH	11A8447CP Wiring Harrness - Door Mirror - Memory - RH Row ID: ID_BBAF0947_11A8447CP_ContPgHS;	-	1	Enquire
017	00RB059	CLIP CONNECTOR - TRW	00RB059 CLIP CONNECTOR - TRW Row ID: ID_BBAF0927_00RB059_ContPgHS;	-	2	Enquire
018	11A8452CP	SCALP CARBON LH	11A8452CP SCALP CARBON LH Row ID: ID_BBAF0950_11A8452CP_ContPgHS;	-	1	Enquire
018	11A8451CP	Scalp - Painted - LH	11A8451CP Scalp - Painted - LH Row ID: ID_BBAF0918_11A8451CP_ContPgHS;	-	1	Enquire
018	11A8450CP	SCALP CARBON RH	11A8450CP SCALP CARBON RH Row ID: ID_BBAF0949_11A8450CP_ContPgHS;	-	1	Enquire
018	11A8449CP	Scalp - Painted - RH	11A8449CP Scalp - Painted - RH Row ID: ID_BBAF0917_11A8449CP_ContPgHS;	-	1	Enquire
019	11A8417CP	SCALP - LOWER - UNPAINTED - LH	11A8417CP SCALP - LOWER - UNPAINTED - LH Row ID: ID_BBAF0952_11A8417CP_ContPgHS;	-	1	Enquire
019	11A8416CP	SCALP - LOWER - UNPAINTED - RH	11A8416CP SCALP - LOWER - UNPAINTED - RH Row ID: ID_BBAF0951_11A8416CP_ContPgHS;	-	1	Enquire
020	12A3465CP	Base - Door Mirror - LH	12A3465CP Base - Door Mirror - LH Row ID: ID_BBAF0932_12A3465CP_ContPgHS;	-	1	Enquire
020	12A3464CP	Base - Door Mirror - RH	12A3464CP Base - Door Mirror - RH Row ID: ID_BBAF0933_12A3464CP_ContPgHS;	-	1	Enquire
021	12A3467CP	Cover - Door Mirror Base - Lower - LH	12A3467CP Cover - Door Mirror Base - Lower - LH Row ID: ID_BBAF0934_12A3467CP_ContPgHS;	-	1	Enquire
021	12A3466CP	Cover - Door Mirror Base - Lower - RH	12A3466CP Cover - Door Mirror Base - Lower - RH Row ID: ID_BBAF0935_12A3466CP_ContPgHS;	-	1	Enquire
022	12A3469CP	Cover - Door Mirror Base - Upper - LH	12A3469CP Cover - Door Mirror Base - Upper - LH Row ID: ID_BBAF0936_12A3469CP_ContPgHS;	-	1	Enquire
022	12A3468CP	Cover - Door Mirror Base - Upper - RH	12A3468CP Cover - Door Mirror Base - Upper - RH Row ID: ID_BBAF0937_12A3468CP_ContPgHS;	-	1	Enquire
023	12A3471CP	Gasket - Door Mirror - LH	12A3471CP Gasket - Door Mirror - LH Row ID: ID_BBAF0915_12A3471CP_ContPgHS;	-	1	Enquire
023	12A3470CP	Gasket - Door Mirror - RH	12A3470CP Gasket - Door Mirror - RH Row ID: ID_BBAF0916_12A3470CP_ContPgHS;	-	1	Enquire
024	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID_BBAF0913_00RA061_ContPgHS;	-	6	Enquire
025	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID_BBAF0914_00RC077_ContPgHS;	-	6	Enquire
