5 - CLOSURES - 5.1 - BONNET STRUCTURE of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

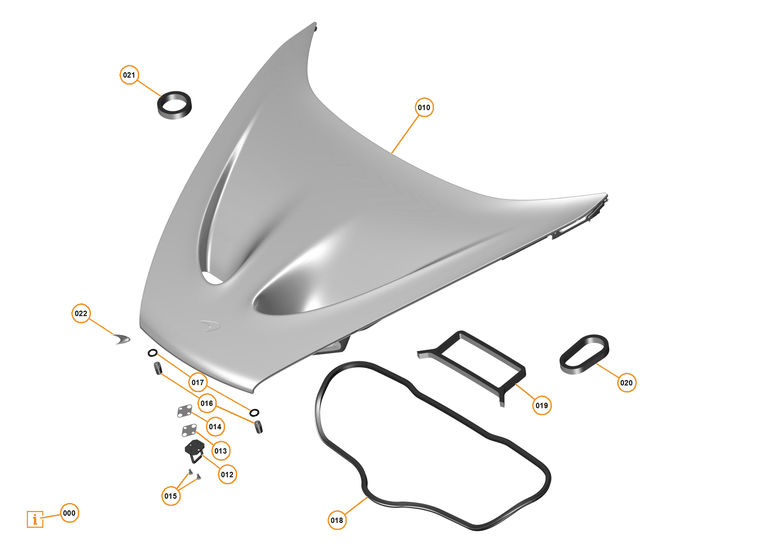

McLaren Ultimate Series McLaren P1 Coupe - 5 - CLOSURES - 5.1 - BONNET STRUCTURE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RC010	Washer - M8x17x2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3607CP	Luggage Compartment Lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3119CP	Striker - Luggage Compartment Lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2931CP	Shim - Bonnet Striker - 0.5mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2932CP	Shim - Bonnet Striker - 1.0mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA310	BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3032CP	BUMPSTOP - LUGGAGE COMPARTMENT LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3024CP	Washer - Bumpstop - Luggage Compartment Lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A0453CP	Seal - Luggage Compartment Lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A1106CP	Seal - Inlet - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2149CP	Seal - Tank - Luggage Compartment Lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2151CP	Seal - Bottle - Luggage Compartment Lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A9388CP	BADGE TICK FRONT CARBON	Enquire	To Order
	11A9380CP	Badge - Tick - Front - Red	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RC010	Washer - M8x17x2	00RC010 Washer - M8x17x2 Row ID: ID_BBAF0114_00RC010_ContPgHS;	-	2	Enquire
010	12A3607CP	Luggage Compartment Lid	12A3607CP Luggage Compartment Lid Superseded parts: 12A3264CP; Row ID: ID_BBAF0101_12A3607CP_ContPgHS;	-	1	Enquire
012	12A3119CP	Striker - Luggage Compartment Lid	12A3119CP Striker - Luggage Compartment Lid Row ID: ID_BBAF0103_12A3119CP_ContPgHS;	-	1	Enquire
013	12A2931CP	Shim - Bonnet Striker - 0.5mm	12A2931CP Shim - Bonnet Striker - 0.5mm Row ID: ID_BBAF0104_12A2931CP_ContPgHS;	-	1	Enquire
014	12A2932CP	Shim - Bonnet Striker - 1.0mm	12A2932CP Shim - Bonnet Striker - 1.0mm Row ID: ID_BBAF0105_12A2932CP_ContPgHS;	-	1	Enquire
015	00RA310	BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS	00RA310 BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS Row ID: ID_BBAF0106_00RA310_ContPgHS;	-	6	Enquire
016	12A3032CP	BUMPSTOP - LUGGAGE COMPARTMENT LID	12A3032CP BUMPSTOP - LUGGAGE COMPARTMENT LID Row ID: ID_BBAF0107_12A3032CP_ContPgHS;	-	2	Enquire
017	12A3024CP	Washer - Bumpstop - Luggage Compartment Lid	12A3024CP Washer - Bumpstop - Luggage Compartment Lid Row ID: ID_BBAF0108_12A3024CP_ContPgHS;	-	2	Enquire
018	12A0453CP	Seal - Luggage Compartment Lid	12A0453CP Seal - Luggage Compartment Lid Row ID: ID_BBAF0109_12A0453CP_ContPgHS;	-	1	Enquire
019	12A1106CP	Seal - Inlet - HVAC	12A1106CP Seal - Inlet - HVAC Row ID: ID_BBAF0110_12A1106CP_ContPgHS;	-	1	Enquire
020	12A2149CP	Seal - Tank - Luggage Compartment Lid	12A2149CP Seal - Tank - Luggage Compartment Lid Row ID: ID_BBAF0111_12A2149CP_ContPgHS;	-	1	Enquire
021	12A2151CP	Seal - Bottle - Luggage Compartment Lid	12A2151CP Seal - Bottle - Luggage Compartment Lid Row ID: ID_BBAF0112_12A2151CP_ContPgHS;	-	1	Enquire
022	11A9388CP	BADGE TICK FRONT CARBON	11A9388CP BADGE TICK FRONT CARBON Row ID: ID__11A9388CP_ContPgHS;	-	1	Enquire
022	11A9380CP	Badge - Tick - Front - Red	11A9380CP Badge - Tick - Front - Red Row ID: ID_BBAF0113_11A9380CP_ContPgHS;	-	1	Enquire
