5 - CLOSURES - 5.5 - DOOR HINGE of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 5 - CLOSURES - 5.5 - DOOR HINGE

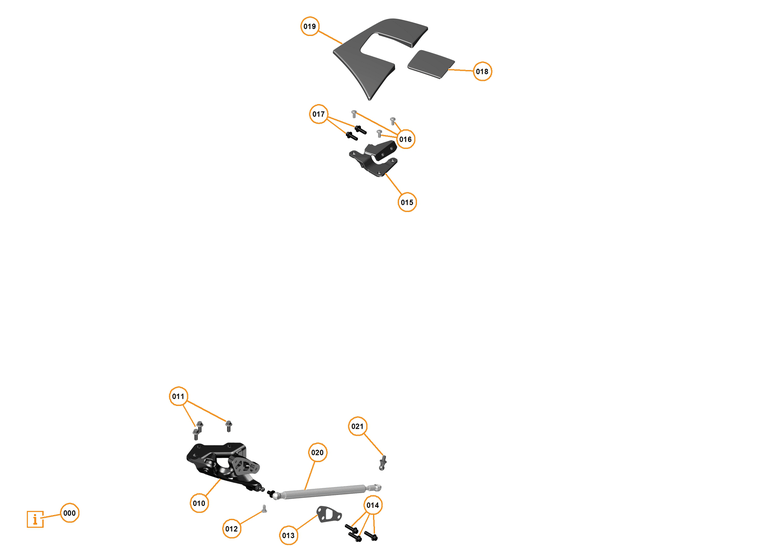

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RC048	WASHER - FORM C - 21X1.6 - M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3599CP	Hinge Assy - Door - Lower - RH	Enquire	To Order
	12A3598CP	Hinge Assy - Door - Lower - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA484	BOLT - HEX HEAD - FLANGED - M8X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A1116CP	Shim - Door Hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A3597CP	Hinge - Door - Upper - RH	Enquire	To Order
	12A3596CP	Hinge - Door - Upper - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA483	SCREW - BUTTON HEAD - TORX - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA485	BOLT - HEX HEAD - FLANGED - M8X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A1822CP	Cover - Hinge - Door - Upper - RH	Enquire	To Order
	12A1823CP	Cover - Hinge - Door - Upper - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A1820CP	Cover - Hinge - Body - Upper - RH	Enquire	To Order
	12A2395CP	Cover - Hinge - Body - Upper - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A0506CP	Gas Strut - Door	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3663CP	BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID_BBAF0617_00RC048_ContPgHS;	-	6	Enquire
010	12A3599CP	Hinge Assy - Door - Lower - RH	12A3599CP Hinge Assy - Door - Lower - RH Superseded parts: 12A3274CP; Row ID: ID_BBAF0602_12A3599CP_ContPgHS;	-	1	Enquire
010	12A3598CP	Hinge Assy - Door - Lower - LH	12A3598CP Hinge Assy - Door - Lower - LH Superseded parts: 12A3273CP; Row ID: ID_BBAF0601_12A3598CP_ContPgHS;	-	1	Enquire
011	00RA484	BOLT - HEX HEAD - FLANGED - M8X20	00RA484 BOLT - HEX HEAD - FLANGED - M8X20 Row ID: ID_BBAF0603_00RA484_ContPgHS;	-	6	Enquire
012	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID_BBAF0604_00RA409_ContPgHS;	-	2	Enquire
013	12A1116CP	Shim - Door Hinge	12A1116CP Shim - Door Hinge Row ID: ID_BBAF0605_12A1116CP_ContPgHS;	-	2	Enquire
014	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Row ID: ID_BBAF0606_00RA486_ContPgHS;	-	6	Enquire
015	12A3597CP	Hinge - Door - Upper - RH	12A3597CP Hinge - Door - Upper - RH Superseded parts: 12A1176CP; Row ID: ID_BBAF0608_12A3597CP_ContPgHS;	-	1	Enquire
015	12A3596CP	Hinge - Door - Upper - LH	12A3596CP Hinge - Door - Upper - LH Superseded parts: 12A1177CP; Row ID: ID_BBAF0607_12A3596CP_ContPgHS;	-	1	Enquire
016	00RA483	SCREW - BUTTON HEAD - TORX - M6X16	00RA483 SCREW - BUTTON HEAD - TORX - M6X16 Row ID: ID_BBAF0609_00RA483_ContPgHS;	-	6	Enquire
017	00RA485	BOLT - HEX HEAD - FLANGED - M8X25	00RA485 BOLT - HEX HEAD - FLANGED - M8X25 Row ID: ID_BBAF0610_00RA485_ContPgHS;	-	4	Enquire
018	12A1822CP	Cover - Hinge - Door - Upper - RH	12A1822CP Cover - Hinge - Door - Upper - RH Row ID: ID_BBAF0612_12A1822CP_ContPgHS;	-	1	Enquire
018	12A1823CP	Cover - Hinge - Door - Upper - LH	12A1823CP Cover - Hinge - Door - Upper - LH Row ID: ID_BBAF0611_12A1823CP_ContPgHS;	-	1	Enquire
019	12A1820CP	Cover - Hinge - Body - Upper - RH	12A1820CP Cover - Hinge - Body - Upper - RH Row ID: ID_BBAF0614_12A1820CP_ContPgHS;	-	1	Enquire
019	12A2395CP	Cover - Hinge - Body - Upper - LH	12A2395CP Cover - Hinge - Body - Upper - LH Row ID: ID_BBAF0613_12A2395CP_ContPgHS;	-	1	Enquire
020	12A0506CP	Gas Strut - Door	12A0506CP Gas Strut - Door Row ID: ID_BBAF0615_12A0506CP_ContPgHS;	-	2	Enquire
021	11A3663CP	BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT	11A3663CP BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT Row ID: ID_BBAF0616_11A3663CP_ContPgHS;	-	2	Enquire
