20 - STEERING - 20.4 - STEERING COLUMN of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 20 - STEERING - 20.4 - STEERING COLUMN

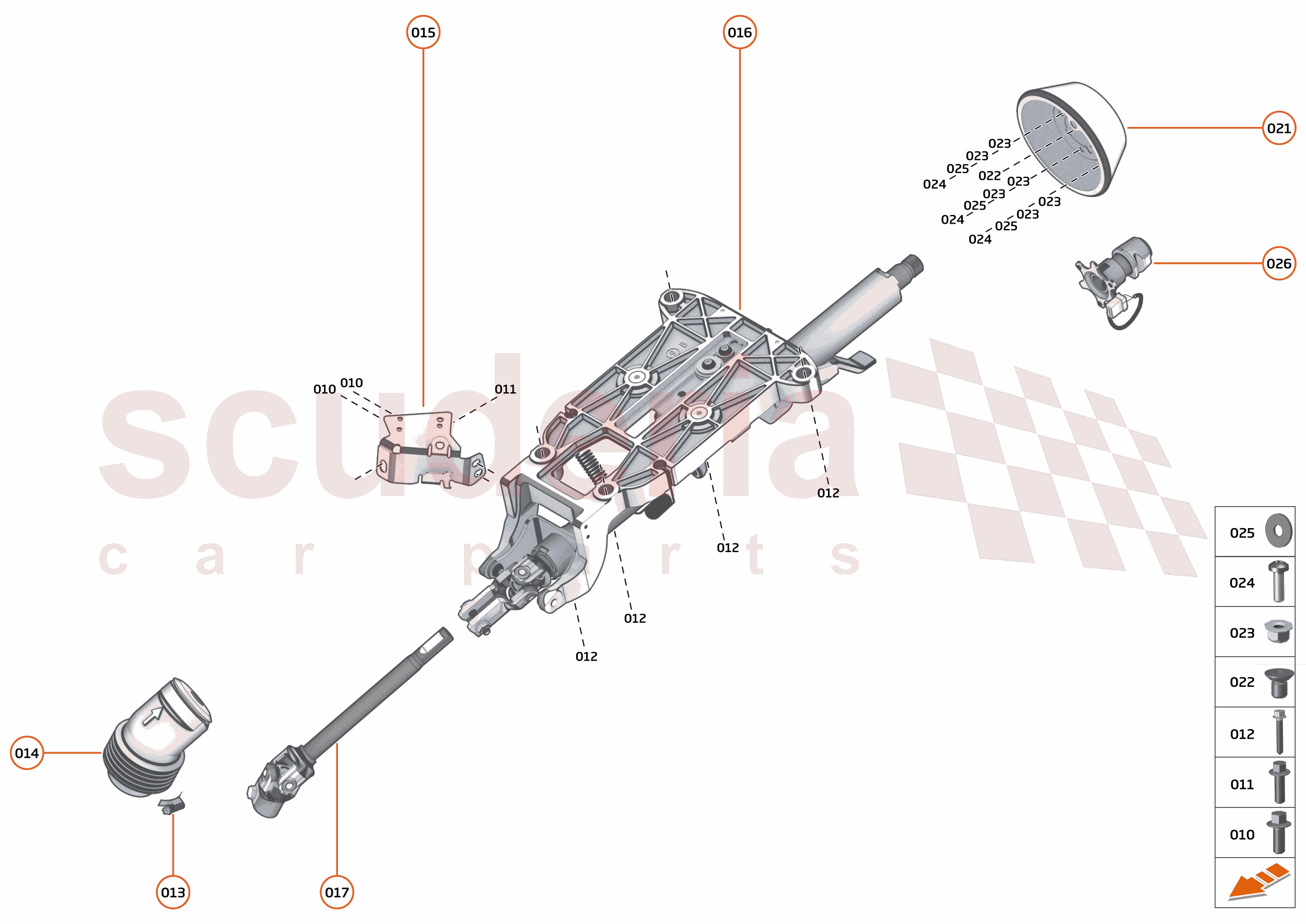

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA510	Bolt - Torx Head - Flange - M8X1.25X45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB049	Hose Clamp - 40-60mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11D0254CP	Gaiter - Steering Column - Joint	$21.18	To Order

Photo	Part No	Description	Price (each)	Stock
	11N3514CP	BRACKET - FACIA NVH SUPPORT - LHD - MANUALCOLUMN	Enquire	To Order
	14DA009CP	BRACKET - FACIA NVH SUPPORT - RHD - MANUAL STEERING COLUMN	$30.20	To Order

Photo	Part No	Description	Price (each)	Stock
	13DA023RP	STEERING COLUMN - MANUAL - UPPER	Enquire	To Order
	13DA036RP	STEERING COLUMN UPPER MANUAL-R	$1,612.27	To Order

Photo	Part No	Description	Price (each)	Stock
	11D0244RP	STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S-540C-720S	$266.91	To Order

Photo	Part No	Description	Price (each)	Stock
	12N0637RP	P1 GTR STEERING COLUMN SHROUD	Enquire	To Order
	15DA012RP	SHROUD STEERING COLUMN SENNA G	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11N2249CP	SCREW - M16X25 - SKT - CSK	$10.68	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA074	NUT-HEX HEAD FLANGE-M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA574	SCREW - M5X25 - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC103	WASHER - M5X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15DA005RP	ASSY - QR STEERING WHEEL BOSS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS;	-	2	Enquire
011	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS;	-	1	Enquire
012	00RA510	Bolt - Torx Head - Flange - M8X1.25X45	00RA510 Bolt - Torx Head - Flange - M8X1.25X45 Row ID: ID__00RA510_ContPgHS;	-	4	Enquire
013	00RB049	Hose Clamp - 40-60mm	00RB049 Hose Clamp - 40-60mm Row ID: ID__00RB049_ContPgHS;	-	1	Enquire
014	11D0254CP	Gaiter - Steering Column - Joint	11D0254CP Gaiter - Steering Column - Joint Row ID: ID__11D0254CP_ContPgHS;	$21.18	1
015	11N3514CP	BRACKET - FACIA NVH SUPPORT - LHD - MANUALCOLUMN	11N3514CP BRACKET - FACIA NVH SUPPORT - LHD - MANUALCOLUMN Row ID: ID__11N3514CP_ContPgHS;	-	1	Enquire
015	14DA009CP	BRACKET - FACIA NVH SUPPORT - RHD - MANUAL STEERING COLUMN	14DA009CP BRACKET - FACIA NVH SUPPORT - RHD - MANUAL STEERING COLUMN Row ID: ID__14DA009CP_ContPgHS;	$30.20	1
016	13DA023RP	STEERING COLUMN - MANUAL - UPPER	13DA023RP STEERING COLUMN - MANUAL - UPPER Row ID: ID__13DA023RP_ContPgHS;	-	1	Enquire
016	13DA036RP	STEERING COLUMN UPPER MANUAL-R	13DA036RP STEERING COLUMN UPPER MANUAL-R Row ID: ID__13DA036RP_ContPgHS;	$1,612.27	1
017	11D0244RP	STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S-540C-720S	11D0244RP STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S-540C-720S Row ID: ID__11D0244RP_ContPgHS;	$266.91	1
021	12N0637RP	P1 GTR STEERING COLUMN SHROUD	12N0637RP P1 GTR STEERING COLUMN SHROUD Row ID: ID__12N0637RP_ContPgHS;	-	1	Enquire
021	15DA012RP	SHROUD STEERING COLUMN SENNA G	15DA012RP SHROUD STEERING COLUMN SENNA G Row ID: ID__15DA012RP_ContPgHS;	-	1	Enquire
022	11N2249CP	SCREW - M16X25 - SKT - CSK	11N2249CP SCREW - M16X25 - SKT - CSK Row ID: ID__11N2249CP_ContPgHS;	$10.68	1
023	00RA074	NUT-HEX HEAD FLANGE-M5	00RA074 NUT-HEX HEAD FLANGE-M5 Row ID: ID__00RA074_ContPgHS;	-	-	Enquire
024	00RA574	SCREW - M5X25 - TORX	00RA574 SCREW - M5X25 - TORX Row ID: ID__00RA574_ContPgHS;	-	3	Enquire
025	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	3	Enquire
026	15DA005RP	ASSY - QR STEERING WHEEL BOSS	15DA005RP ASSY - QR STEERING WHEEL BOSS Row ID: ID__15DA005RP_ContPgHS;	-	1	Enquire
027	11D0083RP	STEERING COLUMN - UPPER - ELECTRIC - LHD	11D0083RP STEERING COLUMN - UPPER - ELECTRIC - LHD Row ID: ID__11D0083RP_ContPgHS;	-	1	Enquire
