17 - Suspension - 17.9 - Rear Toe Link

McLaren Ultimate Series McLaren Senna GTR

Find Your Part

McLaren Ultimate Series McLaren Senna GTR - 17 - SUSPENSION - 17.9 - REAR TOE LINK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15BA078RP ASSY-TOE LINK Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
ZZUA018QP M10X1.5 6PT KNUT Enquire To Order
Photo Part No Description Price (each) Stock
A1BA115QP BOLT-SUSPENSION CLEVIS - M10X61 44MM SHANK Enquire To Order
View All

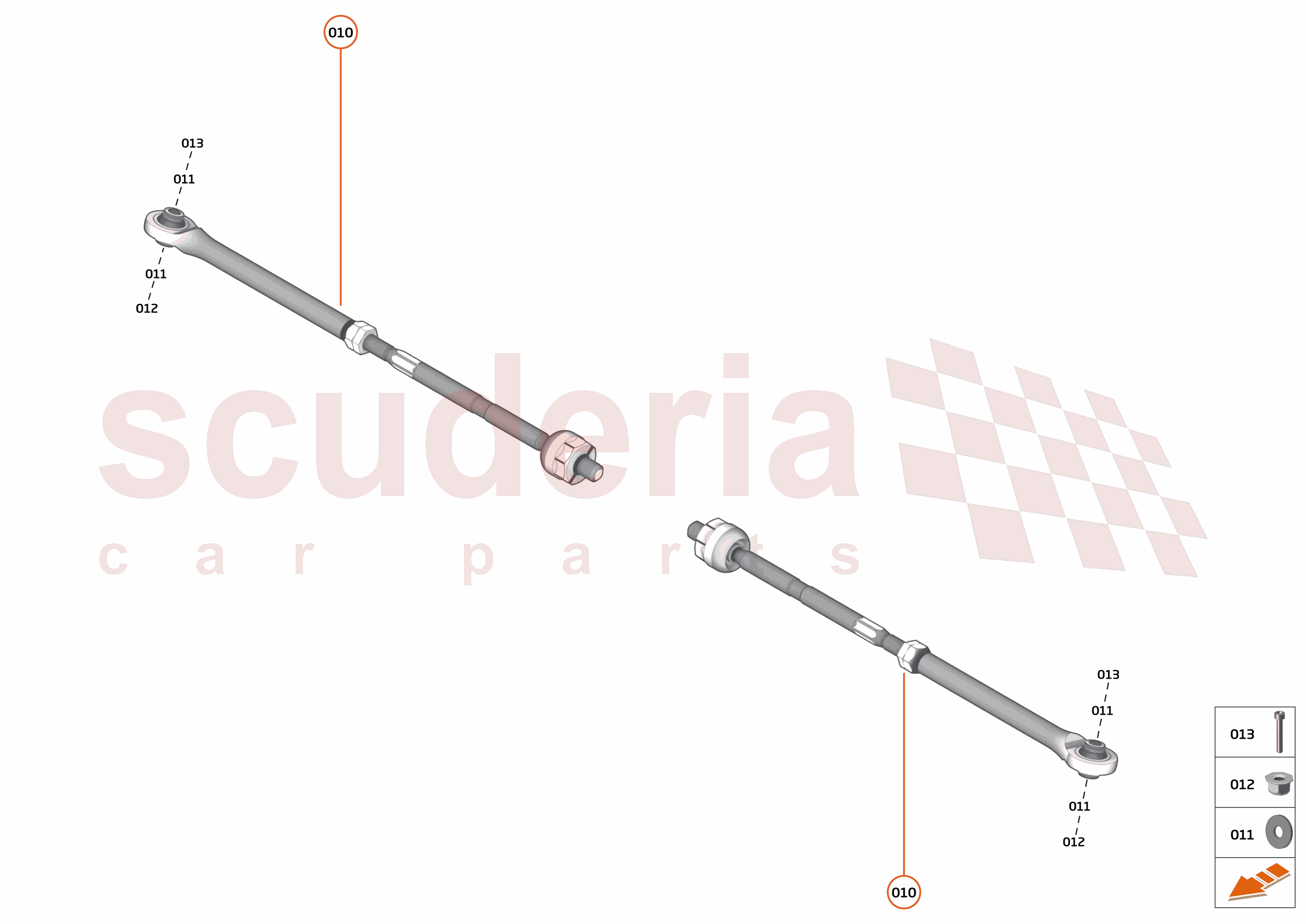

17 - SUSPENSION - 17.9 - REAR TOE LINK of McLaren McLaren Ultimate Series McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15BA078RP
ASSY-TOE LINK
Row ID: ID__15BA078RP_ContPgHS; 		- - Enquire
011 00RC065
WASHER - M10X21X2.0
Row ID: ID__00RC065_ContPgHS; 		- - Enquire
012 ZZUA018QP
M10X1.5 6PT KNUT
Row ID: ID__ZZUA018QP_ContPgHS; 		- 1 Enquire
013 A1BA115QP
BOLT-SUSPENSION CLEVIS - M10X61 44MM SHANK
Row ID: ID__A1BA115QP_ContPgHS; 		- 1 Enquire
