17 - SUSPENSION - 17.2 - UPRIGHTS FRONT of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 17 - SUSPENSION - 17.2 - UPRIGHTS FRONT

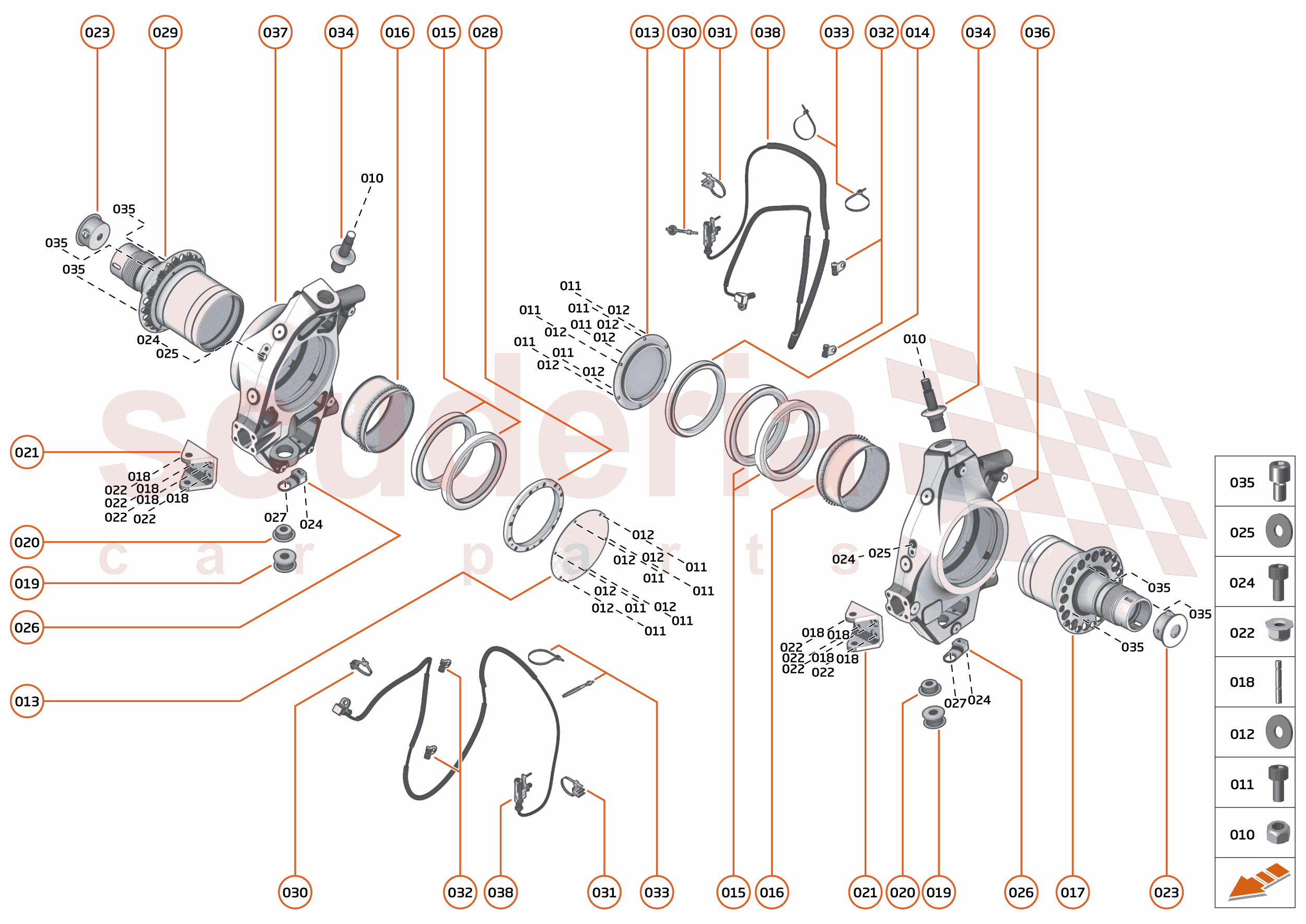

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ZZUA005QP	NUT HEX HD LOCKED M14 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ZZTA015QP	M4X8 UNBRAKO SHCS	Enquire	To Order
	ZZTA048QP	M4X8 UNBRAKO SHCS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ZZVA002QP	M4 WASHER - STANDARD BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ZZBA009QP	LOCKING RING FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	A1BA329QP	BEARING NUT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ZZBA014QP	WHEEL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	A1BA298QP	BEARING SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0726RP	WHEEL HUB-FR-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	A1BA073QP	STUD M6 X 17 GRIP MK2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	A1BA053QP	TOPHAT FRT UPRIGHT LWR - BALL JOINT LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	A1BA055QP	TOPHAT FRT UPRIGHT LWR - BALL JOINT UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	A1BA069QP	BRACKET STEERING ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ZZUA003QP	M6 K NUT WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0724RP	ASSY-WHEEL RETENTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ZZTA051QP	M6X16 UNBRAKO SHCS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC028	WASHER - M6 FORM C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15BA160RP	LOCKING DEVICE - FR LWR BALL J	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15BA169RP	BOLT-UPRIGHT-FR LWR BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	A1BA330QP	BEARING NUT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0728RP	WHEEL HUB-FR-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL011	EDGE CLIP - 202X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB063	P CLIP - DIA 6 (M6)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL012	CABLE TIE - 300X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	A1BA051QP	STUD - UPRIGHT FRONT UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0489RP	HUB DOWEL - P1 GTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15BA034RP	ASSY-UPRIGHT-FR-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15BA037RP	ASSY-UPRIGHT-FR-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	A1BA075QP	WHEEL SPEED SENSOR 2015	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	ZZUA005QP	NUT HEX HD LOCKED M14 X 2	ZZUA005QP NUT HEX HD LOCKED M14 X 2 Row ID: ID__ZZUA005QP_ContPgHS;	-	-	Enquire
011	ZZTA015QP	M4X8 UNBRAKO SHCS	ZZTA015QP M4X8 UNBRAKO SHCS Row ID: ID__ZZTA015QP_ContPgHS;	-	-	Enquire
011	ZZTA048QP	M4X8 UNBRAKO SHCS	ZZTA048QP M4X8 UNBRAKO SHCS Row ID: ID__ZZTA048QP_ContPgHS;	-	1	Enquire
012	ZZVA002QP	M4 WASHER - STANDARD BLACK	ZZVA002QP M4 WASHER - STANDARD BLACK Row ID: ID__ZZVA002QP_ContPgHS;	-	-	Enquire
013	ZZBA009QP	LOCKING RING FRONT	ZZBA009QP LOCKING RING FRONT Row ID: ID__ZZBA009QP_ContPgHS;	-	-	Enquire
014	A1BA329QP	BEARING NUT LH	A1BA329QP BEARING NUT LH Row ID: ID__A1BA329QP_ContPgHS;	-	-	Enquire
015	ZZBA014QP	WHEEL BEARING	ZZBA014QP WHEEL BEARING Row ID: ID__ZZBA014QP_ContPgHS;	-	-	Enquire
016	A1BA298QP	BEARING SPACER	A1BA298QP BEARING SPACER Row ID: ID__A1BA298QP_ContPgHS;	-	-	Enquire
017	12B0726RP	WHEEL HUB-FR-LH	12B0726RP WHEEL HUB-FR-LH Row ID: ID__12B0726RP_ContPgHS;	-	1	Enquire
018	A1BA073QP	STUD M6 X 17 GRIP MK2	A1BA073QP STUD M6 X 17 GRIP MK2 Row ID: ID__A1BA073QP_ContPgHS;	-	-	Enquire
019	A1BA053QP	TOPHAT FRT UPRIGHT LWR - BALL JOINT LOWER	A1BA053QP TOPHAT FRT UPRIGHT LWR - BALL JOINT LOWER Row ID: ID__A1BA053QP_ContPgHS;	-	2	Enquire
020	A1BA055QP	TOPHAT FRT UPRIGHT LWR - BALL JOINT UPPER	A1BA055QP TOPHAT FRT UPRIGHT LWR - BALL JOINT UPPER Row ID: ID__A1BA055QP_ContPgHS;	-	-	Enquire
021	A1BA069QP	BRACKET STEERING ARM	A1BA069QP BRACKET STEERING ARM Row ID: ID__A1BA069QP_ContPgHS;	-	-	Enquire
022	ZZUA003QP	M6 K NUT WITH WASHER	ZZUA003QP M6 K NUT WITH WASHER Row ID: ID__ZZUA003QP_ContPgHS;	-	-	Enquire
023	12B0724RP	ASSY-WHEEL RETENTION	12B0724RP ASSY-WHEEL RETENTION Row ID: ID__12B0724RP_ContPgHS;	-	-	Enquire
024	ZZTA051QP	M6X16 UNBRAKO SHCS	ZZTA051QP M6X16 UNBRAKO SHCS Row ID: ID__ZZTA051QP_ContPgHS;	-	-	Enquire
025	00RC028	WASHER - M6 FORM C	00RC028 WASHER - M6 FORM C Row ID: ID__00RC028_ContPgHS;	-	-	Enquire
026	15BA160RP	LOCKING DEVICE - FR LWR BALL J	15BA160RP LOCKING DEVICE - FR LWR BALL J Row ID: ID__15BA160RP_ContPgHS;	-	-	Enquire
027	15BA169RP	BOLT-UPRIGHT-FR LWR BALL JOINT	15BA169RP BOLT-UPRIGHT-FR LWR BALL JOINT Row ID: ID__15BA169RP_ContPgHS;	-	-	Enquire
028	A1BA330QP	BEARING NUT RH	A1BA330QP BEARING NUT RH Row ID: ID__A1BA330QP_ContPgHS;	-	1	Enquire
029	12B0728RP	WHEEL HUB-FR-RH	12B0728RP WHEEL HUB-FR-RH Row ID: ID__12B0728RP_ContPgHS;	-	1	Enquire
030	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS;	-	-	Enquire
031	00RL011	EDGE CLIP - 202X4.6MM	00RL011 EDGE CLIP - 202X4.6MM Row ID: ID__00RL011_ContPgHS;	-	-	Enquire
032	00RB063	P CLIP - DIA 6 (M6)	00RB063 P CLIP - DIA 6 (M6) Row ID: ID__00RB063_ContPgHS;	-	-	Enquire
033	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID__00RL012_ContPgHS;	-	-	Enquire
034	A1BA051QP	STUD - UPRIGHT FRONT UPPER	A1BA051QP STUD - UPRIGHT FRONT UPPER Row ID: ID__A1BA051QP_ContPgHS;	-	-	Enquire
035	12B0489RP	HUB DOWEL - P1 GTR	12B0489RP HUB DOWEL - P1 GTR Row ID: ID__12B0489RP_ContPgHS;	-	-	Enquire
036	15BA034RP	ASSY-UPRIGHT-FR-LH	15BA034RP ASSY-UPRIGHT-FR-LH Row ID: ID__15BA034RP_ContPgHS;	-	1	Enquire
037	15BA037RP	ASSY-UPRIGHT-FR-RH	15BA037RP ASSY-UPRIGHT-FR-RH Row ID: ID__15BA037RP_ContPgHS;	-	1	Enquire
038	A1BA075QP	WHEEL SPEED SENSOR 2015	A1BA075QP WHEEL SPEED SENSOR 2015 Row ID: ID__A1BA075QP_ContPgHS;	-	-	Enquire
