15 - DUCTS, VENTS AND FLOORS - 15.3 - REAR DUCTS AND VENTS of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 15 - DUCTS, VENTS AND FLOORS - 15.3 - REAR DUCTS AND VENTS

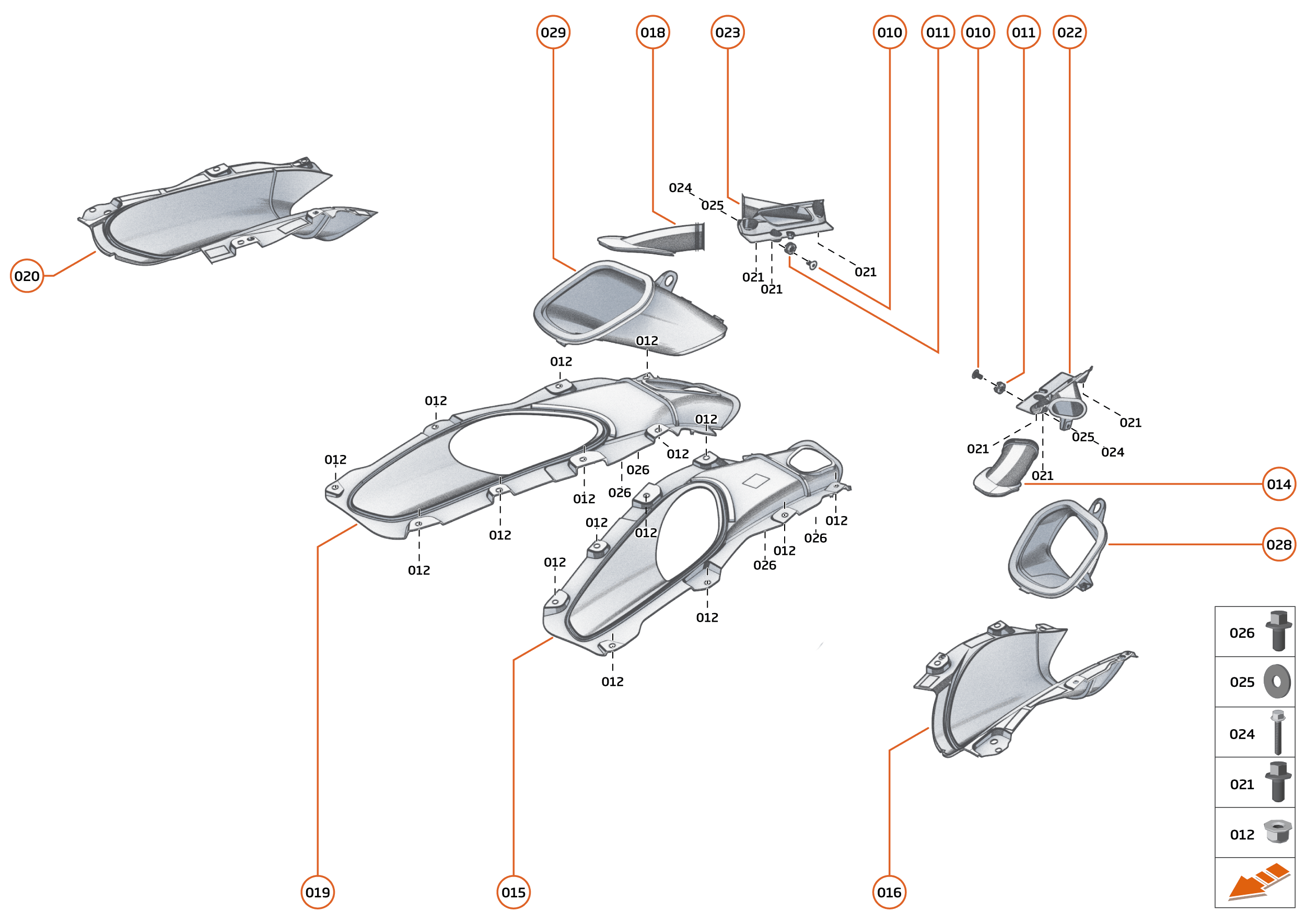

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11F0889CP	SPACER - TOPHAT - AIRBOX	11F0889CP SPACER - TOPHAT - AIRBOX Row ID: ID__11F0889CP_ContPgHS;	-	1	Enquire
011	14F0586CP	GROMMET - CLEAN AIR BOX	14F0586CP GROMMET - CLEAN AIR BOX Row ID: ID__14F0586CP_ContPgHS;	-	1	Enquire
012	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
014	22AB320GP		22AB320GP T TUBE LH; Row ID: ID__22AB320GP_ContPgHS;	-	1	Enquire
015	22AB493GP	RR BMPR NUMBER PLATE LAMP COVE	22AB493GP RR BMPR NUMBER PLATE LAMP COVE Row ID: ID__22AB493GP_ContPgHS;	-	1	Enquire
016	22AB746GP	ASSY LOWER DUCT LH	22AB746GP ASSY LOWER DUCT LH Row ID: ID__22AB746GP_ContPgHS;	-	1	Enquire
018	22AB321GP		22AB321GP T TUBE RH; Row ID: ID__22AB321GP_ContPgHS;	-	1	Enquire
019	22AA520GP	UPPER DUCT RH	22AA520GP UPPER DUCT RH Row ID: ID__22AA520GP_ContPgHS;	-	1	Enquire
019	22AB494GP	ASSY UPPER DUCT RH	22AB494GP ASSY UPPER DUCT RH Row ID: ID__22AB494GP_ContPgHS;	-	1	Enquire
020	22AB747GP	ASSY LOWER DUCT RH	22AB747GP ASSY LOWER DUCT RH Row ID: ID__22AB747GP_ContPgHS;	-	1	Enquire
021	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS;	-	3	Enquire
022	22AB560GP	ASSY T-TUBE-REAR UPPER STRUCTURE LH	22AB560GP ASSY T-TUBE-REAR UPPER STRUCTURE LH Row ID: ID__22AB560GP_ContPgHS;	-	1	Enquire
023	22AB561GP	ASSY T-TUBE-REAR UPPER STRUCTURE RH	22AB561GP ASSY T-TUBE-REAR UPPER STRUCTURE RH Row ID: ID__22AB561GP_ContPgHS;	-	1	Enquire
024	00RA073	SCREW - M6X30 - HEX	00RA073 SCREW - M6X30 - HEX Row ID: ID__00RA073_ContPgHS;	-	1	Enquire
025	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS;	-	1	Enquire
026	00RX003	BOLT - M6X1X12 - HEX	00RX003 BOLT - M6X1X12 - HEX Row ID: ID__00RX003_ContPgHS;	-	2	Enquire
027	22AB316GP	ASSY INNER DUCT LH	22AB316GP ASSY INNER DUCT LH Row ID: ID__22AB316GP_ContPgHS;	-	1	Enquire
028	22AB317GP	ASSY INNER DUCT RH	22AB317GP ASSY INNER DUCT RH Row ID: ID__22AB317GP_ContPgHS;	-	1	Enquire
051	22AA513GP	UPPER DUCT LH	22AA513GP UPPER DUCT LH Row ID: ID__22AA513GP_ContPgHS;	-	1	Enquire
