13 - LIGHTS - 13.2 - REAR LIGHTS of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 13 - LIGHTS - 13.2 - REAR LIGHTS

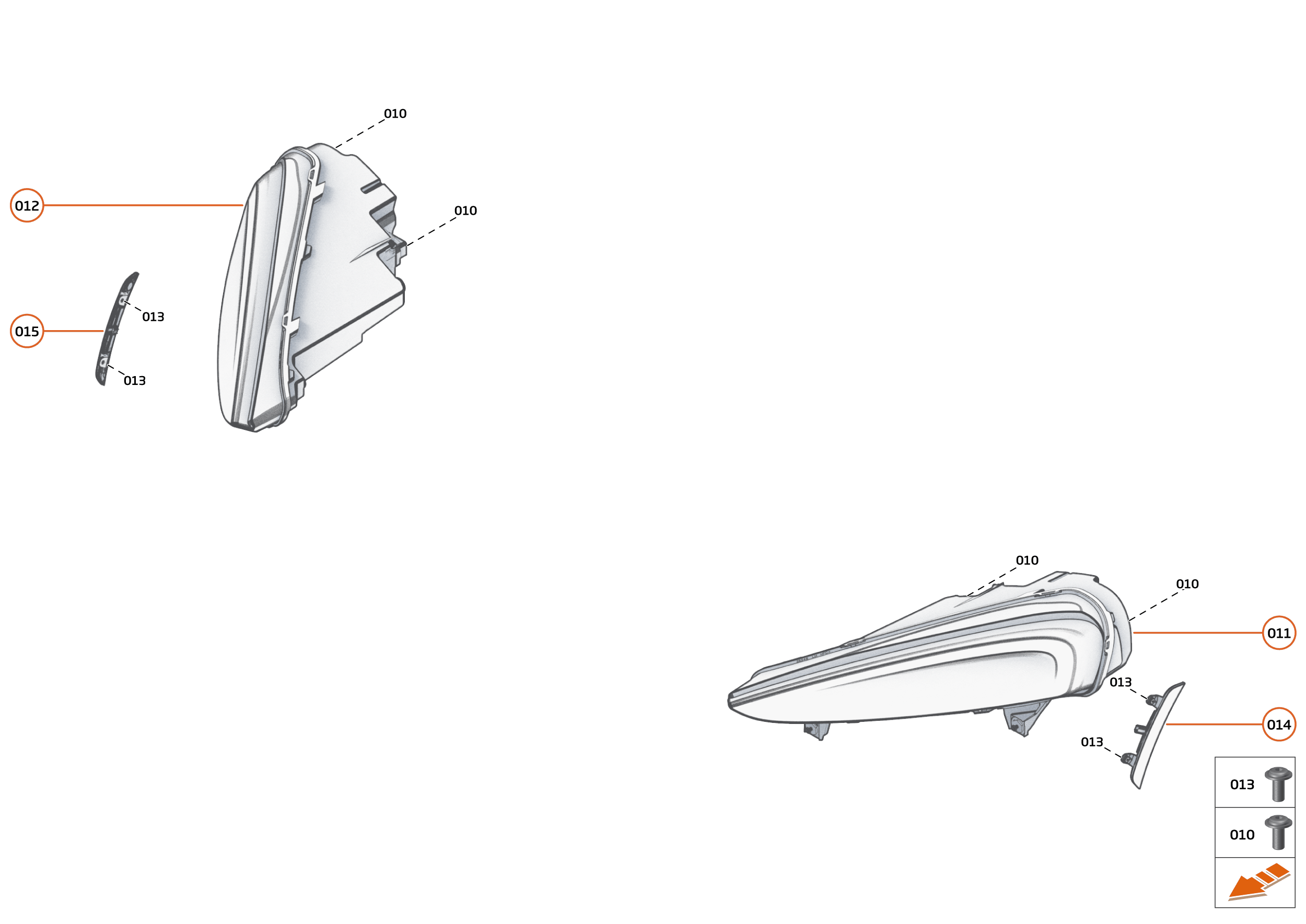

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	4	Enquire
011	15AD180CP	LAMP - REAR - LH	15AD180CP LAMP - REAR - LH Row ID: ID__15AD180CP_ContPgHS;	-	1	Enquire
011	15AC668CP	LAMP - REAR - LH	15AC668CP LAMP - REAR - LH Row ID: ID__15AC668CP_ContPgHS;	-	1	Enquire
012	15AD181CP	LAMP - REAR - RH	15AD181CP LAMP - REAR - RH Row ID: ID__15AD181CP_ContPgHS;	-	1	Enquire
012	15AC669CP	LAMP - REAR - RH	15AC669CP LAMP - REAR - RH Row ID: ID__15AC669CP_ContPgHS;	-	1	Enquire
013	00RA549	SCREW - BUTTON - TORX - M4X16	00RA549 SCREW - BUTTON - TORX - M4X16 Row ID: ID__00RA549_ContPgHS;	-	2	Enquire
014	13A3022CP	LAMP - FOG / REVERSE	13A3022CP LAMP - FOG / REVERSE Row ID: ID__13A3022CP_ContPgHS;	-	1	Enquire
015	00RA165	BOLT - M5X8 - HEX	00RA165 BOLT - M5X8 - HEX Row ID: ID__00RA165_ContPgHS;	-	2	Enquire
016	13A5180CP	LAMP - HIGH MOUNTED STOP	13A5180CP LAMP - HIGH MOUNTED STOP Row ID: ID__13A5180CP_ContPgHS;	-	1	Enquire
017	00RA489	SCREW - M4X10 - FLANGED - BUTTON HEAD	00RA489 SCREW - M4X10 - FLANGED - BUTTON HEAD Row ID: ID__00RA489_ContPgHS;	-	2	Enquire
018	22AA936GP	SIDE BEZEL RR LH SMOKED	22AA936GP SIDE BEZEL RR LH SMOKED Row ID: ID__22AA936GP_ContPgHS;	-	1	Enquire
018	22AB128GP	ASSY-SIDE MARKER RR-LH	22AB128GP ASSY-SIDE MARKER RR-LH Row ID: ID__22AB128GP_ContPgHS;	-	1	Enquire
019	22AA938GP	SIDE BEZEL RR RH SMOKED	22AA938GP SIDE BEZEL RR RH SMOKED Row ID: ID__22AA938GP_ContPgHS;	-	1	Enquire
019	22AB129GP	ASSY-SIDE MARKER RR-RH	22AB129GP ASSY-SIDE MARKER RR-RH Row ID: ID__22AB129GP_ContPgHS;	-	1	Enquire
020	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS;	-	2	Enquire
021	13A3750CP	REFLECTOR - REAR - LH	13A3750CP REFLECTOR - REAR - LH Row ID: ID__13A3750CP_ContPgHS;	-	1	Enquire
022	13A3751CP	REFLECTOR - REAR - RH	13A3751CP REFLECTOR - REAR - RH Row ID: ID__13A3751CP_ContPgHS;	-	1	Enquire
023	13A5971CP	LAMP - LICENCE PLATE - LUGGAGE BIN	13A5971CP LAMP - LICENCE PLATE - LUGGAGE BIN Row ID: ID__13A5971CP_ContPgHS;	-	1	Enquire
