14 - WIPERS & WASHER SYSTEM - 14.1 - WASHER SYSTEM of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 14 - WIPERS & WASHER SYSTEM - 14.1 - WASHER SYSTEM

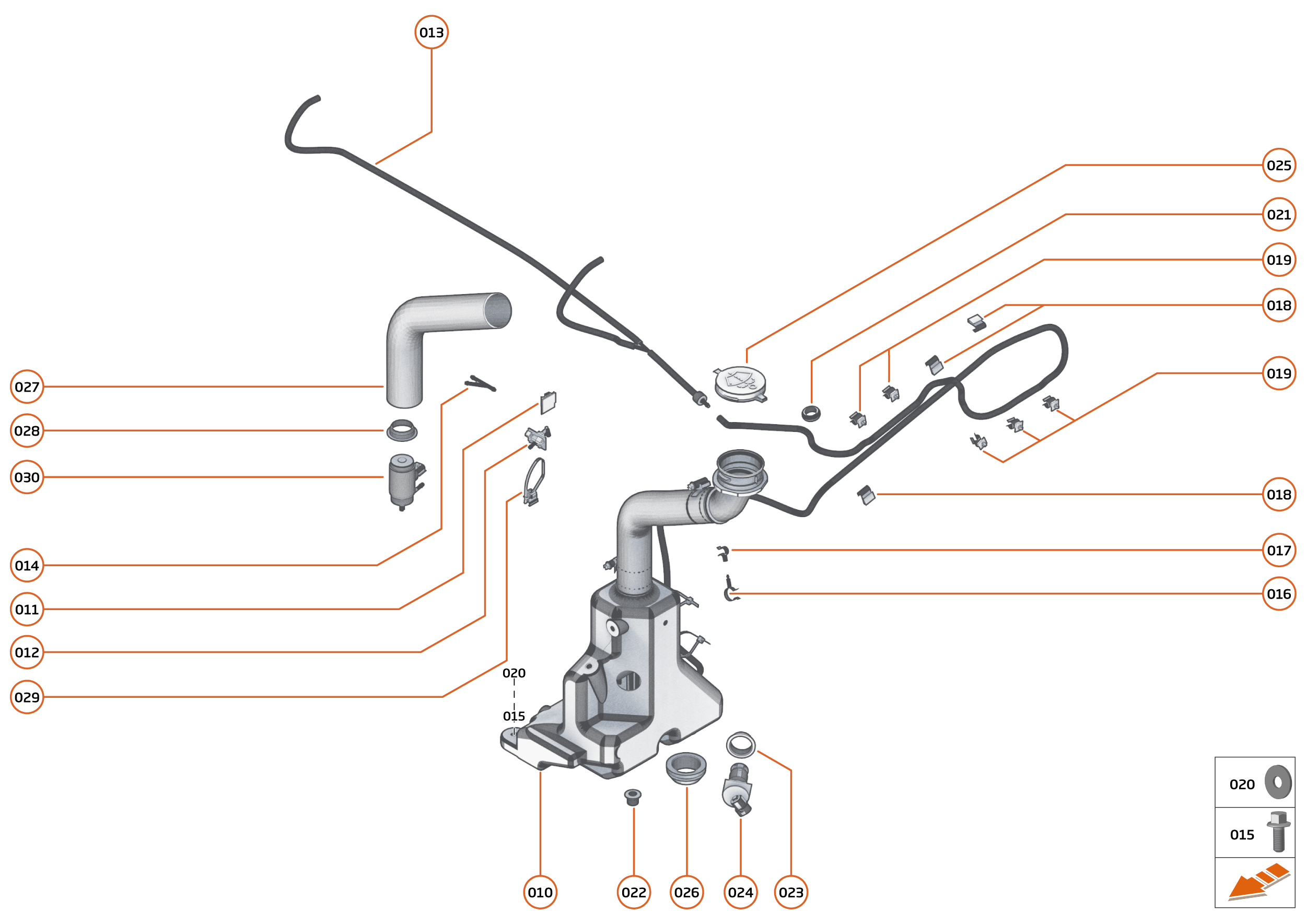

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	13AA008CP	HOSE - WINDSCREEN WASHER	13AA008CP HOSE - WINDSCREEN WASHER Row ID: ID__13AA008CP_ContPgHS;	-	1	Enquire
010	13AA309CP	ASSY WASHER BOTTLE - COMPLETE	13AA309CP ASSY WASHER BOTTLE - COMPLETE Row ID: ID__13AA309CP_ContPgHS;	-	1	Enquire
011	00RB211	CLIP - PIPE - WINDSCREEN WASHER	00RB211 CLIP - PIPE - WINDSCREEN WASHER Row ID: ID__00RB211_ContPgHS;	-	1	Enquire
012	13A1860CP	NOZZLE - WASHER BOTTLE	13A1860CP NOZZLE - WASHER BOTTLE Row ID: ID__13A1860CP_ContPgHS;	-	2	Enquire
013	13AA318CP	WASHER HOSE - WINDSCREEN	13AA318CP WASHER HOSE - WINDSCREEN Row ID: ID__13AA318CP_ContPgHS;	-	1	Enquire
014	13A4587CP	CONNECTOR Y-PIECE - PIPE - WINDSCREEN WASHER	13A4587CP CONNECTOR Y-PIECE - PIPE - WINDSCREEN WASHER Row ID: ID__13A4587CP_ContPgHS;	-	1	Enquire
015	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	1	Enquire
016	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID__00RB034_ContPgHS;	-	1	Enquire
017	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE Row ID: ID__00RB046_ContPgHS;	-	1	Enquire
018	00RB086	PIPE EDGE CLIP - RAYMOND 018192	00RB086 PIPE EDGE CLIP - RAYMOND 018192 Row ID: ID__00RB086_ContPgHS;	-	3	Enquire
019	00RB170	CLIP - WASHER HOSE	00RB170 CLIP - WASHER HOSE Row ID: ID__00RB170_ContPgHS;	-	5	Enquire
020	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS;	-	1	Enquire
021	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER Row ID: ID__00RG011_ContPgHS;	-	1	Enquire
022	13A4199CP	GROMMET - WASHER BOTTLE - PUMP	13A4199CP GROMMET - WASHER BOTTLE - PUMP Row ID: ID__13A4199CP_ContPgHS;	-	1	Enquire
023	13A4200CP	GROMMET - SENSOR - WASHER LEVEL	13A4200CP GROMMET - SENSOR - WASHER LEVEL Row ID: ID__13A4200CP_ContPgHS;	-	1	Enquire
024	13A4201CP	SENSOR - WASHER LEVEL	13A4201CP SENSOR - WASHER LEVEL Row ID: ID__13A4201CP_ContPgHS;	-	1	Enquire
025	13A4522CP	CAP - WASHER BOTTLE	13A4522CP CAP - WASHER BOTTLE Row ID: ID__13A4522CP_ContPgHS;	-	1	Enquire
026	13A4585CP	GASKET - WINDCREEN - WASHER BOTTLE	13A4585CP GASKET - WINDCREEN - WASHER BOTTLE Row ID: ID__13A4585CP_ContPgHS;	-	1	Enquire
027	13AA098CP	WASHER FLEX TUBE	13AA098CP WASHER FLEX TUBE Row ID: ID__13AA098CP_ContPgHS;	-	1	Enquire
028	13AA617CP	GROMMET - SENSOR - WASHER LEVEL	13AA617CP GROMMET - SENSOR - WASHER LEVEL Row ID: ID__13AA617CP_ContPgHS;	-	1	Enquire
029	00RL022	EDGE CLIP - 202X4.6MM - INLINE	00RL022 EDGE CLIP - 202X4.6MM - INLINE Row ID: ID__00RL022_ContPgHS;	-	1	Enquire
030	13A4198CP	PUMP - WINDSCREEN WASH	13A4198CP PUMP - WINDSCREEN WASH Row ID: ID__13A4198CP_ContPgHS;	-	1	Enquire
031	13AA309CP	ASSY WASHER BOTTLE - COMPLETE	13AA309CP ASSY WASHER BOTTLE - COMPLETE Row ID: ID__13AA309CP_ContPgHS;	-	1	Enquire
