10 - Exterior Ornamentation - 10.8 - Rear Bumper

McLaren McLaren 765LT

Find Your Part

McLaren McLaren 765LT - 10 - EXTERIOR ORNAMENTATION - 10.8 - REAR BUMPER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14A4456CP REAR PDC BEZEL COVER $23.29 To Order
Photo Part No Description Price (each) Stock
14AA414CP BRACKET - REAR LAMP MOUNTING - LH $94.55 To Order
Photo Part No Description Price (each) Stock
14AA415CP BRACKET - REAR LAMP MOUNTING - RH $94.55 To Order
Photo Part No Description Price (each) Stock
14M0005CP DECOUPLING RING-PDC SENSOR $2.88 To Order
Photo Part No Description Price (each) Stock
14AB392RP ASSY BUMPER SKIN REAR-PDC - CAMERA Enquire To Order
14AB395RP ASSY-BUMPER SKIN-REAR Enquire To Order
Photo Part No Description Price (each) Stock
14AA932RP REAR BUMPER CAMERA BEZEL COVER $61.71 To Order
Photo Part No Description Price (each) Stock
14AA840RP RR BMPR NUMB PLATE LAMP COVER $50.04 To Order
Photo Part No Description Price (each) Stock
14AB565RP FOAM BUMPER REAR FED Enquire To Order
Photo Part No Description Price (each) Stock
14AB327RP ASSY REAR BUMPER LOWER Enquire To Order
14AB328RP ASSY REAR BUMPER LOWER PDC Enquire To Order
Photo Part No Description Price (each) Stock
14MA132RP PDC SENSOR-PAINTED CTR PANEL $102.96 To Order
Photo Part No Description Price (each) Stock
14AA423RP MLDG STONE PROTECTION RR LH $94.33 To Order
Photo Part No Description Price (each) Stock
14AA424RP MLDG STONE PROTECTION RR RH $94.33 To Order
Photo Part No Description Price (each) Stock
14AA833RP RR BPR REINF BRACKET $68.63 To Order
Photo Part No Description Price (each) Stock
14AA835RP REAR BUMPER HEATSHIELD BRACKET Enquire To Order
14AB378RP REAR BUMPER HEATSHIELD BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14AB418RP REAR BUMPER REFLECTOR BRACKET - LH Enquire To Order
Photo Part No Description Price (each) Stock
14AA882RP REAR BUMPER REFLECTOR BRACKET - RH Enquire To Order
14AB833RP REAR BUMPER REFLECTOR BRACKET - RH $51.34 To Order
Photo Part No Description Price (each) Stock
14AB329RP ASSY REAR BUMPER SIDE BLADE LH Enquire To Order
Photo Part No Description Price (each) Stock
14AA238RP ASSY REAR BUMPER SIDE BLADE RH Enquire To Order
Photo Part No Description Price (each) Stock
14AB243RP ECU COVER PROTECTION TAPE R LH $12.03 To Order
Photo Part No Description Price (each) Stock
14AB244RP ECU COVER PROTECTION TAPE R RH $15.03 To Order
Photo Part No Description Price (each) Stock
14AB234RP REAR AERO BLADE PROTECTION - TAPE R LH $8.85 To Order
Photo Part No Description Price (each) Stock
14AB235RP REAR AERO BLADE PROTECTION - TAPE R RH $8.85 To Order
Photo Part No Description Price (each) Stock
14AB453RP BMPR RR LWR BLADE-LH $45.84 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA565 BOLT - HEX HEAD - FLANGE - M6X12 Enquire To Order
Photo Part No Description Price (each) Stock
11A7405CP CLIP - HARNESS $18.11 To Order
Photo Part No Description Price (each) Stock
00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RB213 CLIP-U NUT-PT-M6X1.5-6-SS-00 Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC056 Washer - M5x12.5x1 Form C Enquire To Order
Photo Part No Description Price (each) Stock
00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM Enquire To Order
Photo Part No Description Price (each) Stock
14AB281RP HEATSHIELD-REAR CAMERA AND - LAMPS Enquire To Order
Photo Part No Description Price (each) Stock
14AA486RP RR BUMPER OUTER MACH LH Enquire To Order
Photo Part No Description Price (each) Stock
14AB346RP RR BUMPER OUTER MACH RH Enquire To Order
Photo Part No Description Price (each) Stock
14AA903RP PDC BEZEL RH RR OTR Enquire To Order
Photo Part No Description Price (each) Stock
14AA902RP PDC BEZEL LH RR OTR Enquire To Order
Photo Part No Description Price (each) Stock
00RB194 CLIP - U NUT NPT - M6X0.5-4-MS-78 Enquire To Order
Photo Part No Description Price (each) Stock
11A4758CP BLACK DECAL - BODYSIDE REAR LOWER $14.76 To Order
View All

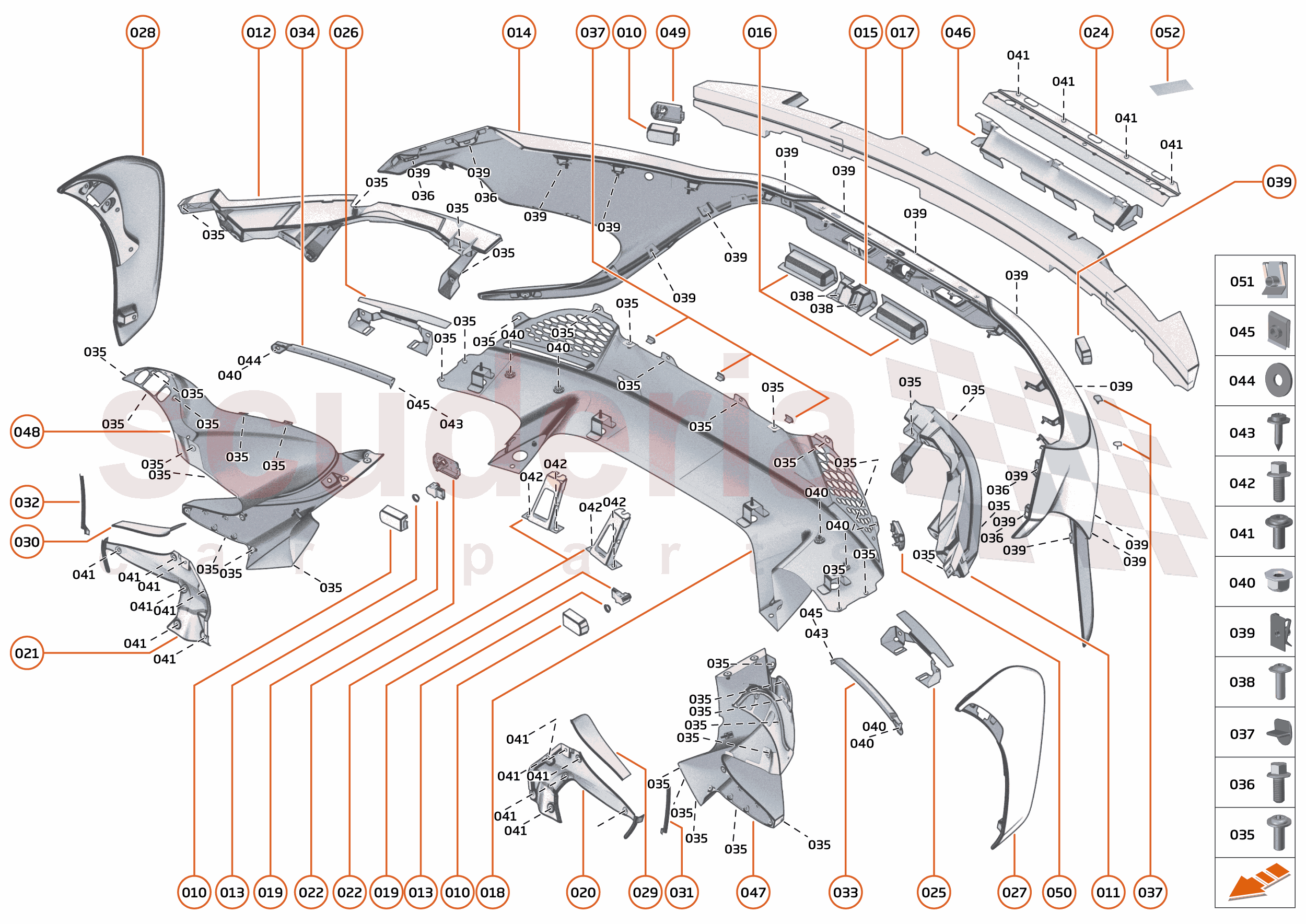

10 - EXTERIOR ORNAMENTATION - 10.8 - REAR BUMPER of McLaren McLaren McLaren 765LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14A4456CP
REAR PDC BEZEL COVER
Row ID: ID__14A4456CP_ContPgHS; Resolution: Available; 		$23.29 4
011 14AA414CP
BRACKET - REAR LAMP MOUNTING - LH
Row ID: ID__14AA414CP_ContPgHS; Resolution: Available; 		$94.55 1
012 14AA415CP
BRACKET - REAR LAMP MOUNTING - RH
Row ID: ID__14AA415CP_ContPgHS; Resolution: Available; 		$94.55 1
013 14M0005CP
DECOUPLING RING-PDC SENSOR
Row ID: ID__14M0005CP_ContPgHS; Resolution: Available; 		$2.88 2
014 14AB392RP
ASSY BUMPER SKIN REAR-PDC - CAMERA
Row ID: ID__14AB392RP_ContPgHS; 		- 1 Enquire
014 14AB395RP
ASSY-BUMPER SKIN-REAR
Row ID: ID__14AB395RP_ContPgHS; 		- 1 Enquire
015 14AA932RP
REAR BUMPER CAMERA BEZEL COVER
Row ID: ID__14AA932RP_ContPgHS; Resolution: Available; 		$61.71 1
016 14AA840RP
RR BMPR NUMB PLATE LAMP COVER
Row ID: ID__14AA840RP_ContPgHS; Resolution: Available; 		$50.04 2
017 14AB565RP
FOAM BUMPER REAR FED
Row ID: ID__14AB565RP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 14AB327RP
ASSY REAR BUMPER LOWER
Row ID: ID__14AB327RP_ContPgHS; 		- 1 Enquire
018 14AB328RP
ASSY REAR BUMPER LOWER PDC
Row ID: ID__14AB328RP_ContPgHS; 		- 1 Enquire
019 14MA132RP
PDC SENSOR-PAINTED CTR PANEL
Row ID: ID__14MA132RP_ContPgHS; 		$102.96 2
020 14AA423RP
MLDG STONE PROTECTION RR LH
Row ID: ID__14AA423RP_ContPgHS; Resolution: Available; 		$94.33 1
021 14AA424RP
MLDG STONE PROTECTION RR RH
Row ID: ID__14AA424RP_ContPgHS; Resolution: Available; 		$94.33 1
022 14AA833RP
RR BPR REINF BRACKET
Row ID: ID__14AA833RP_ContPgHS; Resolution: Available; 		$68.63 2
024 14AA835RP
REAR BUMPER HEATSHIELD BRACKET
Row ID: ID__14AA835RP_ContPgHS; Resolution: Available; 		- 1 Enquire
024 14AB378RP
REAR BUMPER HEATSHIELD BRACKET
Row ID: ID__14AB378RP_ContPgHS; Resolution: Available; 		- 1 Enquire
025 14AB418RP
REAR BUMPER REFLECTOR BRACKET - LH
Row ID: ID__14AB418RP_ContPgHS; Resolution: Available; 		- 1 Enquire
026 14AA882RP
REAR BUMPER REFLECTOR BRACKET - RH
Row ID: ID__14AA882RP_ContPgHS; Resolution: Available; 		- 1 Enquire
026 14AB833RP
REAR BUMPER REFLECTOR BRACKET - RH
Row ID: ID__14AB833RP_ContPgHS; Resolution: Available; 		$51.34 1
027 14AB329RP
ASSY REAR BUMPER SIDE BLADE LH
Row ID: ID__14AB329RP_ContPgHS; 		- 1 Enquire
028 14AA238RP
ASSY REAR BUMPER SIDE BLADE RH
Row ID: ID__14AA238RP_ContPgHS; 		- 1 Enquire
029 14AB243RP
ECU COVER PROTECTION TAPE R LH
Row ID: ID__14AB243RP_ContPgHS; Resolution: Available; 		$12.03 1
030 14AB244RP
ECU COVER PROTECTION TAPE R RH
Row ID: ID__14AB244RP_ContPgHS; Resolution: Available; 		$15.03 1
031 14AB234RP
REAR AERO BLADE PROTECTION - TAPE R LH
Row ID: ID__14AB234RP_ContPgHS; Resolution: Available; 		$8.85 1
032 14AB235RP
REAR AERO BLADE PROTECTION - TAPE R RH
Row ID: ID__14AB235RP_ContPgHS; Resolution: Available; 		$8.85 1
033 14AB453RP
BMPR RR LWR BLADE-LH
Row ID: ID__14AB453RP_ContPgHS; Resolution: Available; 		$45.84 1
035 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID__00RA468_ContPgHS; Resolution: Available; 		- 34 Enquire
036 00RA565
BOLT - HEX HEAD - FLANGE - M6X12
Row ID: ID__00RA565_ContPgHS; Resolution: Available; 		- 4 Enquire
037 11A7405CP
CLIP - HARNESS
Row ID: ID__11A7405CP_ContPgHS; Resolution: Available; 		$18.11 5
038 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX
Row ID: ID__00RA492_ContPgHS; Resolution: Available; 		- 2 Enquire
039 00RB213
CLIP-U NUT-PT-M6X1.5-6-SS-00
Row ID: ID__00RB213_ContPgHS; Resolution: Available; 		- 16 Enquire
040 00RA582
NUT - M5 - HEX
Row ID: ID__00RA582_ContPgHS; Resolution: Available; 		- 6 Enquire
041 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID__00RA432_ContPgHS; Resolution: Available; 		- 26 Enquire
042 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 4 Enquire
043 00RA112
TORX SCREW-WASHER 4.2X16
Row ID: ID__00RA112_ContPgHS; Resolution: Available; 		- 2 Enquire
044 00RC056
Washer - M5x12.5x1 Form C
Row ID: ID__00RC056_ContPgHS; Resolution: Available; 		- 2 Enquire
045 00RB006
SPIER CLIP - 4.2X7 2.5X5.0 8MM
Row ID: ID__00RB006_ContPgHS; Resolution: Available; 		- 2 Enquire
046 14AB281RP
HEATSHIELD-REAR CAMERA AND - LAMPS
Row ID: ID__14AB281RP_ContPgHS; Resolution: Available; 		- 1 Enquire
047 14AA486RP
RR BUMPER OUTER MACH LH
Row ID: ID__14AA486RP_ContPgHS; 		- 1 Enquire
048 14AB346RP
RR BUMPER OUTER MACH RH
Row ID: ID__14AB346RP_ContPgHS; 		- - Enquire
049 14AA903RP
PDC BEZEL RH RR OTR
Row ID: ID__14AA903RP_ContPgHS; Resolution: Available; 		- 1 Enquire
050 14AA902RP
PDC BEZEL LH RR OTR
Row ID: ID__14AA902RP_ContPgHS; Resolution: Available; 		- - Enquire
051 00RB194
CLIP - U NUT NPT - M6X0.5-4-MS-78
Row ID: ID__00RB194_ContPgHS; Resolution: Available; 		- 14 Enquire
052 11A4758CP
BLACK DECAL - BODYSIDE REAR LOWER
Row ID: ID__11A4758CP_ContPgHS; Resolution: Available; 		$14.76 1
