10 - Exterior Ornamentation - 10.1 - Front Bumper

McLaren McLaren 765LT

Find Your Part

McLaren McLaren 765LT - 10 - EXTERIOR ORNAMENTATION - 10.1 - FRONT BUMPER

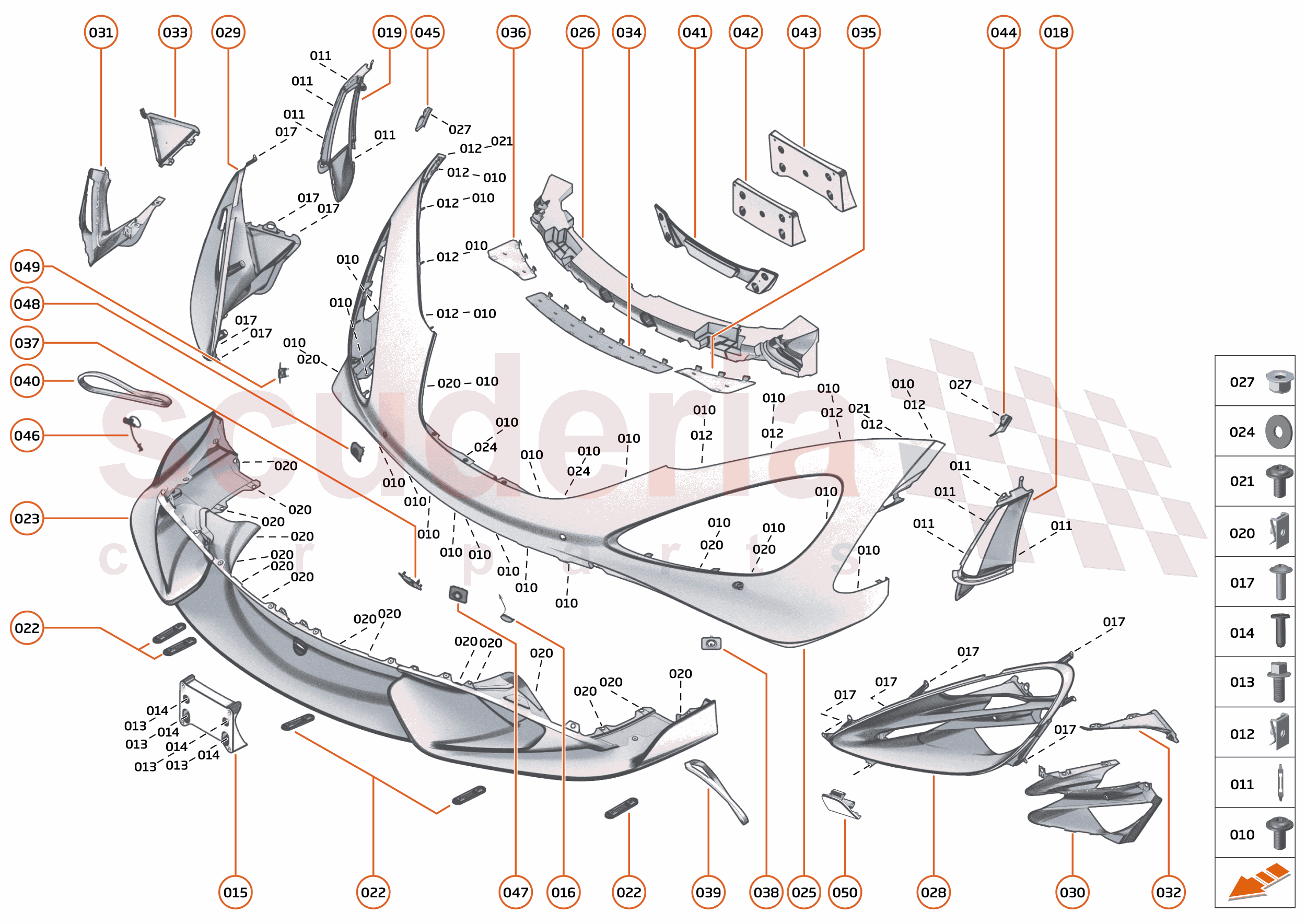

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RB176 CLIP - STEM Enquire To Order
Photo Part No Description Price (each) Stock
00RB194 CLIP - U NUT NPT - M6X0.5-4-MS-78 Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA249 NUT - M5 - RAWL Enquire To Order
Photo Part No Description Price (each) Stock
14A0143CP LICENSE PLATE - MOUNTING PLINTH - FEDERAL Enquire To Order
14AB858RP FR-LICENSE PLATE PLINTH-FED - FED Enquire To Order
Photo Part No Description Price (each) Stock
14AB353RP COVER - TOW EYE - FRONT BUMPER Enquire To Order
Photo Part No Description Price (each) Stock
00RA489 SCREW - M4X10 - FLANGED - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
14AA959CP ASSY-LTR SIDE EXIT LH Enquire To Order
14AB210CP DUCT EXIT SIDE - LOW TEMPERATURE RADIATOR - LH - CARBON Enquire To Order
14AD098CP ASSY PNL LTR SIDE EXIT CF LH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14AA960CP ASSY-LTR SIDE EXIT RH Enquire To Order
14AB213CP DUCT EXIT SIDE - LOW TEMPERATURE RADIATOR - RH - CARBON Enquire To Order
14AD365CP PANEL - LOW TEMPERATURE RADIATOR - CARBON - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RB213 CLIP-U NUT-PT-M6X1.5-6-SS-00 Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
11A8226RP SPLITTER - SKID BLOCK $62.95 To Order
Photo Part No Description Price (each) Stock
14AB975RP SPLITTER FRONT BUMPER Enquire To Order
14AB978RP SPLITTER FRONT BUMPER - CAMERA Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 CONVERTIBLE ROOF Enquire To Order
Photo Part No Description Price (each) Stock
14AB348RP ASSY BUMPER SKIN FRONT Enquire To Order
14AA126RP ASSY BUMPER SKIN FRONT PDC Enquire To Order
14AB349RP ASSY BUMPER SKIN FRONT PDC Enquire To Order
Photo Part No Description Price (each) Stock
14AA285RP FOAM-BUMPER-FRONT $593.76 To Order
14AB505RP FOAM-BUMPER-FRONT FED Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
14AA619CP HL BEZEL LH Enquire To Order
14AA507CP BEZEL - HEADLAMP - CARBON - LH Enquire To Order
Photo Part No Description Price (each) Stock
14AA620CP HL BEZEL RH $527.07 To Order
14AA508CP BEZEL - HEADLAMP - CARBON - RH $3,342.47 To Order
Photo Part No Description Price (each) Stock
14AA412CP LTR FRONT DUCT MIDDLE LH Enquire To Order
Photo Part No Description Price (each) Stock
14AA413CP LTR FRONT DUCT MIDDLE RH Enquire To Order
Photo Part No Description Price (each) Stock
14AC200CP LTR FRONT DUCT UPPER LH Enquire To Order
Photo Part No Description Price (each) Stock
14AC203CP LTR FRONT DUCT UPPER RH Enquire To Order
Photo Part No Description Price (each) Stock
14A3259CP SPLITTER - BUMPER PROTECTION - CENTRE $67.52 To Order
14A3468CP SPLITTER - BUMPER PROTECTION - OUTER LH $31.98 To Order
Photo Part No Description Price (each) Stock
14A3469CP SPLITTER - BUMPER PROTECTION - OUTER RH $102.02 To Order
Photo Part No Description Price (each) Stock
14A3751CP BEZEL - CAMERA - CARBON $114.25 To Order
Photo Part No Description Price (each) Stock
14AA845CP BEZEL - PARKING SENSOR - FRONT - OUTER - LH $51.14 To Order
Photo Part No Description Price (each) Stock
14A3269CP FOAM - LOWER LTR - LH $12.03 To Order
14A4427CP FOAM - LOWER LTR - LH $10.75 To Order
Photo Part No Description Price (each) Stock
14A3271CP FOAM - LOWER LTR - RH $42.64 To Order
14A4428CP FOAM - LOWER LTR - RH $10.75 To Order
Photo Part No Description Price (each) Stock
14A0141CP LICENSE PLATE - MOUNTING PLINTH - EUROPE Enquire To Order
14AB855RP FR-LICENSE PLATE PLINTH-EU - EU Enquire To Order
Photo Part No Description Price (each) Stock
14A0145CP LICENSE PLATE - MOUNTING PLINTH - JAPAN Enquire To Order
14AB856RP FR-LICENSE PLATE PLINTH-JAPAN - JAPAN Enquire To Order
Photo Part No Description Price (each) Stock
14AC615CP LICENSE PLATE - MOUNTING PLINTH - FOR CN+BR+PH+AR $100.94 To Order
14AA824RP FR-LICENSE PLATE PLINTH - PHI -L400XH140 Enquire To Order
Photo Part No Description Price (each) Stock
14AB083RP TYRE SPAT MLDG LT LH Enquire To Order
Photo Part No Description Price (each) Stock
14AB084RP TYRE SPAT MLDG LT RH Enquire To Order
Photo Part No Description Price (each) Stock
11M0426CP SENSOR - EXTERIOR TEMPERATURE $124.48 To Order
Photo Part No Description Price (each) Stock
14AA846CP PDC BEZEL LH FR INR $48.12 To Order
Photo Part No Description Price (each) Stock
14AA847CP PDC BEZEL RH FR INR $48.12 To Order
Photo Part No Description Price (each) Stock

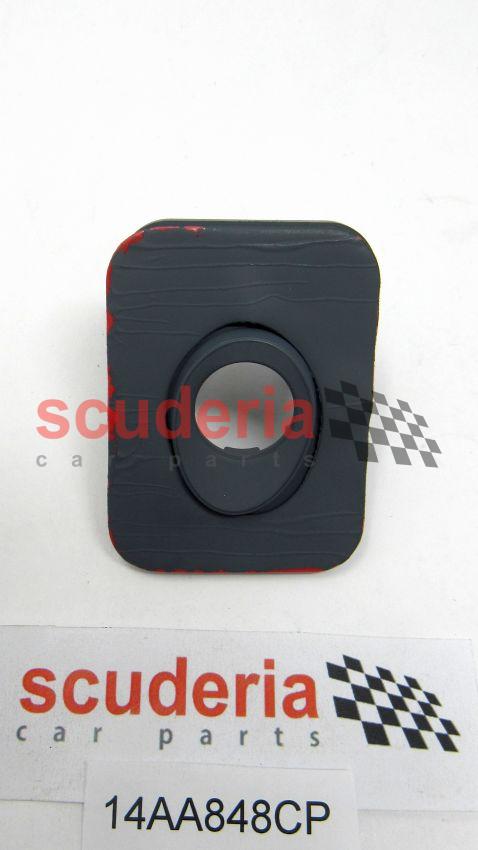

14AA848CP PDC BEZEL RH FR OTR $147.74 To Order
Photo Part No Description Price (each) Stock
14AB612RP ASSY COVER TOW EYE $591.16 To Order
View All
10 - EXTERIOR ORNAMENTATION - 10.1 - FRONT BUMPER of McLaren McLaren McLaren 765LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA409
BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS
Row ID: ID__00RA409_ContPgHS; Resolution: Available; 		- 27 Enquire
011 00RB176
CLIP - STEM
Row ID: ID__00RB176_ContPgHS; Resolution: Available; 		- 8 Enquire
012 00RB194
CLIP - U NUT NPT - M6X0.5-4-MS-78
Row ID: ID__00RB194_ContPgHS; Resolution: Available; 		- 8 Enquire
013 00RA064
BOLT - M5X12 - HEX
Row ID: ID__00RA064_ContPgHS; Resolution: Available; 		- 4 Enquire
014 00RA249
NUT - M5 - RAWL
Row ID: ID__00RA249_ContPgHS; Resolution: Available; 		- 4 Enquire
015 14A0143CP
LICENSE PLATE - MOUNTING PLINTH - FEDERAL
Row ID: ID__14A0143CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 14AB858RP
FR-LICENSE PLATE PLINTH-FED - FED
Row ID: ID__14AB858RP_ContPgHS; 		- 1 Enquire
016 14AB353RP
COVER - TOW EYE - FRONT BUMPER
Row ID: ID__14AB353RP_ContPgHS; 		- 1 Enquire
017 00RA489
SCREW - M4X10 - FLANGED - BUTTON HEAD
Row ID: ID__00RA489_ContPgHS; Resolution: Available; 		- 10 Enquire
018 14AA959CP
ASSY-LTR SIDE EXIT LH
Row ID: ID__14AA959CP_ContPgHS; 		- 1 Enquire
018 14AB210CP
DUCT EXIT SIDE - LOW TEMPERATURE RADIATOR - LH - CARBON
Row ID: ID__14AB210CP_ContPgHS; 		- 1 Enquire
018 14AD098CP
ASSY PNL LTR SIDE EXIT CF LH
Row ID: ID__14AD098CP_ContPgHS; 		- 1 Enquire
018 14AD363CP
PANEL - LOW TEMPERATURE RADIATOR - CARBON - LH
Row ID: ID__14AD363CP_ContPgHS; 		- 1 Enquire
019 14AA960CP
ASSY-LTR SIDE EXIT RH
Row ID: ID__14AA960CP_ContPgHS; 		- 1 Enquire
019 14AB213CP
DUCT EXIT SIDE - LOW TEMPERATURE RADIATOR - RH - CARBON
Row ID: ID__14AB213CP_ContPgHS; 		- 1 Enquire
019 14AD365CP
PANEL - LOW TEMPERATURE RADIATOR - CARBON - RH
Row ID: ID__14AD365CP_ContPgHS; 		- 1 Enquire
020 00RB213
CLIP-U NUT-PT-M6X1.5-6-SS-00
Row ID: ID__00RB213_ContPgHS; Resolution: Available; 		- 19 Enquire
021 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID__00RA468_ContPgHS; Resolution: Available; 		- 2 Enquire
022 11A8226RP
SPLITTER - SKID BLOCK
Row ID: ID__11A8226RP_ContPgHS; Resolution: Available; 		$62.95 5
023 14AB975RP
SPLITTER FRONT BUMPER
Row ID: ID__14AB975RP_ContPgHS; 		- 1 Enquire
023 14AB978RP
SPLITTER FRONT BUMPER - CAMERA
Row ID: ID__14AB978RP_ContPgHS; 		- 1 Enquire
024 00RC077
CONVERTIBLE ROOF
Row ID: ID__00RC077_ContPgHS; Resolution: Available; 		- 2 Enquire
025 14AB348RP
ASSY BUMPER SKIN FRONT
Row ID: ID__14AB348RP_ContPgHS; 		- 1 Enquire
025 14AA126RP
ASSY BUMPER SKIN FRONT PDC
Row ID: ID__14AA126RP_ContPgHS; Resolution: Available; 		- 1 Enquire
025 14AB349RP
ASSY BUMPER SKIN FRONT PDC
Row ID: ID__14AB349RP_ContPgHS; 		- 1 Enquire
026 14AA285RP
FOAM-BUMPER-FRONT
Row ID: ID__14AA285RP_ContPgHS; Resolution: Available; 		$593.76 1
026 14AB505RP
FOAM-BUMPER-FRONT FED
Row ID: ID__14AB505RP_ContPgHS; Resolution: Available; 		- 1 Enquire
027 00RA555
NUT - M5X0.8 - HEX LOCKED
Row ID: ID__00RA555_ContPgHS; Resolution: Available; 		- 1 Enquire
028 14AA619CP
HL BEZEL LH
Row ID: ID__14AA619CP_ContPgHS; 		- 1 Enquire
028 14AA507CP
BEZEL - HEADLAMP - CARBON - LH
Row ID: ID__14AA507CP_ContPgHS; 		- 1 Enquire
029 14AA620CP
HL BEZEL RH
Row ID: ID__14AA620CP_ContPgHS; 		$527.07 1
029 14AA508CP
BEZEL - HEADLAMP - CARBON - RH
Row ID: ID__14AA508CP_ContPgHS; 		$3,342.47 1
030 14AA412CP
LTR FRONT DUCT MIDDLE LH
Row ID: ID__14AA412CP_ContPgHS; 		- 1 Enquire
031 14AA413CP
LTR FRONT DUCT MIDDLE RH
Row ID: ID__14AA413CP_ContPgHS; 		- 1 Enquire
032 14AC200CP
LTR FRONT DUCT UPPER LH
Row ID: ID__14AC200CP_ContPgHS; 		- 1 Enquire
033 14AC203CP
LTR FRONT DUCT UPPER RH
Row ID: ID__14AC203CP_ContPgHS; 		- 1 Enquire
034 14A3259CP
SPLITTER - BUMPER PROTECTION - CENTRE
Row ID: ID__14A3259CP_ContPgHS; Resolution: Available; 		$67.52 1
034 14A3468CP
SPLITTER - BUMPER PROTECTION - OUTER LH
Row ID: ID__14A3468CP_ContPgHS; Resolution: Available; 		$31.98 1
035 14A3469CP
SPLITTER - BUMPER PROTECTION - OUTER RH
Row ID: ID__14A3469CP_ContPgHS; Resolution: Available; 		$102.02 1
037 14A3751CP
BEZEL - CAMERA - CARBON
Row ID: ID__14A3751CP_ContPgHS; Resolution: Available; 		$114.25 1
038 14AA845CP
BEZEL - PARKING SENSOR - FRONT - OUTER - LH
Row ID: ID__14AA845CP_ContPgHS; Resolution: Available; 		$51.14 1
039 14A3269CP
FOAM - LOWER LTR - LH
Row ID: ID__14A3269CP_ContPgHS; Resolution: Available; 		$12.03 1
039 14A4427CP
FOAM - LOWER LTR - LH
Row ID: ID__14A4427CP_ContPgHS; Resolution: Available; 		$10.75 1
040 14A3271CP
FOAM - LOWER LTR - RH
Row ID: ID__14A3271CP_ContPgHS; Resolution: Available; 		$42.64 1
040 14A4428CP
FOAM - LOWER LTR - RH
Row ID: ID__14A4428CP_ContPgHS; Resolution: Available; 		$10.75 1
041 14A0141CP
LICENSE PLATE - MOUNTING PLINTH - EUROPE
Row ID: ID__14A0141CP_ContPgHS; Resolution: Available; 		- 1 Enquire
041 14AB855RP
FR-LICENSE PLATE PLINTH-EU - EU
Row ID: ID__14AB855RP_ContPgHS; 		- 1 Enquire
042 14A0145CP
LICENSE PLATE - MOUNTING PLINTH - JAPAN
Row ID: ID__14A0145CP_ContPgHS; Resolution: Available; 		- 1 Enquire
042 14AB856RP
FR-LICENSE PLATE PLINTH-JAPAN - JAPAN
Row ID: ID__14AB856RP_ContPgHS; 		- 1 Enquire
043 14AC615CP
LICENSE PLATE - MOUNTING PLINTH - FOR CN+BR+PH+AR
Row ID: ID__14AC615CP_ContPgHS; Resolution: Available; 		$100.94 1
043 14AA824RP
FR-LICENSE PLATE PLINTH - PHI -L400XH140
Row ID: ID__14AA824RP_ContPgHS; Resolution: Available; 		- 1 Enquire
044 14AB083RP
TYRE SPAT MLDG LT LH
Row ID: ID__14AB083RP_ContPgHS; Resolution: Available; 		- 1 Enquire
045 14AB084RP
TYRE SPAT MLDG LT RH
Row ID: ID__14AB084RP_ContPgHS; Resolution: Available; 		- 1 Enquire
046 11M0426CP
SENSOR - EXTERIOR TEMPERATURE
Row ID: ID__11M0426CP_ContPgHS; Resolution: Available; 		$124.48 1
047 14AA846CP
PDC BEZEL LH FR INR
Row ID: ID__14AA846CP_ContPgHS; Resolution: Available; 		$48.12 1
048 14AA847CP
PDC BEZEL RH FR INR
Row ID: ID__14AA847CP_ContPgHS; Resolution: Available; 		$48.12 1
049 14AA848CP
PDC BEZEL RH FR OTR
Row ID: ID__14AA848CP_ContPgHS; Resolution: Available; 		$147.74 1
050 14AB612RP
ASSY COVER TOW EYE
Row ID: ID__14AB612RP_ContPgHS; 		$591.16 1

Haven't found what you're looking for?

More: McLaren Bumpers Tuning Parts Need help? Call us

View Cart / Checkout
