10 - EXTERIOR ORNAMENTATION - 10.7 - REAR FINISHERS AND GRILLES of McLaren McLaren McLaren 765LT

View All

McLaren McLaren 765LT - 10 - EXTERIOR ORNAMENTATION - 10.7 - REAR FINISHERS AND GRILLES

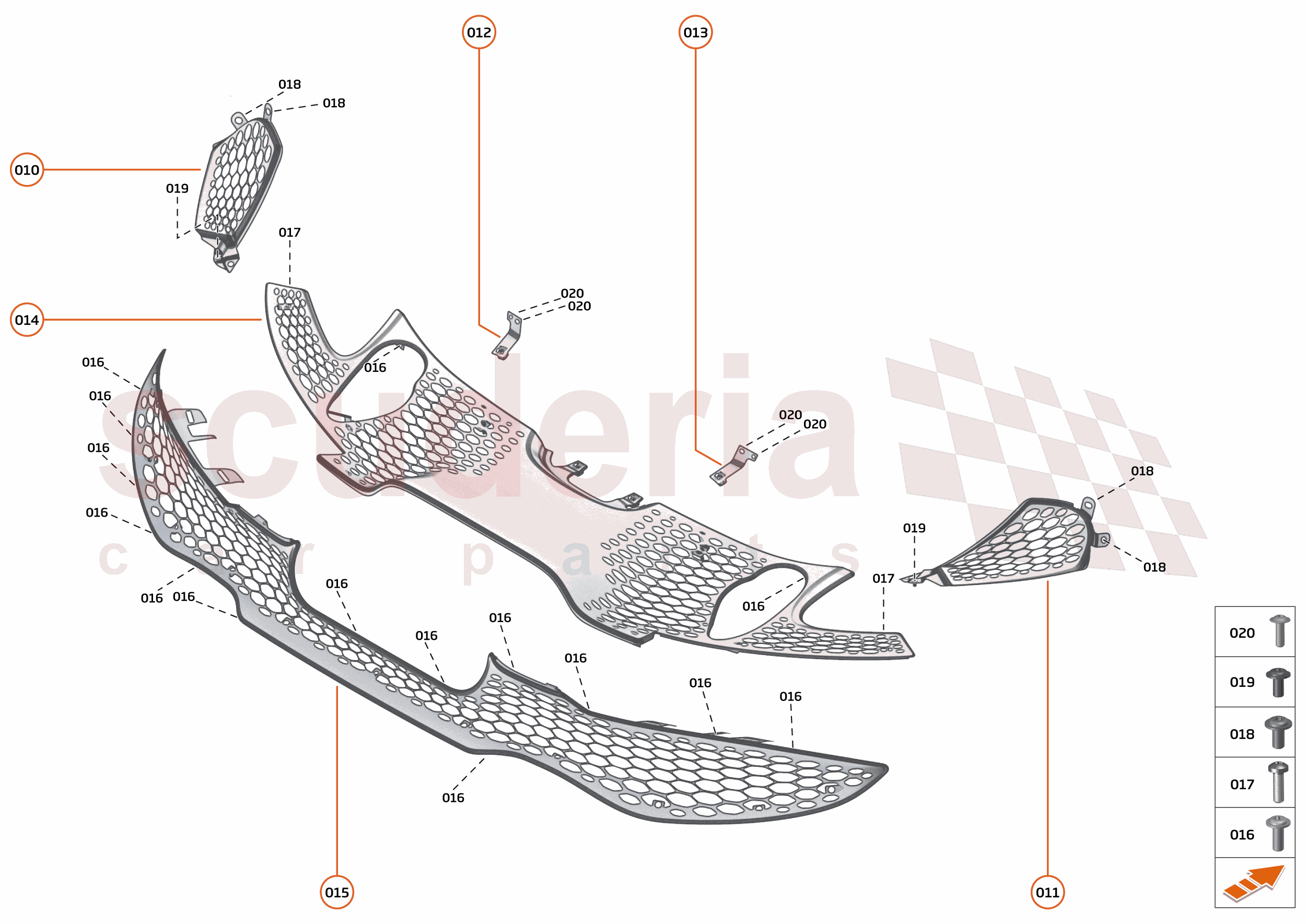

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14AB870RP	UNDERWING MESH LH	$344.85	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB871RP	UNDERWING MESH RH	$344.85	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA923RP	SPRT BRKT INR - UW PNL	$61.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB291RP	SPRT BRKT INR - UW PNL RH	$57.58	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA079RP	ASSY UNDERWING MESH CTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB402RP	REAR GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA464	SCREW - M4X12 - BUTTON HEAD - SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA303	SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14AB870RP	UNDERWING MESH LH	14AB870RP UNDERWING MESH LH Row ID: ID__14AB870RP_ContPgHS; Resolution: Available;	$344.85	1
011	14AB871RP	UNDERWING MESH RH	14AB871RP UNDERWING MESH RH Row ID: ID__14AB871RP_ContPgHS; Resolution: Available;	$344.85	1
012	14AA923RP	SPRT BRKT INR - UW PNL	14AA923RP SPRT BRKT INR - UW PNL Row ID: ID__14AA923RP_ContPgHS; Resolution: Available;	$61.56	2
013	14AB291RP	SPRT BRKT INR - UW PNL RH	14AB291RP SPRT BRKT INR - UW PNL RH Row ID: ID__14AB291RP_ContPgHS; Resolution: Available;	$57.58	1
014	14AA079RP	ASSY UNDERWING MESH CTR	14AA079RP ASSY UNDERWING MESH CTR Row ID: ID__14AA079RP_ContPgHS; Resolution: Available;	-	1	Enquire
015	14AB402RP	REAR GRILLE	14AB402RP REAR GRILLE Row ID: ID__14AB402RP_ContPgHS; Resolution: Available;	-	1	Enquire
016	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS; Resolution: Available;	-	15	Enquire
017	00RA464	SCREW - M4X12 - BUTTON HEAD - SOCKET	00RA464 SCREW - M4X12 - BUTTON HEAD - SOCKET Row ID: ID__00RA464_ContPgHS; Resolution: Available;	-	2	Enquire
018	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID__00RA468_ContPgHS; Resolution: Available;	-	4	Enquire
019	00RA303	SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK	00RA303 SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK Row ID: ID__00RA303_ContPgHS; Resolution: Available;	-	2	Enquire
020	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS; Resolution: Available;	-	4	Enquire
