13 - Ducts, Vents And Floors - 13.1 - Front Ducts And Vents

McLaren McLaren 720S Spider

Find Your Part

McLaren McLaren 720S Spider - 13 - DUCTS, VENTS AND FLOORS - 13.1 - FRONT DUCTS AND VENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14A0308CP DUCT - LOW TEMPERATURE RADIATOR - LH $264.35 To Order
Photo Part No Description Price (each) Stock
14AA416CP FOAM - LOW TEMPERATURE RADIATOR - UPPER - LH $9.08 To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U-NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
14A0309CP DUCT - LOW TEMPERATURE RADIATOR - RH $264.35 To Order
Photo Part No Description Price (each) Stock
14AB043CP FOAM - LOW TEMPERATURE RADIATOR - UPPER - RH $9.08 To Order
Photo Part No Description Price (each) Stock
11AA035CP FOAM GASKET - FRONT DUCT - END $18.57 To Order
Photo Part No Description Price (each) Stock
11AA036CP FOAM GASKET - FRONT DUCT - SIDE $18.57 To Order
Photo Part No Description Price (each) Stock
14A0310CP FRONT DUCT - LTR - REAR - LH $149.05 To Order
Photo Part No Description Price (each) Stock
14A0311CP FRONT DUCT - LTR - REAR - RH $149.05 To Order
Photo Part No Description Price (each) Stock
14A4693CP BRACE - UPPER - LH $49.83 To Order
Photo Part No Description Price (each) Stock
14A3069CP BRACKET - HORN - RH $58.89 To Order
View All

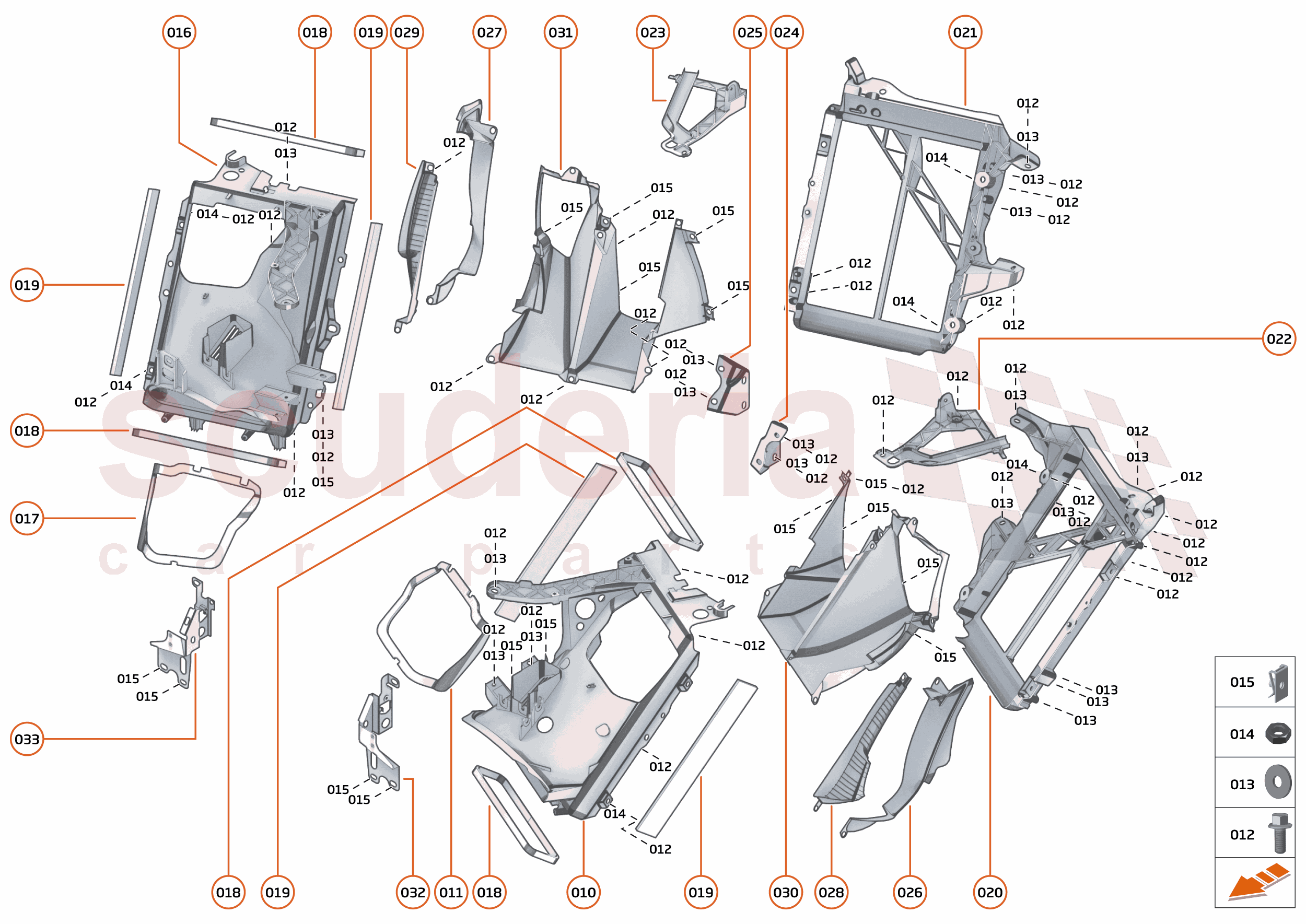

13 - DUCTS, VENTS AND FLOORS - 13.1 - FRONT DUCTS AND VENTS of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14A0308CP
DUCT - LOW TEMPERATURE RADIATOR - LH
Row ID: ID_DCAQ0101_14A0308CP_ContPgHS; Resolution: Available; 		$264.35 1
011 14AA416CP
FOAM - LOW TEMPERATURE RADIATOR - UPPER - LH
Row ID: ID_DCAQ0102_14AA416CP_ContPgHS; Resolution: Available; 		$9.08 1
012 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 1 Enquire
013 00RC064
WASHER - M6X18X1.6 - BLACK
Row ID: ID__00RC064_ContPgHS; Resolution: Available; 		- 1 Enquire
014 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID__00RA011_ContPgHS; Resolution: Available; 		- 1 Enquire
015 00RB183
CLIP - U-NUT - M6
Row ID: ID__00RB183_ContPgHS; Resolution: Available; 		- 1 Enquire
016 14A0309CP
DUCT - LOW TEMPERATURE RADIATOR - RH
Row ID: ID_DCAQ0103_14A0309CP_ContPgHS; Resolution: Available; 		$264.35 1
017 14AB043CP
FOAM - LOW TEMPERATURE RADIATOR - UPPER - RH
Row ID: ID_DCAQ0104_14AB043CP_ContPgHS; Resolution: Available; 		$9.08 1
018 11AA035CP
FOAM GASKET - FRONT DUCT - END
Row ID: ID_DCAQ0105_11AA035CP_ContPgHS; Resolution: Available; 		$18.57 4
019 11AA036CP
FOAM GASKET - FRONT DUCT - SIDE
Row ID: ID_DCAQ0106_11AA036CP_ContPgHS; Resolution: Available; 		$18.57 4
020 14A0310CP
FRONT DUCT - LTR - REAR - LH
Row ID: ID_DCAQ0107_14A0310CP_ContPgHS; Resolution: Available; 		$149.05 1
021 14A0311CP
FRONT DUCT - LTR - REAR - RH
Row ID: ID_DCAQ0108_14A0311CP_ContPgHS; Resolution: Available; 		$149.05 1
022 14A4693CP
BRACE - UPPER - LH
Row ID: ID_DCAQ0109_14A4693CP_ContPgHS; Resolution: Available; 		$49.83 1
033 14A3069CP
BRACKET - HORN - RH
Row ID: ID_DCAQ0120_14A3069CP_ContPgHS; Resolution: Available; 		$58.89 1
