McLaren McLaren 720S Spider - 13 - DUCTS, VENTS AND FLOORS - 13.2 - SIDE DUCTS AND VENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AA221SP SIDE DUCT SUPPORT BRACE SPIDER LH $51.60 To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
14A0323CP GRILLE - SIDE DUCT - LH $409.23 To Order
Photo Part No Description Price (each) Stock
14A2349CP FOAM - RADIATOR DUCT - REAR $11.06 To Order
Photo Part No Description Price (each) Stock
14A2350CP FOAM - RADIATOR DUCT - FRONT - LONG - LH $6.02 To Order
Photo Part No Description Price (each) Stock
14A3025CP FOAM - RADIATOR DUCT - FRONT - SHORT - LH $5.75 To Order
Photo Part No Description Price (each) Stock
14AB145CP FOAM - RADIATOR DUCT - HVAC PIPE - LH $5.59 To Order
Photo Part No Description Price (each) Stock
14AC738CP DUCT SIDE INR LH Enquire To Order
Photo Part No Description Price (each) Stock
14A0328CP GRILLE - SIDE DUCT - RH $409.23 To Order
Photo Part No Description Price (each) Stock
14A2353CP FOAM - RADIATOR DUCT - FRONT - RH $7.89 To Order
Photo Part No Description Price (each) Stock
14AC740CP DUCT SIDE INR RH Enquire To Order
Photo Part No Description Price (each) Stock
14AC741CP DUCT SIDE OTR RH UPR LHD Enquire To Order
14AC743CP DUCT SIDE OTR RH UPR RHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA609 SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85 Enquire To Order
Photo Part No Description Price (each) Stock
13MA028CP SWITCH - DOOR LOCK - PIEZOELECTRIC - TOUCH SENSITIVE $206.19 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U-NUT - M6 Enquire To Order
View All

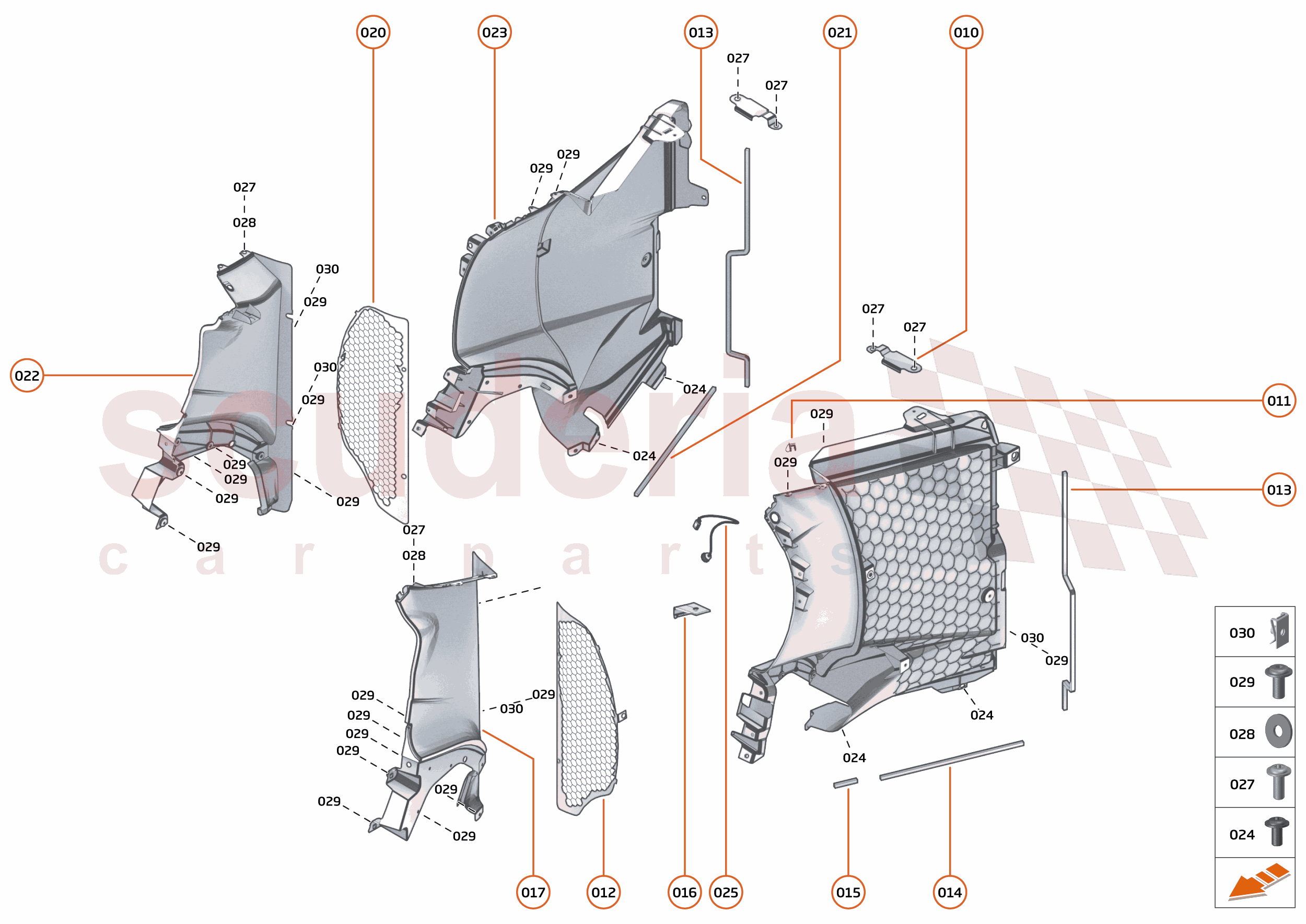

13 - DUCTS, VENTS AND FLOORS - 13.2 - SIDE DUCTS AND VENTS of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AA221SP
SIDE DUCT SUPPORT BRACE SPIDER LH
Row ID: ID_DCAQ0215_14AA221SP_ContPgHS; Resolution: Available; 		$51.60 1
011 00RG025
CABLE TIE - PARALLEL - EDGE PANEL
Row ID: ID_XXXXXXZZ_00RG025_ContPgHS; Resolution: Available; 		- 1 Enquire
012 14A0323CP
GRILLE - SIDE DUCT - LH
Row ID: ID_DCAQ0207_14A0323CP_ContPgHS; Resolution: Available; 		$409.23 1
013 14A2349CP
FOAM - RADIATOR DUCT - REAR
Row ID: ID_DCAQ0213_14A2349CP_ContPgHS; Resolution: Available; 		$11.06 2
014 14A2350CP
FOAM - RADIATOR DUCT - FRONT - LONG - LH
Row ID: ID_DCAQ0211_14A2350CP_ContPgHS; Resolution: Available; 		$6.02 1
015 14A3025CP
FOAM - RADIATOR DUCT - FRONT - SHORT - LH
Row ID: ID_DCAQ0209_14A3025CP_ContPgHS; Resolution: Available; 		$5.75 1
016 14AB145CP
FOAM - RADIATOR DUCT - HVAC PIPE - LH
Row ID: ID_DCAQ0210_14AB145CP_ContPgHS; Resolution: Available; 		$5.59 1
017 14AC738CP
DUCT SIDE INR LH
Row ID: ID_DCAQ0216_14AC738CP_ContPgHS; 		- 1 Enquire
018 14AC739CP
DUCT SIDE OTR LH UPR LHD
Row ID: ID_DCAQ0217_14AC739CP_ContPgHS; 		- 1 Enquire
018 14AC742CP
DUCT SIDE OTR LH UPR RHD
Row ID: ID_DCAN0222_14AC742CP_ContPgHS; Resolution: Available; 		- 1 Enquire
019 14AA225SP
SIDE DUCT SUPPORT BRACE SPIDER RH
Row ID: ID_DCAQ0219_14AA225SP_ContPgHS; Resolution: Available; 		$61.42 1
020 14A0328CP
GRILLE - SIDE DUCT - RH
Row ID: ID_DCAQ0208_14A0328CP_ContPgHS; Resolution: Available; 		$409.23 1
021 14A2353CP
FOAM - RADIATOR DUCT - FRONT - RH
Row ID: ID_DCAQ0212_14A2353CP_ContPgHS; Resolution: Available; 		$7.89 1
022 14AC740CP
DUCT SIDE INR RH
Row ID: ID_DCAN0220_14AC740CP_ContPgHS; 		- 1 Enquire
023 14AC741CP
DUCT SIDE OTR RH UPR LHD
Row ID: ID_DCAN0221_14AC741CP_ContPgHS; 		- 1 Enquire
023 14AC743CP
DUCT SIDE OTR RH UPR RHD
Row ID: ID_DCAN0223_14AC743CP_ContPgHS; Resolution: Available; 		- 1 Enquire
024 00RA609
SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85
Row ID: ID_XXXXXXZV_00RA609_ContPgHS; Resolution: Available; 		- 4 Enquire
025 13MA028CP
SWITCH - DOOR LOCK - PIEZOELECTRIC - TOUCH SENSITIVE
Row ID: ID_DCAQ0218_13MA028CP_ContPgHS; Resolution: Available; 		$206.19 1
027 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID_XXXXXXZV_00RA468_ContPgHS; Resolution: Available; 		- 6 Enquire
028 00RC043
WASHER - M6XOD25
Row ID: ID_DCAP0119_00RC043_ContPgHS; Resolution: Available; 		- 2 Enquire
029 00RA409
BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS
Row ID: ID_XXXXXXZV_00RA409_ContPgHS; Resolution: Available; 		- 24 Enquire
030 00RB183
CLIP - U-NUT - M6
Row ID: ID_XXXXXXZV_00RB183_ContPgHS; Resolution: Available; 		- 6 Enquire
