15 - HVAC - 15.1 - HVAC INLET AND DISTRIBUTION of McLaren McLaren McLaren 720S Spider

View All

McLaren McLaren 720S Spider - 15 - HVAC - 15.1 - HVAC INLET AND DISTRIBUTION

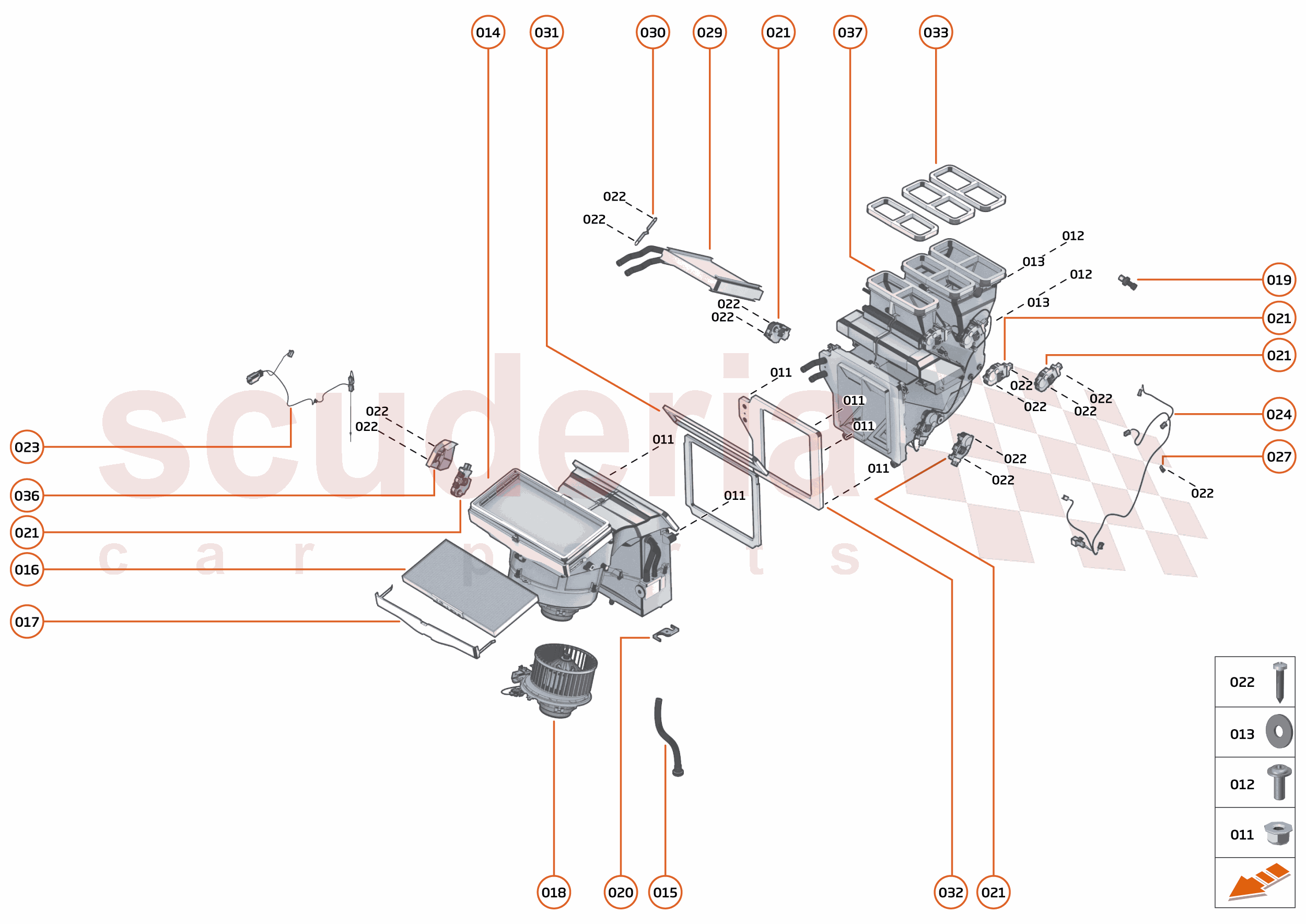

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA369	Screw - Plas Tech - M6x16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC075	WASHER - NYLON - 14.35X6.45X2.39	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3588CP	Distribution Unit - HVAC	$1,056.18	To Order
	13AB029CP	Intake Unit - HVAC - R1234yf	$1,267.34	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7034CP	Drain Tube - HVAC	$43.61	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4152CP	Filter - Cabin - HVAC	$81.23	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4612CP	Access Panel - HVAC Inlet - Filter	$66.36	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4153CP	MOTOR - CONTROL MODULE - HVAC	$682.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11A6627CP	SENSOR - PRESSURE - HVAC	$283.92	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_XXXXXXZV_00RA055_ContPgHS; Resolution: Available;	-	6	Enquire
012	00RA369	Screw - Plas Tech - M6x16mm	00RA369 Screw - Plas Tech - M6x16mm Row ID: ID_XXXXXXZV_00RA369_ContPgHS; Resolution: Available;	-	2	Enquire
013	00RC075	WASHER - NYLON - 14.35X6.45X2.39	00RC075 WASHER - NYLON - 14.35X6.45X2.39 Row ID: ID_XXXXXXZW_00RC075_ContPgHS; Resolution: Available;	-	2	Enquire
014	13A3588CP	Distribution Unit - HVAC	13A3588CP Distribution Unit - HVAC Row ID: ID_DCAS0103_13A3588CP_ContPgHS; Resolution: Available;	$1,056.18	1
014	13AB029CP	Intake Unit - HVAC - R1234yf	13AB029CP Intake Unit - HVAC - R1234yf Row ID: ID_DCAS0102_13AB029CP_ContPgHS; Resolution: Available;	$1,267.34	1
015	11A7034CP	Drain Tube - HVAC	11A7034CP Drain Tube - HVAC Row ID: ID_DCAS0104_11A7034CP_ContPgHS; Resolution: Available;	$43.61	1
016	11A4152CP	Filter - Cabin - HVAC	11A4152CP Filter - Cabin - HVAC Row ID: ID_DCAS0105_11A4152CP_ContPgHS; Resolution: Available;	$81.23	1
017	11A4612CP	Access Panel - HVAC Inlet - Filter	11A4612CP Access Panel - HVAC Inlet - Filter Row ID: ID_DCAS0125_11A4612CP_ContPgHS; Resolution: Available;	$66.36	1
018	11A4153CP	MOTOR - CONTROL MODULE - HVAC	11A4153CP MOTOR - CONTROL MODULE - HVAC Row ID: ID_DCAS0106_11A4153CP_ContPgHS; Resolution: Available;	$682.05	1
019	11A6627CP	SENSOR - PRESSURE - HVAC	11A6627CP SENSOR - PRESSURE - HVAC Row ID: ID_DCAS0107_11A6627CP_ContPgHS; Resolution: Available;	$283.92	1
