Find Your Part

View All

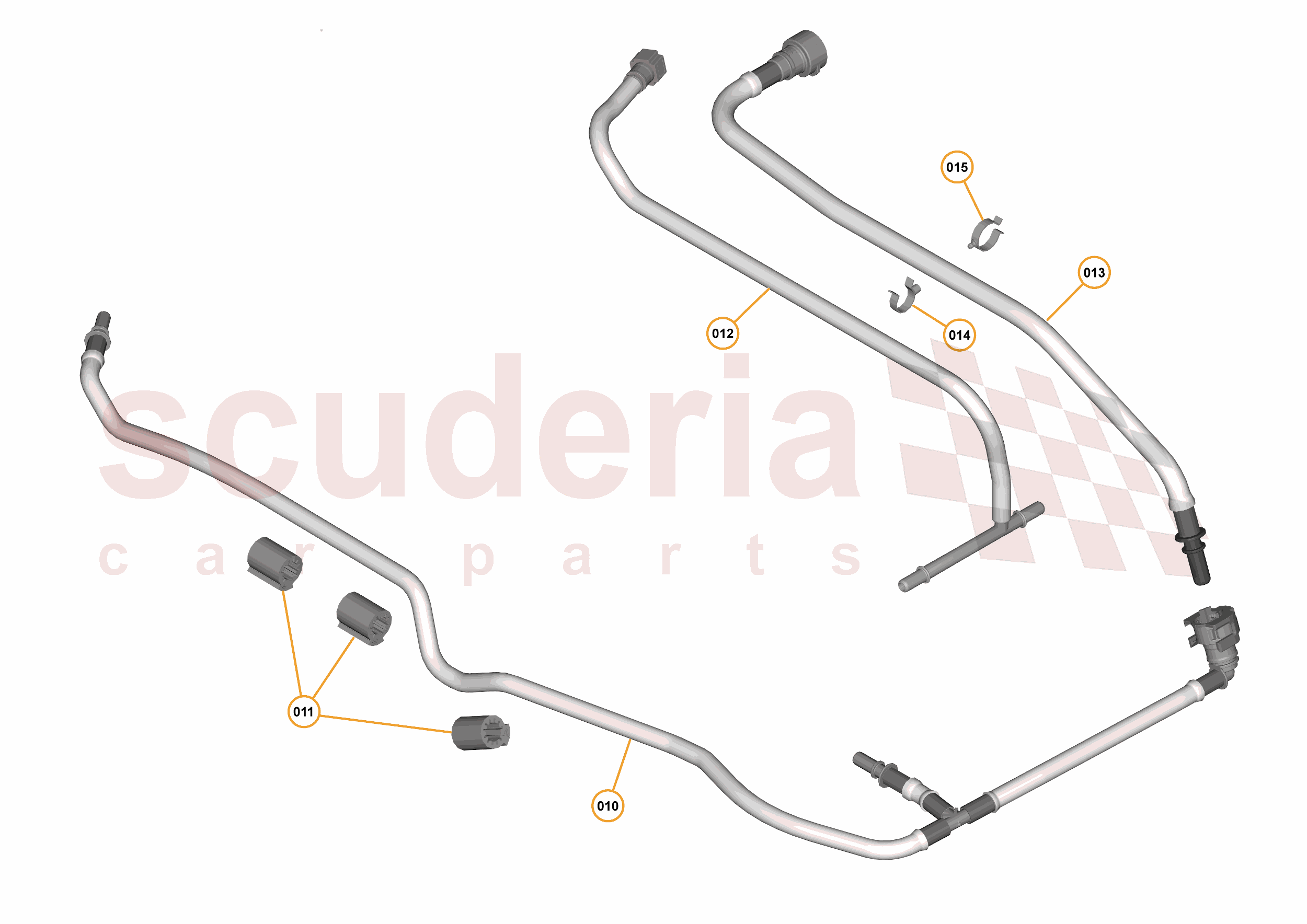

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11K0259RP	Pipe - Fuel Feed - Tank to Engine Bay	$117.32	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA366	PIPE PROTECTOR - 13MM ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0211CP	FUEL PURGE PIPE - BULKHEAD TO ENGINE	$91.78	To Order

Photo	Part No	Description	Price (each)	Stock
	13K0027CP	PIPE - FUEL FEED - BAY TO ENGINE	$73.53	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB141	Swivel Clip - Female CSC9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB008	CLIP - 18-20MM - MALE	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11K0259RP	Pipe - Fuel Feed - Tank to Engine Bay	11K0259RP Pipe - Fuel Feed - Tank to Engine Bay Row ID: ID_B0K10211_11K0259RP_ContPgHS; Resolution: Available;	$117.32	1
011	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID_B0K10212_00RA366_ContPgHS; Resolution: Available;	-	3	Enquire
012	11K0211CP	FUEL PURGE PIPE - BULKHEAD TO ENGINE	11K0211CP FUEL PURGE PIPE - BULKHEAD TO ENGINE Row ID: ID_B0K10209_11K0211CP_ContPgHS; Resolution: Available;	$91.78	1
013	13K0027CP	PIPE - FUEL FEED - BAY TO ENGINE	13K0027CP PIPE - FUEL FEED - BAY TO ENGINE Row ID: ID_B0K10210_13K0027CP_ContPgHS; Resolution: Available;	$73.53	1
014	00RB141	Swivel Clip - Female CSC9	00RB141 Swivel Clip - Female CSC9 Row ID: ID_B0K10204_00RB141_ContPgHS; Resolution: Available;	-	1	Enquire
015	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE Row ID: ID_B0K10205_00RB008_ContPgHS; Resolution: Available;	-	1	Enquire
