McLaren McLaren 675LT Coupe - 13 - K1 - FUEL SYSTEM - 13.1 - 01 - FUEL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11K0111CP Bush - Strap - Fuel Tank $32.83 To Order
Photo Part No Description Price (each) Stock
11K0110CP TURNBUCKLE - STRAP - FUEL TANK $28.57 To Order
Photo Part No Description Price (each) Stock
11K0109CP NUT - STRAP - FUEL TANK $11.28 To Order
Photo Part No Description Price (each) Stock
11K0139CP BRACKET - FUEL TANK MOUNTING - TENSIONER $118.76 To Order
Photo Part No Description Price (each) Stock
11K0105CP Stud Plate - M6x18 - Fuel Tank $29.35 To Order
Photo Part No Description Price (each) Stock
11K0102CP SPACER - TURNBUCKLE 8MM LONG - FUEL TANK $23.93 To Order
Photo Part No Description Price (each) Stock
00RG010 Nut Protector - M6 -Reevite Enquire To Order
Photo Part No Description Price (each) Stock
11K0112CP Bracket - Fuel Tank - Lower $43.11 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11K0064CP Controller - Fuel Pump $505.99 To Order
Photo Part No Description Price (each) Stock
00RA257 BOLT - M6X55 - HEX SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
00RA252 Screw - M6x20 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
11K0057CP FILTER - CHARCOAL $644.53 To Order
Photo Part No Description Price (each) Stock
13K0074CP PAD - FUEL TANK - BULKHEAD - LOWER Enquire To Order
Photo Part No Description Price (each) Stock
13K0075CP PAD - FUEL TANK - BULKHEAD - UPPER $38.03 To Order
Photo Part No Description Price (each) Stock
11K0229RP Pad - Fuel Tank - Upper - RH - 675LT $16.41 To Order
Photo Part No Description Price (each) Stock
13K0066CP RETAINING RING - FUEL TANK - ACCESS PLATE $29.55 To Order
Photo Part No Description Price (each) Stock
11K0049CP Seal - Fuel Tank - Access Plate Retaining Ring - Retaining Ring - 11K0051CP $38.35 To Order
11K0250CP SEAL - FUEL TANK - ACCESS PLATE RETAINING RING - FOR RETAINING RING 13K0066CP $39.68 To Order
Photo Part No Description Price (each) Stock
13K0073CP PAD - FUEL TANK - UPPER $34.40 To Order
Photo Part No Description Price (each) Stock
11M0986CP Harness - Fuel Cell $298.20 To Order
Photo Part No Description Price (each) Stock
11K0118CP RETAINING STRAP - FUEL TANK - RH Enquire To Order
Photo Part No Description Price (each) Stock
13K0070CP Pad - Fuel Tank - Rear $11.72 To Order
Photo Part No Description Price (each) Stock
11K0107CP Retaining Strap - Fuel Tank - LH Enquire To Order
Photo Part No Description Price (each) Stock
11K0280RP Fuel Tank - Assy - No Pumps & Controllers - 675LT $2,950.25 To Order
11KA004RP Fuel Tank - Assy - W/ Pumps & Controllers - 675LT - China $6,533.08 To Order
Photo Part No Description Price (each) Stock
11K0077CP MOUNTING STRAP - FUEL TANK $44.00 To Order
Photo Part No Description Price (each) Stock
11K0138CP Mounting Strap - Moulded - Fuel Tank $53.59 To Order
Photo Part No Description Price (each) Stock
11K0164CP OETIKER CLIP - 59.0-706R $17.72 To Order
Photo Part No Description Price (each) Stock
00RB074 SWIVEL CLIP - 11-13MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
11H0301CP BUNG - CHECK VALVE $4.35 To Order
Photo Part No Description Price (each) Stock
11K0004CP PUMP - FUEL - RH $970.73 To Order
Photo Part No Description Price (each) Stock
11K0228RP Filter - Fuel $338.87 To Order
Photo Part No Description Price (each) Stock
11K0134CP PIPE - PURGE - FUEL TANK $185.11 To Order
Photo Part No Description Price (each) Stock
11K0027CP PUMP - FUEL - LH $970.73 To Order
Photo Part No Description Price (each) Stock
11K0240RP Harness Carrier - Fuel Cell - RH $180.64 To Order
Photo Part No Description Price (each) Stock
11K0141CP Harness Carrier - Fuel Cell - LH $182.79 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11K0151CP PIPE - MOULDED UPPER - CARBON CANISTER - FUELTANK $192.58 To Order
Photo Part No Description Price (each) Stock
11K0153CP BREATHER DUCT - FUEL TANK - LOWER $48.98 To Order
Photo Part No Description Price (each) Stock
11K0129CP Clip - Fuel Tank Feed Hose $24.50 To Order
Photo Part No Description Price (each) Stock
11K0135CP STUD PLATE - M6X33 - FUEL TANK $29.92 To Order
Photo Part No Description Price (each) Stock
11K0154CP Bolt - Fuel Tank - Access Cover $20.57 To Order
Photo Part No Description Price (each) Stock
11K0226RP Adaptor Pipe - Fuel Pump - LH $50.76 To Order
Photo Part No Description Price (each) Stock
11K0227RP Adaptor Pipe - Fuel Pump - RH $50.76 To Order
Photo Part No Description Price (each) Stock
11M3127RP Harness - Earth - Fuel Tank $107.91 To Order
View All

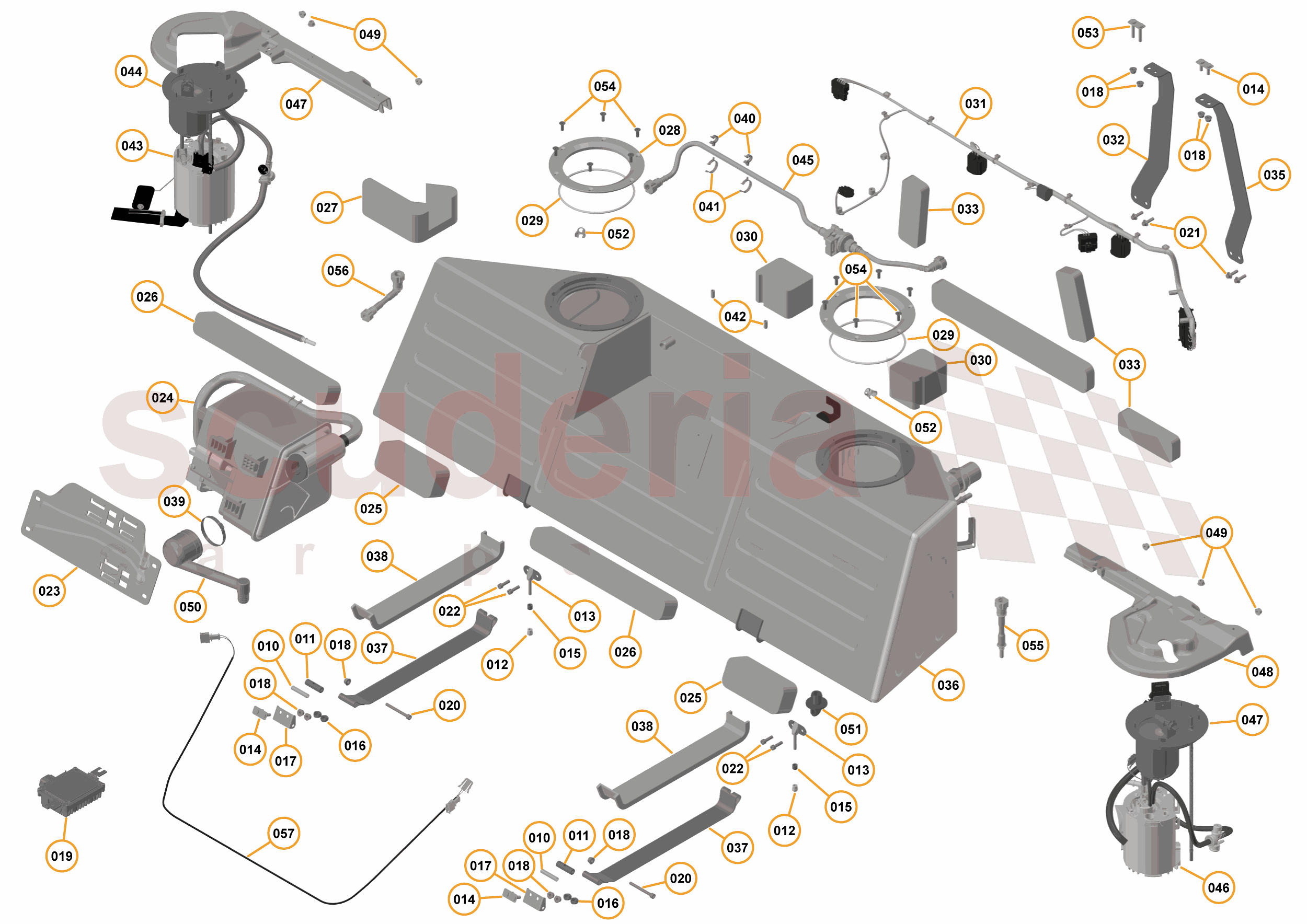

13 - K1 - FUEL SYSTEM - 13.1 - 01 - FUEL TANK of McLaren McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11K0111CP
Bush - Strap - Fuel Tank
Row ID: ID_B0K10126_11K0111CP_ContPgHS; Resolution: Available; 		$32.83 2
011 11K0110CP
TURNBUCKLE - STRAP - FUEL TANK
Row ID: ID_B0K10125_11K0110CP_ContPgHS; Resolution: Available; 		$28.57 2
012 11K0109CP
NUT - STRAP - FUEL TANK
Row ID: ID_B0K10124_11K0109CP_ContPgHS; Resolution: Available; 		$11.28 2
013 11K0139CP
BRACKET - FUEL TANK MOUNTING - TENSIONER
Row ID: ID_B0K10130_11K0139CP_ContPgHS; Resolution: Available; 		$118.76 2
014 11K0105CP
Stud Plate - M6x18 - Fuel Tank
Row ID: ID_B0K10101_11K0105CP_ContPgHS; Resolution: Available; 		$29.35 3
015 11K0102CP
SPACER - TURNBUCKLE 8MM LONG - FUEL TANK
Row ID: ID_B0K10122_11K0102CP_ContPgHS; Resolution: Available; 		$23.93 2
016 00RG010
Nut Protector - M6 -Reevite
Row ID: ID_B0K10105_00RG010_ContPgHS; Resolution: Available; 		- 4 Enquire
017 11K0112CP
Bracket - Fuel Tank - Lower
Row ID: ID_B0K10127_11K0112CP_ContPgHS; Resolution: Available; 		$43.11 2
018 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_B0K10131_00RA055_ContPgHS; Resolution: Available; 		- 14 Enquire
019 11K0064CP
Controller - Fuel Pump
Row ID: ID_B0K10142_11K0064CP_ContPgHS; Resolution: Available; 		$505.99 2
020 00RA257
BOLT - M6X55 - HEX SOCKET
Row ID: ID_B0K10132_00RA257_ContPgHS; Resolution: Available; 		- 2 Enquire
021
Row ID: ID_B0K10102_00RA083_ContPgHS; Resolution: Available; 		- 4 Enquire
022 00RA252
Screw - M6x20 - Hex Socket
Row ID: ID_B0K10103_00RA252_ContPgHS; Resolution: Available; 		- 4 Enquire
023 11K0054CP
BRACKET - CHARCOAL CANISTER
Row ID: ID_B0K10140_11K0054CP_ContPgHS; Resolution: Available; 		$139.44 1
024 11K0057CP
FILTER - CHARCOAL
Row ID: ID_B0K10141_11K0057CP_ContPgHS; Resolution: Available; 		$644.53 1
025 13K0074CP
PAD - FUEL TANK - BULKHEAD - LOWER
Row ID: ID_B0K10151_13K0074CP_ContPgHS; Resolution: Available; 		- 2 Enquire
026 13K0075CP
PAD - FUEL TANK - BULKHEAD - UPPER
Row ID: ID_B0K10152_13K0075CP_ContPgHS; Resolution: Available; 		$38.03 2
027 11K0229RP
Pad - Fuel Tank - Upper - RH - 675LT
Row ID: ID_B0K10153_11K0229RP_ContPgHS; Resolution: Available; 		$16.41 1
028 13K0066CP
RETAINING RING - FUEL TANK - ACCESS PLATE
Row ID: ID_B0K10154_13K0066CP_ContPgHS; Resolution: Available; 		$29.55 2
029 11K0049CP
Seal - Fuel Tank - Access Plate Retaining Ring - Retaining Ring - 11K0051CP
Row ID: ID_B0K10138_11K0049CP_ContPgHS; Resolution: Available; 		$38.35 2
029 11K0250CP
SEAL - FUEL TANK - ACCESS PLATE RETAINING RING - FOR RETAINING RING 13K0066CP
Row ID: ID_B0K10163_11K0250CP_ContPgHS; Resolution: Available; 		$39.68 2
030 13K0073CP
PAD - FUEL TANK - UPPER
Row ID: ID_B0K10156_13K0073CP_ContPgHS; Resolution: Available; 		$34.40 2
031 11M0986CP
Harness - Fuel Cell
Row ID: ID_B0K10148_11M0986CP_ContPgHS; Resolution: Available; 		$298.20 1
032 11K0118CP
RETAINING STRAP - FUEL TANK - RH
Row ID: ID_B0K10128_11K0118CP_ContPgHS; Resolution: Available; 		- 1 Enquire
033 13K0070CP
Pad - Fuel Tank - Rear
Row ID: ID_B0K10157_13K0070CP_ContPgHS; Resolution: Available; 		$11.72 3
034 13K0076CP
Pad - Fuel Tank - Cross Member
Row ID: ID_B0K10158_13K0076CP_ContPgHS; Resolution: Available; 		$13.22 1
035 11K0107CP
Retaining Strap - Fuel Tank - LH
Row ID: ID_B0K10123_11K0107CP_ContPgHS; Resolution: Available; 		- 1 Enquire
036 11K0280RP
Fuel Tank - Assy - No Pumps & Controllers - 675LT
Row ID: ID_B0K10164_11K0280RP_ContPgHS; Resolution: Available; 		$2,950.25 1
036 11KA004RP
Fuel Tank - Assy - W/ Pumps & Controllers - 675LT - China
Row ID: ID_B0K10159_11KA004RP_ContPgHS; Resolution: Available; 		$6,533.08 1
037 11K0077CP
MOUNTING STRAP - FUEL TANK
Row ID: ID_B0K10112_11K0077CP_ContPgHS; Resolution: Available; 		$44.00 2
038 11K0138CP
Mounting Strap - Moulded - Fuel Tank
Row ID: ID_B0K10129_11K0138CP_ContPgHS; Resolution: Available; 		$53.59 2
039 11K0164CP
OETIKER CLIP - 59.0-706R
Row ID: ID_B0K10111_11K0164CP_ContPgHS; Resolution: Available; 		$17.72 1
040 00RB074
SWIVEL CLIP - 11-13MM - FEMALE
Row ID: ID_B0K10104_00RB074_ContPgHS; Resolution: Available; 		- 2 Enquire
041 00RG018
SWIVEL CLIP - 22-24MM -MALE
Row ID: ID_B0K10106_00RG018_ContPgHS; Resolution: Available; 		- 2 Enquire
042 11H0301CP
BUNG - CHECK VALVE
Row ID: ID_B0K10107_11H0301CP_ContPgHS; Resolution: Available; 		$4.35 2
043 11K0004CP
PUMP - FUEL - RH
Row ID: ID_B0K10134_11K0004CP_ContPgHS; Resolution: Available; 		$970.73 1
044 11K0228RP
Filter - Fuel
Row ID: ID_B0K10160_11K0228RP_ContPgHS; Resolution: Available; 		$338.87 2
045 11K0134CP
PIPE - PURGE - FUEL TANK
Row ID: ID_B0K10143_11K0134CP_ContPgHS; Resolution: Available; 		$185.11 1
046 11K0027CP
PUMP - FUEL - LH
Row ID: ID_B0K10136_11K0027CP_ContPgHS; Resolution: Available; 		$970.73 1
047 11K0240RP
Harness Carrier - Fuel Cell - RH
Row ID: ID_B0K10161_11K0240RP_ContPgHS; Resolution: Available; 		$180.64 1
048 11K0141CP
Harness Carrier - Fuel Cell - LH
Row ID: ID_B0K10145_11K0141CP_ContPgHS; Resolution: Available; 		$182.79 1
049 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID_B0K10162_00RA011_ContPgHS; Resolution: Available; 		- 6 Enquire
050 11K0151CP
PIPE - MOULDED UPPER - CARBON CANISTER - FUELTANK
Row ID: ID_B0K10146_11K0151CP_ContPgHS; Resolution: Available; 		$192.58 1
051 11K0153CP
BREATHER DUCT - FUEL TANK - LOWER
Row ID: ID_B0K10147_11K0153CP_ContPgHS; Resolution: Available; 		$48.98 1
052 11K0129CP
Clip - Fuel Tank Feed Hose
Row ID: ID_B0K10108_11K0129CP_ContPgHS; Resolution: Available; 		$24.50 1
053 11K0135CP
STUD PLATE - M6X33 - FUEL TANK
Row ID: ID_B0K10150_11K0135CP_ContPgHS; Resolution: Available; 		$29.92 1
054 11K0154CP
Bolt - Fuel Tank - Access Cover
Row ID: ID_B0K10109_11K0154CP_ContPgHS; Resolution: Available; 		$20.57 12
055 11K0226RP
Adaptor Pipe - Fuel Pump - LH
Row ID: ID_B0K10165_11K0226RP_ContPgHS; Resolution: Available; 		$50.76 1
056 11K0227RP
Adaptor Pipe - Fuel Pump - RH
Row ID: ID_B0K10166_11K0227RP_ContPgHS; Resolution: Available; 		$50.76 1
057 11M3127RP
Harness - Earth - Fuel Tank
Row ID: ID_B0K10168_11M3127RP_ContPgHS; Resolution: Available; 		$107.91 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
