14 - L1 - Cooling System - 14.4 - 01 - High Temperature Circuit & Pipes

McLaren McLaren 675LT Coupe

Find Your Part

McLaren McLaren 675LT Coupe - 14 - L1 - COOLING SYSTEM - 14.4 - 01 - HIGH TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11L0506RP Hose - Radiator Outboard - LH - 675LT $437.40 To Order
Photo Part No Description Price (each) Stock
11L0507RP Hose - Radiator Outboard - RH - 675LT $437.40 To Order
Photo Part No Description Price (each) Stock
00RB092 Oetiker Clip - 44.0 Enquire To Order
Photo Part No Description Price (each) Stock
11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE $114.21 To Order
Photo Part No Description Price (each) Stock
11L0504RP Hose - Radiator from Engine - LH - 675LT $270.20 To Order
Photo Part No Description Price (each) Stock
11L0505RP Hose - Radiator from Engine - RH - 675LT $270.20 To Order
Photo Part No Description Price (each) Stock
00RB089 Stepless Ear Clamp - 48.5-706R Enquire To Order
Photo Part No Description Price (each) Stock
11L0508RP Hose - Radiator Water Bleed - LH - 675LT $409.04 To Order
Photo Part No Description Price (each) Stock
11L0509RP Hose - Radiator Water Bleed - RH - 675LT $409.04 To Order
Photo Part No Description Price (each) Stock
00RB096 STEPLESS EAR CLAMP - 16.2-706R Enquire To Order
Photo Part No Description Price (each) Stock
11L0273CP HOSE-HEADER TANK FEED $103.99 To Order
Photo Part No Description Price (each) Stock
11L0274CP HOSE-HEADER ENGINE PUMP FEED $103.99 To Order
Photo Part No Description Price (each) Stock
11L0289CP Pipe - Header Tank - Feed $944.97 To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
11L0522RP Duct - Cooling - Radiator to HVAC $134.95 To Order
Photo Part No Description Price (each) Stock
11F1021CP Top Hose - Radiator - Inboard - Engine - LH $243.70 To Order
Photo Part No Description Price (each) Stock
11F1022CP Top Hose - Radiator - Inboard - Engine - RH $268.35 To Order
View All

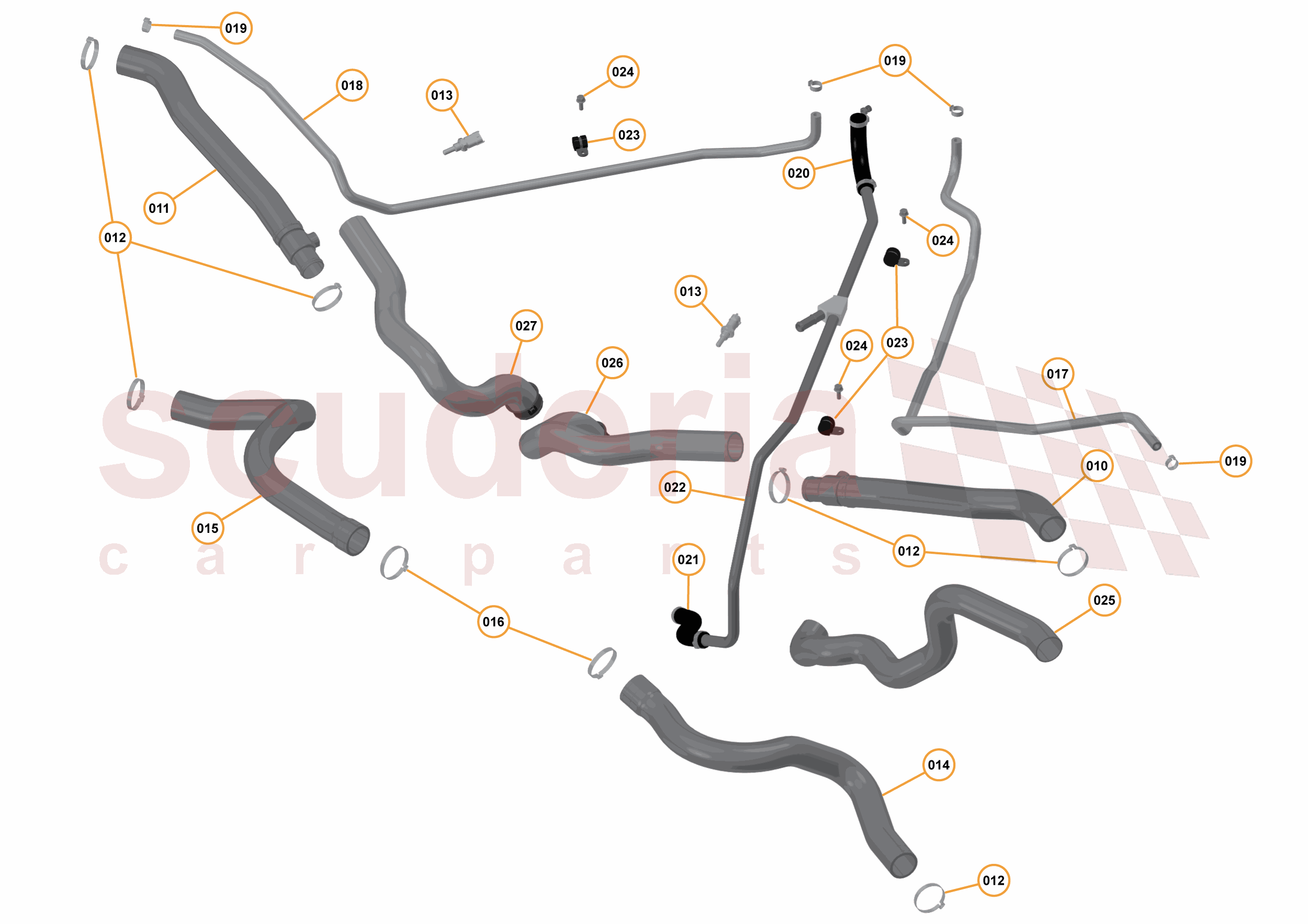

14 - L1 - COOLING SYSTEM - 14.4 - 01 - HIGH TEMPERATURE CIRCUIT & PIPES of McLaren McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11L0506RP
Hose - Radiator Outboard - LH - 675LT
Row ID: ID_B0L101I7_11L0506RP_ContPgHS; Resolution: Available; 		$437.40 1
011 11L0507RP
Hose - Radiator Outboard - RH - 675LT
Row ID: ID_B0L101I8_11L0507RP_ContPgHS; Resolution: Available; 		$437.40 1
012 00RB092
Oetiker Clip - 44.0
Row ID: ID_B0L101G1_00RB092_ContPgHS; Resolution: Available; 		- 6 Enquire
013 11L0247CP
SENSOR - COOLANT TEMPERATURE - ENGINE
Row ID: ID_B0L10169_11L0247CP_ContPgHS; Resolution: Available; 		$114.21 2
014 11L0504RP
Hose - Radiator from Engine - LH - 675LT
Row ID: ID_B0L101I9_11L0504RP_ContPgHS; Resolution: Available; 		$270.20 1
015 11L0505RP
Hose - Radiator from Engine - RH - 675LT
Row ID: ID_B0L101J0_11L0505RP_ContPgHS; Resolution: Available; 		$270.20 1
016 00RB089
Stepless Ear Clamp - 48.5-706R
Row ID: ID_B0L101B2_00RB089_ContPgHS; Resolution: Available; 		- 4 Enquire
017 11L0508RP
Hose - Radiator Water Bleed - LH - 675LT
Row ID: ID_B0L101J1_11L0508RP_ContPgHS; Resolution: Available; 		$409.04 1
018 11L0509RP
Hose - Radiator Water Bleed - RH - 675LT
Row ID: ID_B0L101J2_11L0509RP_ContPgHS; Resolution: Available; 		$409.04 1
019 00RB096
STEPLESS EAR CLAMP - 16.2-706R
Row ID: ID_B0L10111_00RB096_ContPgHS; Resolution: Available; 		- 4 Enquire
020 11L0273CP
HOSE-HEADER TANK FEED
Row ID: ID_B0L10124_11L0273CP_ContPgHS; Resolution: Available; 		$103.99 1
021 11L0274CP
HOSE-HEADER ENGINE PUMP FEED
Row ID: ID_B0L10125_11L0274CP_ContPgHS; Resolution: Available; 		$103.99 1
022 11L0289CP
Pipe - Header Tank - Feed
Row ID: ID_B0L10130_11L0289CP_ContPgHS; Resolution: Available; 		$944.97 1
023 00RB005
P CLIP - DIA 16
Row ID: ID_B0L10192_00RB005_ContPgHS; Resolution: Available; 		- 3 Enquire
024 00RA061
Screw - M6x16 - Flange Hex
Row ID: ID_B0L10149_00RA061_ContPgHS; Resolution: Available; 		- 3 Enquire
025 11L0522RP
Duct - Cooling - Radiator to HVAC
Row ID: ID_B0L101J3_11L0522RP_ContPgHS; Resolution: Available; 		$134.95 1
026 11F1021CP
Top Hose - Radiator - Inboard - Engine - LH
Row ID: ID_B0L10168_11F1021CP_ContPgHS; Resolution: Available; 		$243.70 1
027 11F1022CP
Top Hose - Radiator - Inboard - Engine - RH
Row ID: ID_B0L10180_11F1022CP_ContPgHS; Resolution: Available; 		$268.35 1
