27 - FUEL TANK - 27.2 - FUEL TANK RETENTION of McLaren McLaren McLaren 570S Spider

View All

McLaren McLaren 570S Spider - 27 - FUEL TANK - 27.2 - FUEL TANK RETENTION

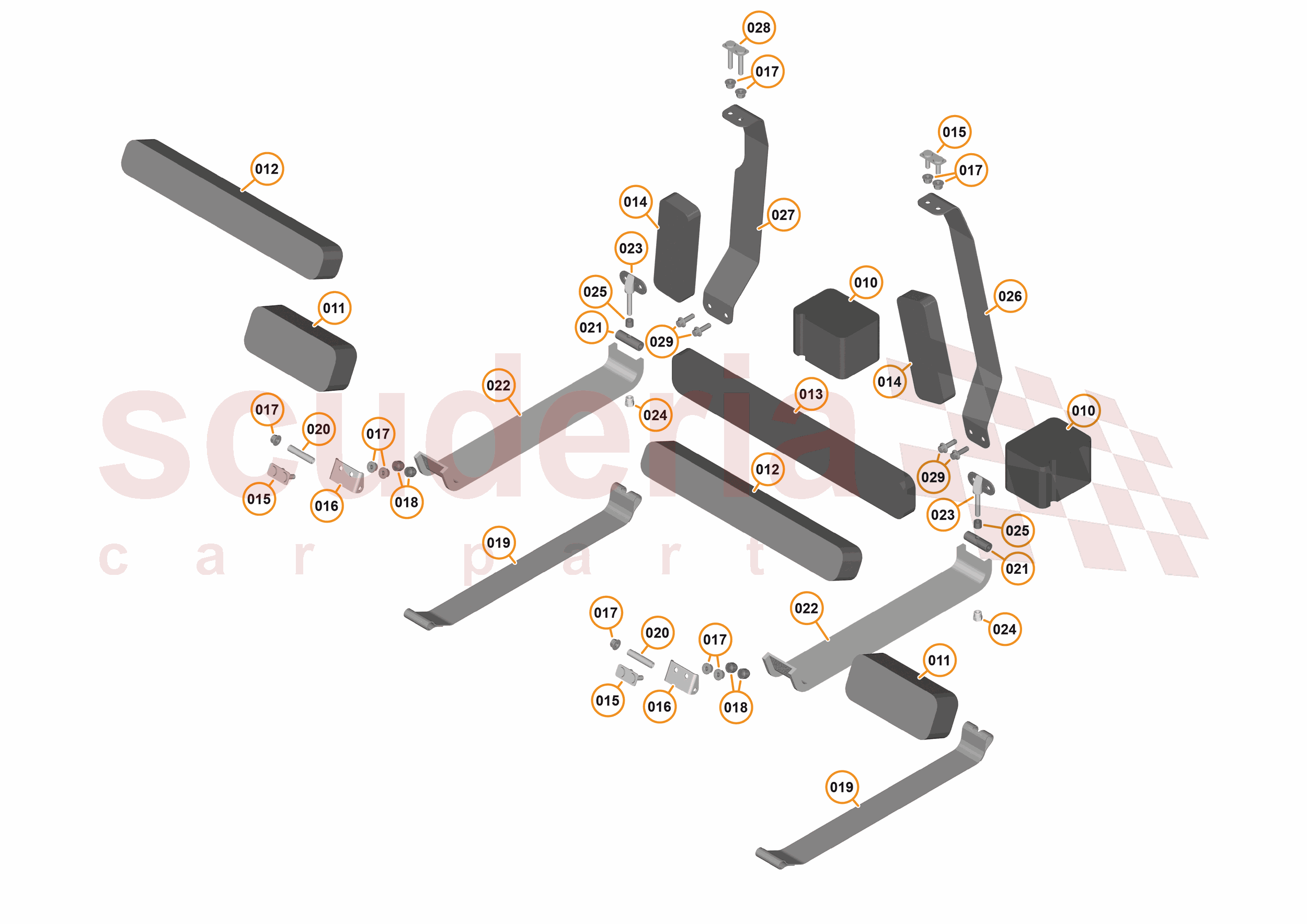

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13K0073CP	PAD - FUEL TANK - UPPER	$34.40	To Order

Photo	Part No	Description	Price (each)	Stock
	13K0074CP	PAD - FUEL TANK - BULKHEAD - LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13K0075CP	PAD - FUEL TANK - BULKHEAD - UPPER	$38.03	To Order

Photo	Part No	Description	Price (each)	Stock
	13K0076CP	Pad - Fuel Tank - Cross Member	$13.22	To Order

Photo	Part No	Description	Price (each)	Stock
	13K0070CP	Pad - Fuel Tank - Rear	$11.72	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0105CP	Stud Plate - M6x18 - Fuel Tank	$29.35	To Order

Photo	Part No	Description	Price (each)	Stock
	13K0022CP	Bracket - Fuel Tank - Lower	$16.78	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG010	Nut Protector - M6 -Reevite	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0077CP	MOUNTING STRAP - FUEL TANK	$44.00	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13K0073CP	PAD - FUEL TANK - UPPER	13K0073CP PAD - FUEL TANK - UPPER Row ID: ID_CDKA0201_13K0073CP_ContPgHS; Resolution: Available;	$34.40	2
011	13K0074CP	PAD - FUEL TANK - BULKHEAD - LOWER	13K0074CP PAD - FUEL TANK - BULKHEAD - LOWER Row ID: ID_CDKA0202_13K0074CP_ContPgHS; Resolution: Available;	-	2	Enquire
012	13K0075CP	PAD - FUEL TANK - BULKHEAD - UPPER	13K0075CP PAD - FUEL TANK - BULKHEAD - UPPER Row ID: ID_CDKA0203_13K0075CP_ContPgHS; Resolution: Available;	$38.03	2
013	13K0076CP	Pad - Fuel Tank - Cross Member	13K0076CP Pad - Fuel Tank - Cross Member Row ID: ID_CDKA0204_13K0076CP_ContPgHS; Resolution: Available;	$13.22	1
014	13K0070CP	Pad - Fuel Tank - Rear	13K0070CP Pad - Fuel Tank - Rear Row ID: ID_CDKA0205_13K0070CP_ContPgHS; Resolution: Available;	$11.72	2
015	11K0105CP	Stud Plate - M6x18 - Fuel Tank	11K0105CP Stud Plate - M6x18 - Fuel Tank Row ID: ID_CDKA0206_11K0105CP_ContPgHS; Resolution: Available;	$29.35	3
016	13K0022CP	Bracket - Fuel Tank - Lower	13K0022CP Bracket - Fuel Tank - Lower Row ID: ID_CDKA0207_13K0022CP_ContPgHS; Resolution: Available;	$16.78	2
017	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_CDKA0208_00RA055_ContPgHS; Resolution: Available;	-	10	Enquire
018	00RG010	Nut Protector - M6 -Reevite	00RG010 Nut Protector - M6 -Reevite Row ID: ID_CDKA0209_00RG010_ContPgHS; Resolution: Available;	-	4	Enquire
019	11K0077CP	MOUNTING STRAP - FUEL TANK	11K0077CP MOUNTING STRAP - FUEL TANK Row ID: ID_CDKA0210_11K0077CP_ContPgHS; Resolution: Available;	$44.00	2
