27 - FUEL TANK - 27.1 - FUEL TANK of McLaren McLaren McLaren 570S Spider

View All

McLaren McLaren 570S Spider - 27 - FUEL TANK - 27.1 - FUEL TANK

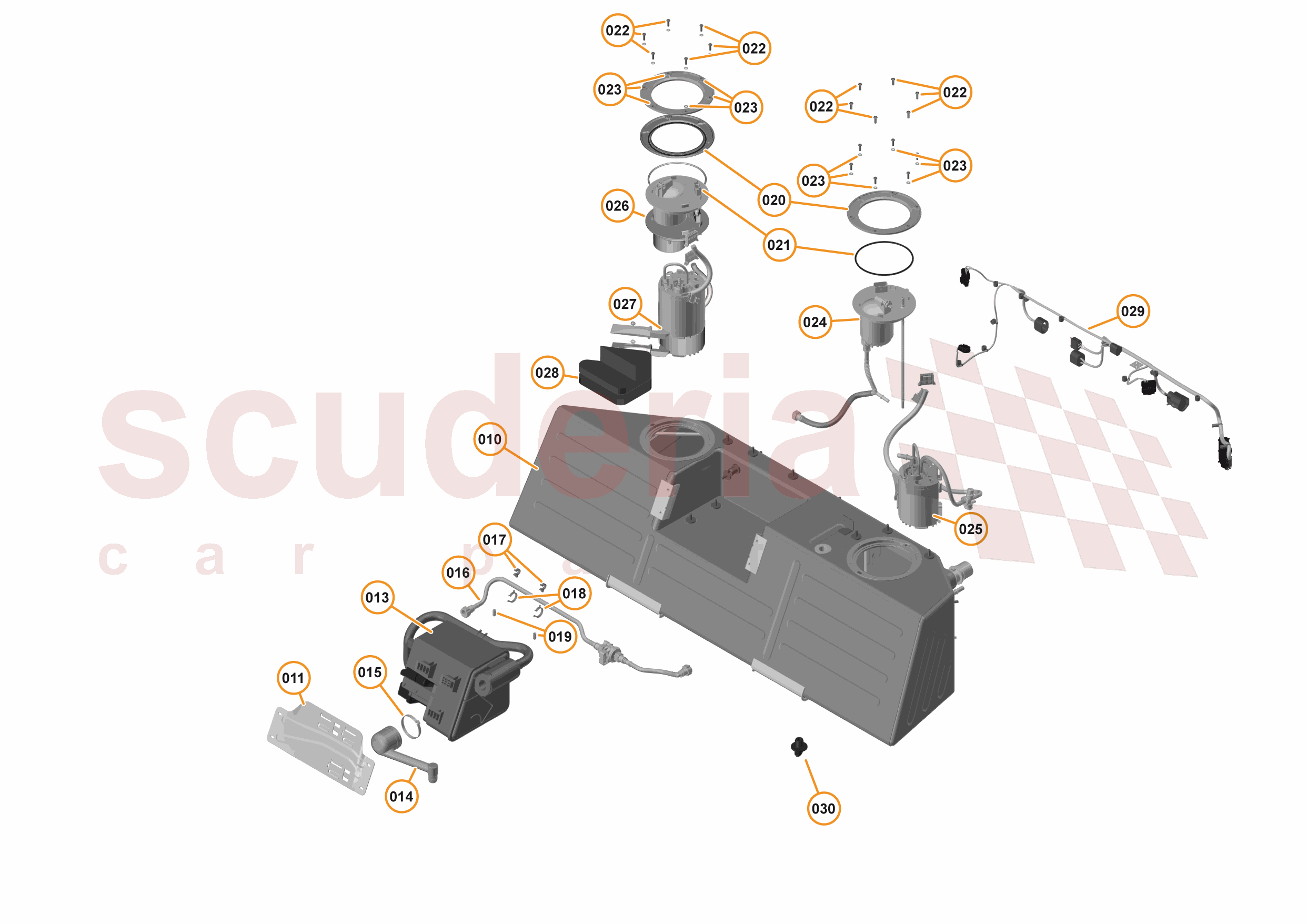

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13KA049CP	Fuel Tank - Assy - No Pumps & Controllers	$2,744.04	To Order
	13K0122CP	Fuel Tank - Assy - W/ Pumps & Controller - China	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0054CP	BRACKET - CHARCOAL CANISTER	$139.44	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0057CP	FILTER - CHARCOAL	$644.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0151CP	PIPE - MOULDED UPPER - CARBON CANISTER - FUELTANK	$192.58	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0164CP	OETIKER CLIP - 59.0-706R	$17.72	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0134CP	PIPE - PURGE - FUEL TANK	$185.11	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB074	SWIVEL CLIP - 11-13MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG018	SWIVEL CLIP - 22-24MM -MALE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13KA049CP	Fuel Tank - Assy - No Pumps & Controllers	13KA049CP Fuel Tank - Assy - No Pumps & Controllers Row ID: ID_CDKA0101_13KA049CP_ContPgHS; Resolution: Available;	$2,744.04	1
010	13K0122CP	Fuel Tank - Assy - W/ Pumps & Controller - China	13K0122CP Fuel Tank - Assy - W/ Pumps & Controller - China Row ID: ID_CDKA0102_13K0122CP_ContPgHS; Resolution: Available;	-	1	Enquire
011	11K0054CP	BRACKET - CHARCOAL CANISTER	11K0054CP BRACKET - CHARCOAL CANISTER Row ID: ID_CDKA0103_11K0054CP_ContPgHS; Resolution: Available;	$139.44	1
012	00RA515	Bolt - Hex - Flange - M6x16	00RA515 Bolt - Hex - Flange - M6x16 Row ID: ID_CDKA0104_00RA515_ContPgHS; Resolution: Available;	-	4	Enquire
013	11K0057CP	FILTER - CHARCOAL	11K0057CP FILTER - CHARCOAL Row ID: ID_CDKA0105_11K0057CP_ContPgHS; Resolution: Available;	$644.53	1
014	11K0151CP	PIPE - MOULDED UPPER - CARBON CANISTER - FUELTANK	11K0151CP PIPE - MOULDED UPPER - CARBON CANISTER - FUELTANK Row ID: ID_CDKA0106_11K0151CP_ContPgHS; Resolution: Available;	$192.58	1
015	11K0164CP	OETIKER CLIP - 59.0-706R	11K0164CP OETIKER CLIP - 59.0-706R Row ID: ID_CDKA0107_11K0164CP_ContPgHS; Resolution: Available;	$17.72	1
016	11K0134CP	PIPE - PURGE - FUEL TANK	11K0134CP PIPE - PURGE - FUEL TANK Row ID: ID_CDKA0108_11K0134CP_ContPgHS; Resolution: Available;	$185.11	1
017	00RB074	SWIVEL CLIP - 11-13MM - FEMALE	00RB074 SWIVEL CLIP - 11-13MM - FEMALE Row ID: ID_CDKA0109_00RB074_ContPgHS; Resolution: Available;	-	2	Enquire
018	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE Row ID: ID_CDKA0110_00RG018_ContPgHS; Resolution: Available;	-	2	Enquire
