29 - COOLING - HIGH TEMPERATURE - 29.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren McLaren 570S Spider

View All

McLaren McLaren 570S Spider - 29 - COOLING - HIGH TEMPERATURE - 29.2 - HIGH TEMP MAIN RADIATORS & FANS

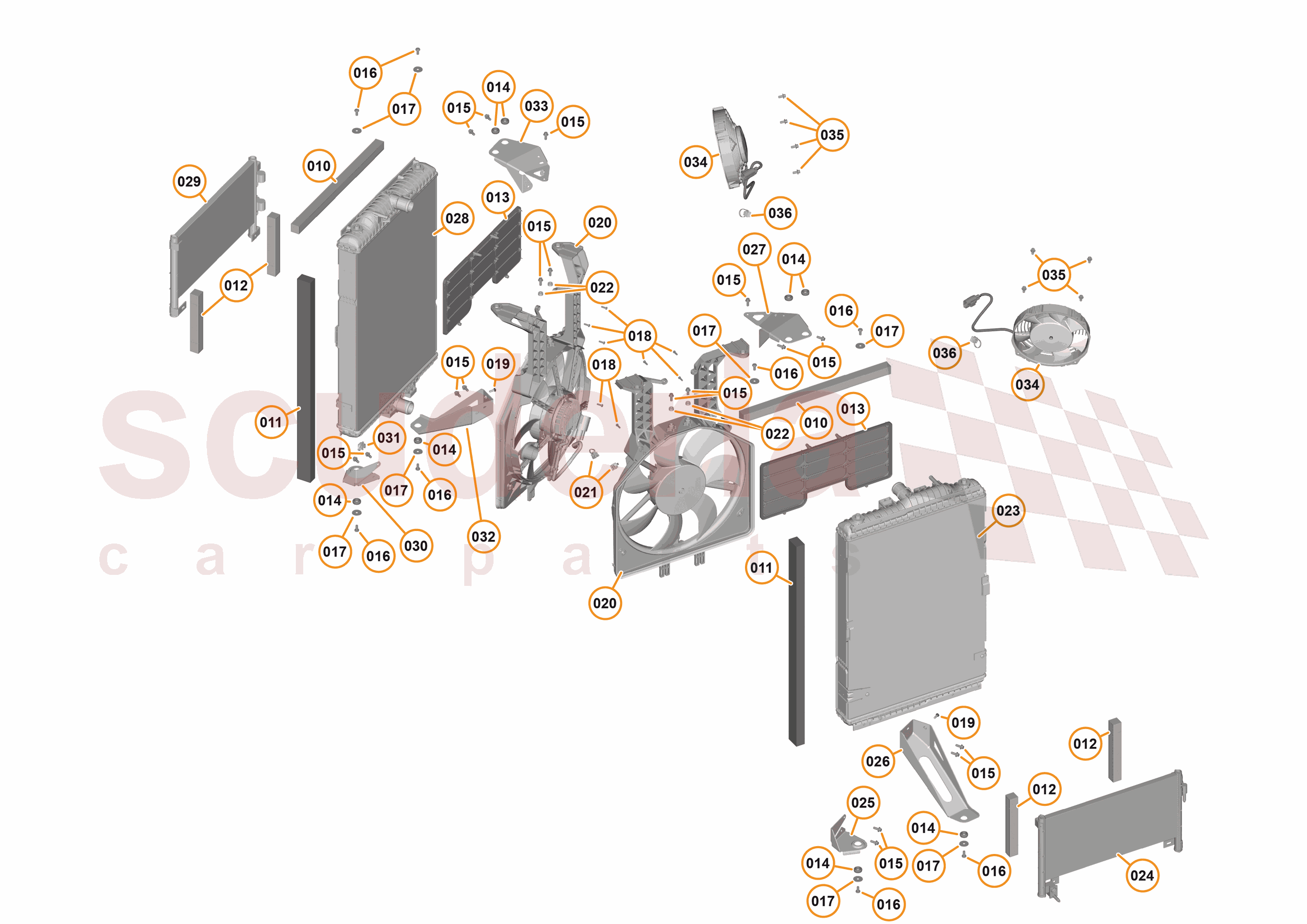

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11L0250CP	Seal - Radiator To Body - Top	$50.37	To Order

Photo	Part No	Description	Price (each)	Stock
	11L0378CP	Seal - Radiator To Body - Front	$56.01	To Order

Photo	Part No	Description	Price (each)	Stock
	11L0377CP	Seal - Radiator to Condenser	$55.50	To Order

Photo	Part No	Description	Price (each)	Stock
	13L0207CP	FLAP HOUSING - RADIATOR	$153.76	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG011	GROMMET - DIA 19 - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA353	SCREW - 6X14 - THREADFORMING - TORX-FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA138	Screw - DIA 4 x 14 - Torx	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11L0250CP	Seal - Radiator To Body - Top	11L0250CP Seal - Radiator To Body - Top Row ID: ID_CDLA0201_11L0250CP_ContPgHS; Resolution: Available;	$50.37	2
011	11L0378CP	Seal - Radiator To Body - Front	11L0378CP Seal - Radiator To Body - Front Row ID: ID_CDLA0202_11L0378CP_ContPgHS; Resolution: Available;	$56.01	2
012	11L0377CP	Seal - Radiator to Condenser	11L0377CP Seal - Radiator to Condenser Row ID: ID_CDLA0203_11L0377CP_ContPgHS; Resolution: Available;	$55.50	4
013	13L0207CP	FLAP HOUSING - RADIATOR	13L0207CP FLAP HOUSING - RADIATOR Row ID: ID_CDLA0204_13L0207CP_ContPgHS; Resolution: Available;	$153.76	2
014	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER Row ID: ID_CDLA0205_00RG011_ContPgHS; Resolution: Available;	-	8	Enquire
015	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID_CDLA0206_00RA313_ContPgHS; Resolution: Available;	-	18	Enquire
016	00RA353	SCREW - 6X14 - THREADFORMING - TORX-FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX-FLANGE Row ID: ID_CDLA0207_00RA353_ContPgHS; Resolution: Available;	-	8	Enquire
017	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID_CDLA0208_00RC043_ContPgHS; Resolution: Available;	-	8	Enquire
018	00RA138	Screw - DIA 4 x 14 - Torx	00RA138 Screw - DIA 4 x 14 - Torx Row ID: ID_CDLA0209_00RA138_ContPgHS; Resolution: Available;	-	8	Enquire
019	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Row ID: ID_CDLA0210_00RA522_ContPgHS; Resolution: Available;	-	2	Enquire
