REAR SUSPENSION of Maserati Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP

View All

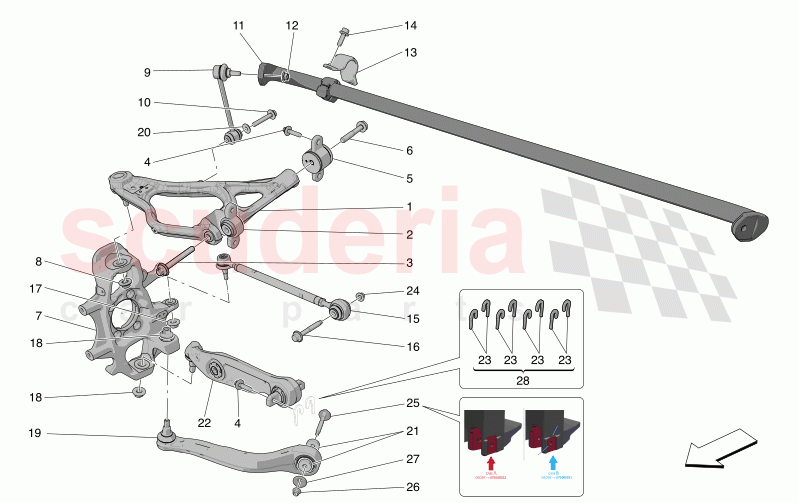

Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP - REAR SUSPENSION (06201)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670156071	COMPLETE L.H. REAR UPPER LEVER	Enquire	To Order
	670161646	COMPLETE R.H. REAR UPPER LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160347	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000051	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160337	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001196	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181987	LH REAR HUB HOLDER ASSEMBLY	Enquire	To Order
	670181989	RH REAR HUB HOLDER ASSEMBLY	Enquire	To Order
	670175416	RH REAR HUB HOLDER ASSEMBLY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675002403	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670161672	LH BALL TIE ROD	Enquire	To Order
	670161850	RH BALL TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160647	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156481	REAR STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000184	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001071	U-BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001015	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670216677	REAR TOE-IN ADJUSTMENT ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001020	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001193	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001188	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670161836	RH REAR SWINGING ARM	Enquire	To Order
	670161839	LH REAR SWINGING ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670213189	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160632	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160354	AXLE ROD	Enquire	To Order
	670160333	AXLE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160335	CAMBER ADJUSTMENT PLATE	Enquire	To Order
	670175783	CAMBER ADJUSTMENT PLATE	Enquire	To Order
	670175782	CAMBER ADJUSTMENT PLATE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675000127	NUT M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000051	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000023	NUT M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174098	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673013880	KIT CAMBER ADJUSTMENT PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670156071	COMPLETE L.H. REAR UPPER LEVER	670156071 COMPLETE L.H. REAR UPPER LEVER	-	1	Enquire
1	670161646	COMPLETE R.H. REAR UPPER LEVER	670161646 COMPLETE R.H. REAR UPPER LEVER	-	1	Enquire
2	670160347	BUSHING	670160347 BUSHING	-	2	Enquire
3	675000051	SCREW	675000051 SCREW	-	2	Enquire
4	675001345	SCREW	675001345 SCREW	-	12	Enquire
5	670160337	BUSHING	670160337 BUSHING	-	2	Enquire
6	675001196	SCREW	675001196 SCREW	-	2	Enquire
7	670181987	LH REAR HUB HOLDER ASSEMBLY	670181987 LH REAR HUB HOLDER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7000931 - 99999999; Available with: CARBON CERAMIC BRAKES ;	-	1	Enquire
7	670181989	RH REAR HUB HOLDER ASSEMBLY	670181989 RH REAR HUB HOLDER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7000931 - 99999999; Available with: CARBON CERAMIC BRAKES ;	-	1	Enquire
7	670175416	RH REAR HUB HOLDER ASSEMBLY	670175416 RH REAR HUB HOLDER ASSEMBLY Available with: DUAL-CAST STEEL BRAKES ;	-	1	Enquire
7	670175415	LH REAR HUB HOLDER ASSEMBLY	670175415 LH REAR HUB HOLDER ASSEMBLY Available with: DUAL-CAST STEEL BRAKES ;	-	1	Enquire
8	675002403	NUT	675002403 NUT Bespoke Assembly Number 7003417 - 99999999;	-	2	Enquire
9	670161672	LH BALL TIE ROD	670161672 LH BALL TIE ROD	-	1	Enquire
9	670161850	RH BALL TIE ROD	670161850 RH BALL TIE ROD	-	1	Enquire
10	670160647	SCREW	670160647 SCREW	-	2	Enquire
11	670156481	REAR STABILIZER BAR	670156481 REAR STABILIZER BAR	-	1	Enquire
12	675000184	NUT	675000184 NUT	-	2	Enquire
13	675001071	U-BOLT	675001071 U-BOLT	-	2	Enquire
14	675001015	SCREW	675001015 SCREW	-	4	Enquire
15	670216677	REAR TOE-IN ADJUSTMENT ROD	670216677 REAR TOE-IN ADJUSTMENT ROD	-	2	Enquire
16	675001020	SCREW	675001020 SCREW	-	2	Enquire
17	675001193	NUT	675001193 NUT	-	2	Enquire
18	675001188	NUT	675001188 NUT	-	4	Enquire
19	670161836	RH REAR SWINGING ARM	670161836 RH REAR SWINGING ARM	-	1	Enquire
19	670161839	LH REAR SWINGING ARM	670161839 LH REAR SWINGING ARM	-	1	Enquire
20	670213189	WASHER	670213189 WASHER	-	2	Enquire
21	670160632	SPACER	670160632 SPACER	-	4	Enquire
22	670160354	AXLE ROD	670160354 AXLE ROD LH side;	-	1	Enquire
22	670160333	AXLE ROD	670160333 AXLE ROD RH side;	-	1	Enquire
23	670160335	CAMBER ADJUSTMENT PLATE	670160335 CAMBER ADJUSTMENT PLATE THICKNESS 4 mm;	-	4	Enquire
23	670175783	CAMBER ADJUSTMENT PLATE	670175783 CAMBER ADJUSTMENT PLATE THICKNESS 3 mm;	-	4	Enquire
23	670175782	CAMBER ADJUSTMENT PLATE	670175782 CAMBER ADJUSTMENT PLATE THICKNESS 2 mm;	-	4	Enquire
23	670175780	CAMBER ADJUSTMENT PLATE	670175780 CAMBER ADJUSTMENT PLATE THICKNESS 0.5 mm;	-	4	Enquire
23	670175781	CAMBER ADJUSTMENT PLATE	670175781 CAMBER ADJUSTMENT PLATE THICKNESS 1 mm;	-	4	Enquire
24	675000127	NUT M12	675000127 NUT M12	-	2	Enquire
25	675000051	SCREW	675000051 SCREW Bespoke Assembly Number 7002663 - 99999999;	-	2	Enquire
26	675000023	NUT M12	675000023 NUT M12	-	2	Enquire
27	670174098	WASHER	670174098 WASHER	-	2	Enquire
28	673013880	KIT CAMBER ADJUSTMENT PLATE	673013880 KIT CAMBER ADJUSTMENT PLATE The kit includes 50 plates for each thickness;	-	1	Enquire
29	675009264	WASHER	675009264 WASHER Bespoke Assembly Number 7003417 - 99999999;	-	2	Enquire
