HYDRAULIC SYSTEM FRONT AXLE LIFT of Maserati Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP

View All

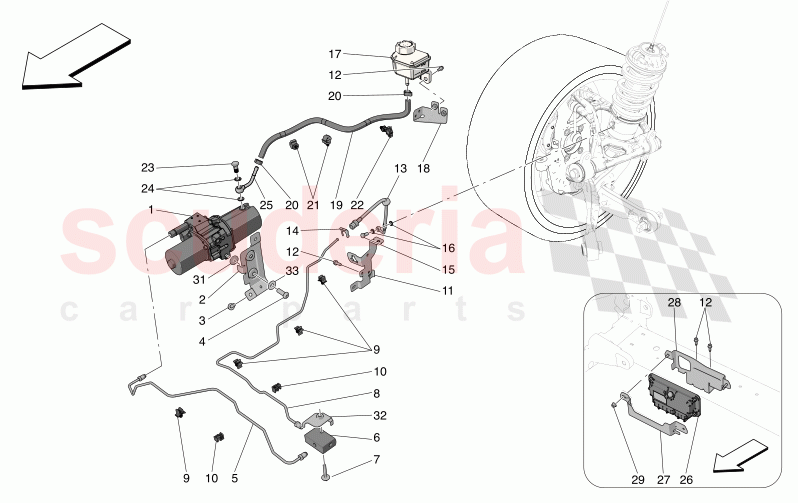

Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP - HYDRAULIC SYSTEM FRONT AXLE LIFT (06251)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670354627	LIFTER SYSTEM PUMP	Enquire	To Order
	670172681	LIFTER SYSTEM PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172682	LIFTER SYSTEM PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001087	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670173976	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172749	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172748	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005287	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172747	LH PIPE	Enquire	To Order
	670172706	RH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172705	PIPE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001079	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172696	RH PIPE BRACKET	Enquire	To Order
	670172746	LH PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001384	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172745	LH FLEXIBLE PIPE	Enquire	To Order
	670172686	RH FLEXIBLE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000276	SPRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670173235	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670173236	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172683	LIFTER SYSTEM PUMP FILLING TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172684	TANK BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172685	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000552	COLLARD.14,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670173232	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670173233	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670173229	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000250	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670176845	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670295237	LIFTER CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172754	LIFTER CONTROL UNIT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670172755	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000794	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670175142	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181780	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670218725	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670354627	LIFTER SYSTEM PUMP	670354627 LIFTER SYSTEM PUMP Bespoke Assembly Number 7003502 - 99999999;	-	1	Enquire
1	670172681	LIFTER SYSTEM PUMP	670172681 LIFTER SYSTEM PUMP Bespoke Assembly Number 0 - 7003501;	-	1	Enquire
2	670172682	LIFTER SYSTEM PUMP BRACKET	670172682 LIFTER SYSTEM PUMP BRACKET	-	1	Enquire
3	675001087	SCREW	675001087 SCREW	-	2	Enquire
4	670173976	SCREW	670173976 SCREW	-	2	Enquire
5	670172749	PIPE	670172749 PIPE	-	1	Enquire
6	670172748	VALVE	670172748 VALVE	-	1	Enquire
7	670005287	SCREW	670005287 SCREW	-	1	Enquire
8	670172747	LH PIPE	670172747 LH PIPE	-	1	Enquire
8	670172706	RH PIPE	670172706 RH PIPE	-	1	Enquire
9	670172705	PIPE CLIP	670172705 PIPE CLIP	-	7	Enquire
10	675001079	CLIP	675001079 CLIP	-	3	Enquire
11	670172696	RH PIPE BRACKET	670172696 RH PIPE BRACKET	-	1	Enquire
11	670172746	LH PIPE BRACKET	670172746 LH PIPE BRACKET	-	1	Enquire
12	675001384	SCREW	675001384 SCREW	-	8	Enquire
13	670172745	LH FLEXIBLE PIPE	670172745 LH FLEXIBLE PIPE	-	1	Enquire
13	670172686	RH FLEXIBLE PIPE	670172686 RH FLEXIBLE PIPE	-	1	Enquire
14	675000276	SPRING PLATE	675000276 SPRING PLATE	-	2	Enquire
15	670173235	SCREW	670173235 SCREW	-	2	Enquire
16	670173236	WASHER	670173236 WASHER	-	4	Enquire
17	670172683	LIFTER SYSTEM PUMP FILLING TANK	670172683 LIFTER SYSTEM PUMP FILLING TANK	-	1	Enquire
18	670172684	TANK BRACKET	670172684 TANK BRACKET	-	1	Enquire
19	670172685	HOSE	670172685 HOSE	-	1	Enquire
20	675000552	COLLARD.14,5	675000552 COLLARD.14,5	-	2	Enquire
21	670173232	CLIP	670173232 CLIP	-	2	Enquire
22	670173233	CLIP	670173233 CLIP	-	1	Enquire
23	670173229	SCREW	670173229 SCREW	-	1	Enquire
24	675000250	GASKET	675000250 GASKET	-	2	Enquire
25	670176845	UNION	670176845 UNION	-	1	Enquire
26	670295237	LIFTER CONTROL UNIT	670295237 LIFTER CONTROL UNIT Bespoke Assembly Number 7002970 - 99999999;	-	1	Enquire
27	670172754	LIFTER CONTROL UNIT BRACKET	670172754 LIFTER CONTROL UNIT BRACKET	-	1	Enquire
28	670172755	BRACKET	670172755 BRACKET	-	1	Enquire
29	675000794	NUT	675000794 NUT	-	2	Enquire
31	670175142	SPACER	670175142 SPACER	-	2	Enquire
32	670181780	BRACKET	670181780 BRACKET	-	1	Enquire
33	670218725	WASHER	670218725 WASHER	-	2	Enquire
