FRONT SUSPENSION of Maserati Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP

View All

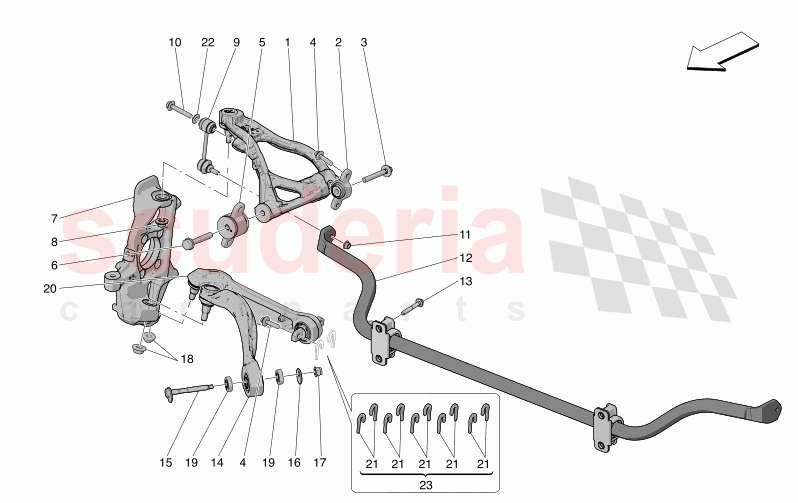

Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP - FRONT SUSPENSION (06101)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670156049	RH FRONT UPPER LEVER ASSEMBLY	Enquire	To Order
	670156051	LH FRONT UPPER LEVER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160347	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000051	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160337	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001196	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670175402	RH FRONT HUB HOLDER	Enquire	To Order
	670181952	LH FRONT HUB HOLDER	Enquire	To Order
	670181960	RH FRONT HUB HOLDER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675002403	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

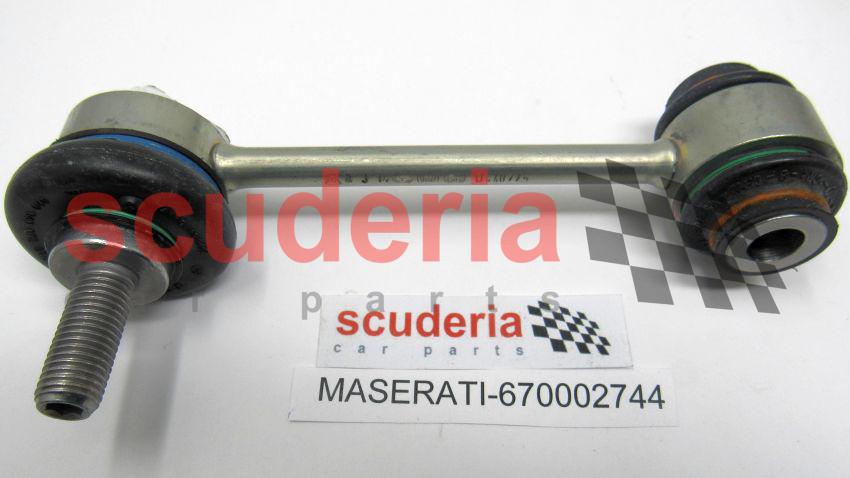

	670002744	BALL TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160647	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000184	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181110	FRONT STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000393	SCREWM10X55	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156096	LH FRONT SWINGING ARM	Enquire	To Order
	670156095	RH FRONT SWINGING ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174098	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000023	NUT M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001188	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160632	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160333	AXLE ROD	Enquire	To Order
	670160354	AXLE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670175780	CAMBER ADJUSTMENT PLATE	Enquire	To Order
	670175781	CAMBER ADJUSTMENT PLATE	Enquire	To Order
	670175782	CAMBER ADJUSTMENT PLATE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	670213189	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673013880	KIT CAMBER ADJUSTMENT PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670156049	RH FRONT UPPER LEVER ASSEMBLY	670156049 RH FRONT UPPER LEVER ASSEMBLY	-	1	Enquire
1	670156051	LH FRONT UPPER LEVER ASSEMBLY	670156051 LH FRONT UPPER LEVER ASSEMBLY	-	1	Enquire
2	670160347	BUSHING	670160347 BUSHING	-	2	Enquire
3	675000051	SCREW	675000051 SCREW	-	2	Enquire
4	675001345	SCREW	675001345 SCREW	-	12	Enquire
5	670160337	BUSHING	670160337 BUSHING	-	2	Enquire
6	675001196	SCREW	675001196 SCREW	-	2	Enquire
7	670175402	RH FRONT HUB HOLDER	670175402 RH FRONT HUB HOLDER Available with: DUAL-CAST STEEL BRAKES Not available with: CARBON CERAMIC BRAKES;	-	1	Enquire
7	670181952	LH FRONT HUB HOLDER	670181952 LH FRONT HUB HOLDER WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7000838 - 99999999; Available with: CARBON CERAMIC BRAKES Not available with: DUAL-CAST STEEL BRAKES;	-	1	Enquire
7	670181960	RH FRONT HUB HOLDER	670181960 RH FRONT HUB HOLDER WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7000838 - 99999999; Available with: CARBON CERAMIC BRAKES Not available with: DUAL-CAST STEEL BRAKES;	-	1	Enquire
7	670175401	LH FRONT HUB HOLDER	670175401 LH FRONT HUB HOLDER Available with: DUAL-CAST STEEL BRAKES Not available with: CARBON CERAMIC BRAKES;	-	1	Enquire
8	675002403	NUT	675002403 NUT Bespoke Assembly Number 7003417 - 99999999;	-	2	Enquire
9	670002744	BALL TIE ROD	670002744 BALL TIE ROD	-	2	Enquire
10	670160647	SCREW	670160647 SCREW	-	2	Enquire
11	675000184	NUT	675000184 NUT	-	2	Enquire
12	670181110	FRONT STABILIZER BAR	670181110 FRONT STABILIZER BAR	-	1	Enquire
13	675000393	SCREWM10X55	675000393 SCREWM10X55	-	4	Enquire
14	670156096	LH FRONT SWINGING ARM	670156096 LH FRONT SWINGING ARM	-	1	Enquire
14	670156095	RH FRONT SWINGING ARM	670156095 RH FRONT SWINGING ARM	-	1	Enquire
15	670160622	SCREW	670160622 SCREW	-	2	Enquire
16	670174098	WASHER	670174098 WASHER	-	2	Enquire
17	675000023	NUT M12	675000023 NUT M12	-	2	Enquire
18	675001188	NUT	675001188 NUT	-	4	Enquire
19	670160632	SPACER	670160632 SPACER	-	4	Enquire
20	670160333	AXLE ROD	670160333 AXLE ROD LH side;	-	1	Enquire
20	670160354	AXLE ROD	670160354 AXLE ROD RH side;	-	1	Enquire
21	670175780	CAMBER ADJUSTMENT PLATE	670175780 CAMBER ADJUSTMENT PLATE THICKNESS 0.5 mm;	-	4	Enquire
21	670175781	CAMBER ADJUSTMENT PLATE	670175781 CAMBER ADJUSTMENT PLATE THICKNESS 1 mm;	-	4	Enquire
21	670175782	CAMBER ADJUSTMENT PLATE	670175782 CAMBER ADJUSTMENT PLATE THICKNESS 2 mm;	-	4	Enquire
21	670175783	CAMBER ADJUSTMENT PLATE	670175783 CAMBER ADJUSTMENT PLATE THICKNESS 3 mm;	-	4	Enquire
21	670160335	CAMBER ADJUSTMENT PLATE	670160335 CAMBER ADJUSTMENT PLATE THICKNESS 4 mm;	-	4	Enquire
22	670213189	WASHER	670213189 WASHER	-	2	Enquire
23	673013880	KIT CAMBER ADJUSTMENT PLATE	673013880 KIT CAMBER ADJUSTMENT PLATE The kit includes 50 plates for each thickness;	-	1	Enquire
24	675009264	WASHER	675009264 WASHER Bespoke Assembly Number 7003417 - 99999999;	-	2	Enquire
