Find Your Part

Authorised by Maserati SPA

IT SYSTEM of Maserati Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW

View All

Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW - IT SYSTEM

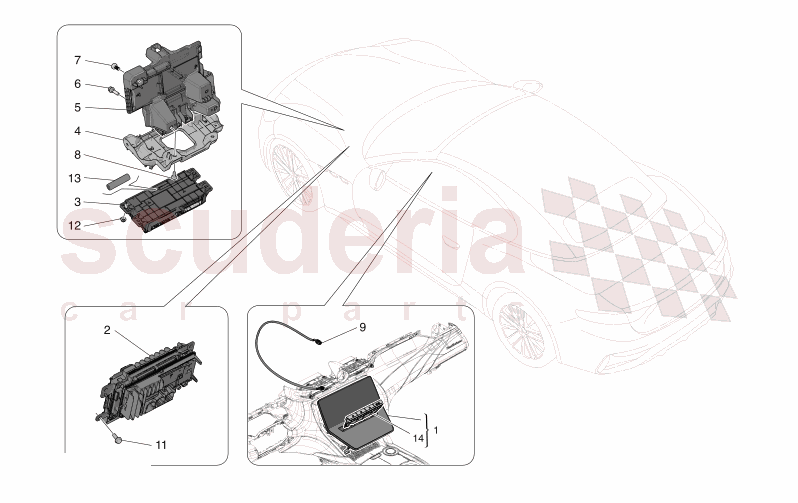

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RC072	WASHER-FIBRE ID6.5 OD12.7 T1.6	Enquire	To Order
	13A4181CP	PNL SD TO DECK FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670303957	ECU RADIO AND CAR NAVIGATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670303095	TELEMATICS BOX MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670215833	BRACKET	Enquire	To Order
	670216506	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670215834	COVER	Enquire	To Order
	670216505	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000242	SCREWM6X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035714	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670213749	DOMELIGHT WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002252	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001427	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673011017	TELEMATICS BOX MODULE BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015807	CENTRAL DISPLAY PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	00RC072	WASHER-FIBRE ID6.5 OD12.7 T1.6	00RC072 WASHER-FIBRE ID6.5 OD12.7 T1.6 WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 8003010; EU AU US UK JP ME JRH IN KO N0 N8;	-	1	Enquire
1	13A4181CP	PNL SD TO DECK FOAM	13A4181CP PNL SD TO DECK FOAM WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8003011 - 99999999; EU AU US UK JP ME JRH IN KO N0 N8 UK3 GB;	-	1	Enquire
2	670303957	ECU RADIO AND CAR NAVIGATOR	670303957 ECU RADIO AND CAR NAVIGATOR WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002466 - 99999999; Available with: EUROPEAN MARKET NAVIGATION SYSTEM WITH DISPLAY ;	-	1	Enquire
3	670303095	TELEMATICS BOX MODULE	670303095 TELEMATICS BOX MODULE Available with: GLOBAL TELEMATICS BOX MODULE (TBM), CONNECTIVITY SERVICES - EUROPE, E-CALL ;	-	1	Enquire
4	670215833	BRACKET	670215833 BRACKET EU CN US JP ME KO N0;	-	1	Enquire
4	670216506	BRACKET	670216506 BRACKET AU UK JRH IN N8 UK3 GB;	-	1	Enquire
5	670215834	COVER	670215834 COVER EU CN US JP ME KO N0;	-	1	Enquire
5	670216505	COVER	670216505 COVER AU UK JRH IN N8 UK3 GB;	-	1	Enquire
6	675000242	SCREWM6X25	675000242 SCREWM6X25	-	3	Enquire
7	675000720	SCREW	675000720 SCREW	-	1	Enquire
8	670035714	SCREW	670035714 SCREW	-	3	Enquire
9	670213749	DOMELIGHT WIRING HARNESS	670213749 DOMELIGHT WIRING HARNESS	-	1	Enquire
11	675002252	SCREW	675002252 SCREW	-	1	Enquire
12	675001427	NUT	675001427 NUT	-	4	Enquire
13	673011017	TELEMATICS BOX MODULE BATTERY	673011017 TELEMATICS BOX MODULE BATTERY	-	1	Enquire
14	673015807	CENTRAL DISPLAY PLATE	673015807 CENTRAL DISPLAY PLATE EU AU US UK JP ME JRH IN KO N0 N8 UK3 GB;	-	1	Enquire
