A/C UNIT: ENGINE COMPARTMENT DEVICES of Maserati Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW

View All

Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW - A/C UNIT: ENGINE COMPARTMENT DEVICES

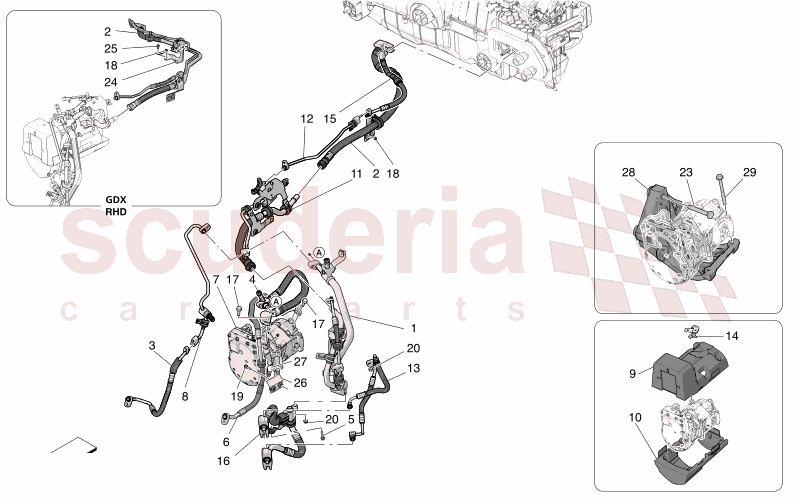

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670298847	FLEXIBLE PIPE EVAPOURATOR JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182088	LHD FLEXIBLE PIPE FROM CONDENSER TO EVAP	Enquire	To Order
	670293595	rhd flexible pipe from conde	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182093	PIPE BETWEEN CONDENSER AND JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182087	FLEXIBLE PIPE FROM UNION TO COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670303559	flexible hose compressor to	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670295810	AC COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182090	FLEXIBLE PIPE FROM CONDENSER TO EVAPORAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670296956	COMPRESSOR UPPER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670296957	COMPRESSOR BOTTOM COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182094	flexible pipe junction evapo	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182095	FLEXIBLE PIPE JUNCTION CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182096	FLEXIBLE PIPE JUNCTION COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670299704	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182098	FLEXIBLE PIPE JUNCTION EVAPOURATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182097	FLEXIBLE PIPE JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001064	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000969	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001235	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001096	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182469	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670293596	bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001117	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670303560	bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001307	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159218	STAFFA RINFORZO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159221	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670298847	FLEXIBLE PIPE EVAPOURATOR JUNCTION	670298847 FLEXIBLE PIPE EVAPOURATOR JUNCTION	-	1	Enquire
2	670182088	LHD FLEXIBLE PIPE FROM CONDENSER TO EVAP	670182088 LHD FLEXIBLE PIPE FROM CONDENSER TO EVAP EU CN US JP ME KO N0;	-	1	Enquire
2	670293595	rhd flexible pipe from conde	670293595 rhd flexible pipe from conde AU UK JRH IN N8 UK3 GB;	-	1	Enquire
3	670182093	PIPE BETWEEN CONDENSER AND JUNCTION	670182093 PIPE BETWEEN CONDENSER AND JUNCTION	-	1	Enquire
4	670182087	FLEXIBLE PIPE FROM UNION TO COMPRESSOR	670182087 FLEXIBLE PIPE FROM UNION TO COMPRESSOR	-	1	Enquire
5	675001127	SCREW	675001127 SCREW	-	3	Enquire
6	670303559	flexible hose compressor to	670303559 flexible hose compressor to	-	1	Enquire
7	670295810	AC COMPRESSOR	670295810 AC COMPRESSOR	-	1	Enquire
8	670182090	FLEXIBLE PIPE FROM CONDENSER TO EVAPORAT	670182090 FLEXIBLE PIPE FROM CONDENSER TO EVAPORAT	-	1	Enquire
9	670296956	COMPRESSOR UPPER COVER	670296956 COMPRESSOR UPPER COVER	-	1	Enquire
10	670296957	COMPRESSOR BOTTOM COVER	670296957 COMPRESSOR BOTTOM COVER	-	1	Enquire
11	670182094	flexible pipe junction evapo	670182094 flexible pipe junction evapo	-	1	Enquire
12	670182095	FLEXIBLE PIPE JUNCTION CONDENSER	670182095 FLEXIBLE PIPE JUNCTION CONDENSER EU CN US JP ME KO N0;	-	1	Enquire
13	670182096	FLEXIBLE PIPE JUNCTION COMPRESSOR	670182096 FLEXIBLE PIPE JUNCTION COMPRESSOR	-	1	Enquire
14	670299704	BRACKET	670299704 BRACKET	-	1	Enquire
15	670182098	FLEXIBLE PIPE JUNCTION EVAPOURATOR	670182098 FLEXIBLE PIPE JUNCTION EVAPOURATOR EU CN US JP ME KO N0;	-	1	Enquire
16	670182097	FLEXIBLE PIPE JUNCTION	670182097 FLEXIBLE PIPE JUNCTION	-	1	Enquire
17	675001064	SCREW	675001064 SCREW	-	4	Enquire
18	675000969	NUT	675000969 NUT	-	2	Enquire
19	675001235	SCREW	675001235 SCREW	-	2	Enquire
20	675001096	NUT	675001096 NUT	-	3	Enquire
23	670182469	SCREW	670182469 SCREW	-	3	Enquire
24	670293596	bracket	670293596 bracket AU UK JRH IN N8 UK3 GB;	-	1	Enquire
25	675001117	SCREW	675001117 SCREW AU UK JRH IN N8 UK3 GB;	-	1	Enquire
26	670303560	bracket	670303560 bracket	-	1	Enquire
27	675001307	NUT	675001307 NUT	-	1	Enquire
28	670159218	STAFFA RINFORZO	670159218 STAFFA RINFORZO	-	1	Enquire
29	670159221	SCREW	670159221 SCREW	-	4	Enquire
