EXTERNAL VEHICLE DEVICES of Maserati Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW

View All

Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW - EXTERNAL VEHICLE DEVICES

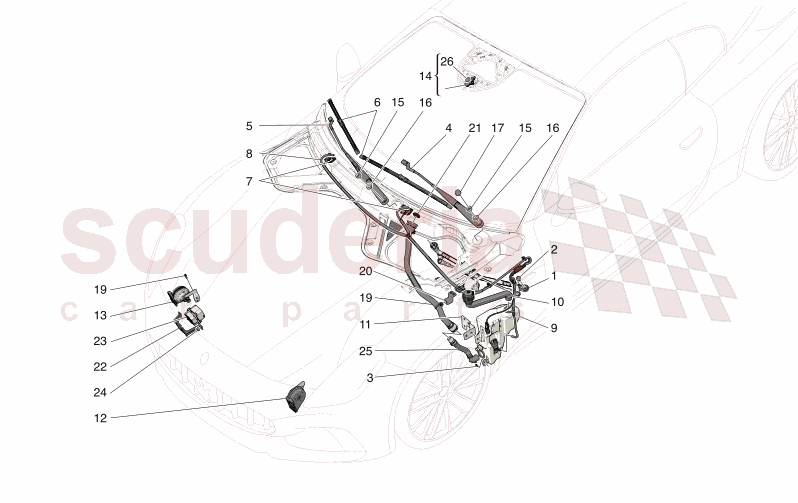

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670174688	WINDSHIELD WIPERS MOTOR (LHD	Enquire	To Order
	670174689	WINDSHIELD WIPERS MOTOR (RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001078	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001119	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158879	LHD DRIVER SIDE WIPER ARM	Enquire	To Order
	670158880	RHD DRIVER SIDE WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158881	RHD PASSENGER SIDE WIPER ARM	Enquire	To Order
	670158882	LHD PASSENGER SIDE WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673014598	WIPER BLADE KIT	Enquire	To Order
	673014599	WIPER BLADES KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670010292	JET FOR WINDOW WASHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158888	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670218171	WINDSCREEN WASHER TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670305645	WASHER TANK PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174681	FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670220203	DEEP TONE HORN	Enquire	To Order
	670220202	DEEP TONE HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159068	HIGH TONE HORN	Enquire	To Order
	670159069	HIGH TONE HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670310562	RAIN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001067	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001068	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007188	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670218173	WASHER TANK PIPE	Enquire	To Order
	670218174	WASHER TANK PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670218177	WASHER TANK BRACKET	Enquire	To Order
	670218176	WASHER TANK BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670218180	COVER CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670216828	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670176367	PEDESTRIAN HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000969	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670218172	WASHER TANK PIPE	Enquire	To Order
	670218175	WASHER TANK PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673016771	RAIN SENSOR GELPAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670174688	WINDSHIELD WIPERS MOTOR (LHD	670174688 WINDSHIELD WIPERS MOTOR (LHD EU CN US JP ME KO N0;	-	1	Enquire
1	670174689	WINDSHIELD WIPERS MOTOR (RHD	670174689 WINDSHIELD WIPERS MOTOR (RHD AU UK JRH IN N8 UK3 GB;	-	1	Enquire
2	675001078	SCREW	675001078 SCREW	-	3	Enquire
3	675001119	SCREW	675001119 SCREW	-	1	Enquire
4	670158879	LHD DRIVER SIDE WIPER ARM	670158879 LHD DRIVER SIDE WIPER ARM EU CN US JP ME KO N0;	-	1	Enquire
4	670158880	RHD DRIVER SIDE WIPER ARM	670158880 RHD DRIVER SIDE WIPER ARM AU UK JRH IN N8 UK3 GB;	-	1	Enquire
5	670158881	RHD PASSENGER SIDE WIPER ARM	670158881 RHD PASSENGER SIDE WIPER ARM EU CN US JP ME KO N0;	-	1	Enquire
5	670158882	LHD PASSENGER SIDE WIPER ARM	670158882 LHD PASSENGER SIDE WIPER ARM AU UK JRH IN N8 UK3 GB;	-	1	Enquire
6	673014598	WIPER BLADE KIT	673014598 WIPER BLADE KIT EU CN US JP ME KO N0;	-	1	Enquire
6	673014599	WIPER BLADES KIT	673014599 WIPER BLADES KIT AU UK JRH IN N8 UK3 GB;	-	1	Enquire
7	670010292	JET FOR WINDOW WASHING	670010292 JET FOR WINDOW WASHING	-	2	Enquire
8	670158888	PIPE	670158888 PIPE	-	1	Enquire
9	670218171	WINDSCREEN WASHER TANK	670218171 WINDSCREEN WASHER TANK	-	1	Enquire
10	670305645	WASHER TANK PIPE	670305645 WASHER TANK PIPE	-	1	Enquire
11	670174681	FIXING BRACKET	670174681 FIXING BRACKET	-	1	Enquire
12	670220203	DEEP TONE HORN	670220203 DEEP TONE HORN Available with: ELECTRONIC VEHICLE HORN ;	-	1	Enquire
12	670220202	DEEP TONE HORN	670220202 DEEP TONE HORN Not available with: ELECTRONIC VEHICLE HORN;	-	1	Enquire
13	670159068	HIGH TONE HORN	670159068 HIGH TONE HORN Available with: ELECTRONIC VEHICLE HORN ;	-	1	Enquire
13	670159069	HIGH TONE HORN	670159069 HIGH TONE HORN Not available with: ELECTRONIC VEHICLE HORN;	-	1	Enquire
14	670310562	RAIN SENSOR	670310562 RAIN SENSOR	-	1	Enquire
15	675001067	NUT	675001067 NUT	-	2	Enquire
16	675001068	WASHER	675001068 WASHER	-	2	Enquire
17	670007188	CAP	670007188 CAP	-	2	Enquire
19	670218173	WASHER TANK PIPE	670218173 WASHER TANK PIPE EU CN US JP ME KO N0;	-	1	Enquire
19	670218174	WASHER TANK PIPE	670218174 WASHER TANK PIPE AU UK JRH IN N8 UK3 GB;	-	1	Enquire
20	670218177	WASHER TANK BRACKET	670218177 WASHER TANK BRACKET EU US JP ME KO;	-	1	Enquire
20	670218176	WASHER TANK BRACKET	670218176 WASHER TANK BRACKET AU UK JRH IN N8 UK3 GB;	-	1	Enquire
21	670218180	COVER CAP	670218180 COVER CAP	-	1	Enquire
22	670216828	BRACKET	670216828 BRACKET	-	1	Enquire
23	670176367	PEDESTRIAN HORN	670176367 PEDESTRIAN HORN	-	1	Enquire
24	675000969	NUT	675000969 NUT	-	2	Enquire
25	670218172	WASHER TANK PIPE	670218172 WASHER TANK PIPE EU CN US JP ME KO N0;	-	1	Enquire
25	670218175	WASHER TANK PIPE	670218175 WASHER TANK PIPE AU UK JRH IN N8 UK3 GB;	-	1	Enquire
26	673016771	RAIN SENSOR GELPAD	673016771 RAIN SENSOR GELPAD	-	1	Enquire
