SHIELDS, TRIMS AND COVERING PANELS of Maserati Maserati GranSport Coupe (2005-2007)

View All

Maserati GranSport Coupe (2005-2007) - SHIELDS, TRIMS AND COVERING PANELS

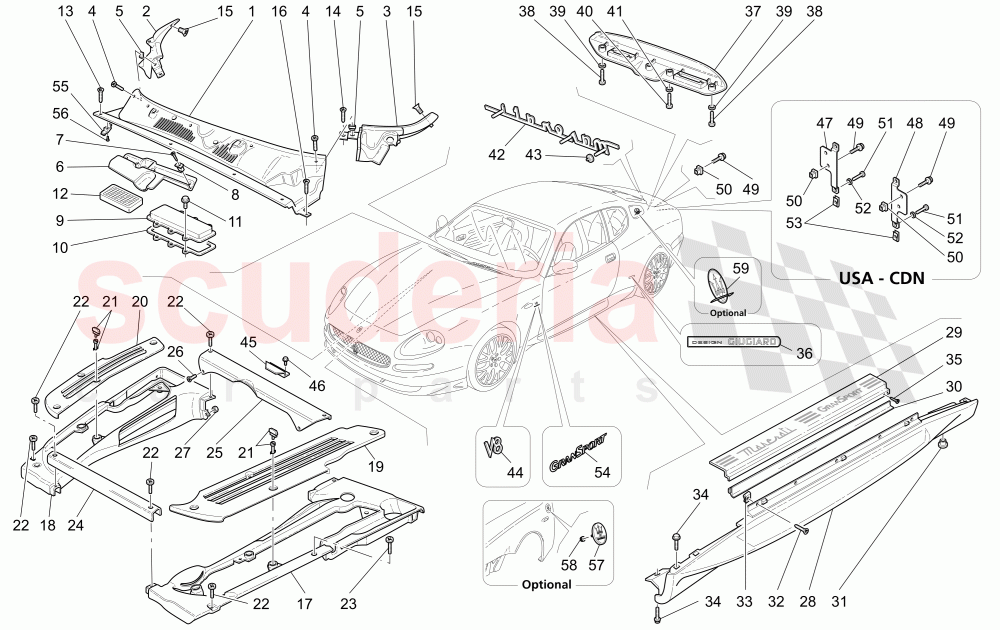

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66664400	CENTRAL UNDER WINDSHIELD PLATE	Enquire	To Order
	66365800	CENTRAL UNDER WINDSHIELD PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66664200	RH UNDER WINDSCREEN PLATE	Enquire	To Order
	66373400	RH UNDER WINDSCREEN PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66664300	L.H. UNDER WINDSHIELD PLATE	Enquire	To Order
	66373600	L.H. UNDER WINDSHIELD PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15672777	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67611500	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66664500	SHIELD FOR WATER	Enquire	To Order
	66413900	SHIELD FOR WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15783377	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14215480	BLOCK FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388110436	ANTIPOLLEN FILTER SHIELD	Enquire	To Order
	388100435	ANTIPOLLEN FILTER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300489	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10711227	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386110170	AIR INTAKE GRILL	Enquire	To Order
	386100170	AIR INTAKE GRILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15783377	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15783377	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15917217	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15783377	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67402000	L.H. SIDE COVER	Enquire	To Order
	67247500	L.H. SIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67401900	R.H. SIDE COVER	Enquire	To Order
	67240000	R.H. SIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67247600	L.H. GRILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66492500	R.H. GRILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68503400	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67194000	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67194100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66069100	ENGINE COMPARTMENT FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66110800	ENGINE COMPARTMENT REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13299177	Screw PZ M5 X 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980138257	R.H. LATERAL SHIELD	Enquire	To Order
	980138258	L.H. LATERAL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68332500	R.H. UNDER DOOR MOULDING	Enquire	To Order
	68289000	R.H. UNDER DOOR MOULDING	Enquire	To Order
	68332600	L.H. UNDER DOOR MOULDING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	386100345	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66582800	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15532677	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7663916	Block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12678870	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67027100	Giugiario Design Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001202	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274214	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13283514	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67361800	Maserati Mark	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67417300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67559200	V8 Lettering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67032700	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10711227	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67516600	R.H. BRACKET FOR FIXING NUMBER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67516700	L.H. BRACKET FOR FIXING NUMBER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319220324	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14775211	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642878	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14370571	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68286800	GRANSPORT EMBLEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66058000	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15918177	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67956100	MASERATI MARK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89095500	RH Trident Emblem Sport Version	Enquire	To Order
	89095600	LH Trident Emblem Sport Version	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66664400	CENTRAL UNDER WINDSHIELD PLATE	66664400 CENTRAL UNDER WINDSHIELD PLATE Valid for RHD	-	1	Enquire
1	66365800	CENTRAL UNDER WINDSHIELD PLATE	66365800 CENTRAL UNDER WINDSHIELD PLATE Not for RHD	-	1	Enquire
2	66664200	RH UNDER WINDSCREEN PLATE	66664200 RH UNDER WINDSCREEN PLATE Valid for RHD	-	1	Enquire
2	66373400	RH UNDER WINDSCREEN PLATE	66373400 RH UNDER WINDSCREEN PLATE Not for RHD	-	1	Enquire
3	66664300	L.H. UNDER WINDSHIELD PLATE	66664300 L.H. UNDER WINDSHIELD PLATE Valid for RHD	-	1	Enquire
3	66373600	L.H. UNDER WINDSHIELD PLATE	66373600 L.H. UNDER WINDSHIELD PLATE Not for RHD	-	1	Enquire
4	15672777	SCREW	15672777 SCREW	-	2	Enquire
5	67611500	BLOCK	67611500 BLOCK	-	2	Enquire
6	66664500	SHIELD FOR WATER	66664500 SHIELD FOR WATER Valid for RHD	-	1	Enquire
6	66413900	SHIELD FOR WATER	66413900 SHIELD FOR WATER Not for RHD	-	1	Enquire
7	15783377	SCREW	15783377 SCREW	-	4	Enquire
8	14215480	BLOCK FOR SCREW	14215480 BLOCK FOR SCREW	-	4	Enquire
9	388110436	ANTIPOLLEN FILTER SHIELD	388110436 ANTIPOLLEN FILTER SHIELD Valid for RHD	-	1	Enquire
9	388100435	ANTIPOLLEN FILTER SHIELD	388100435 ANTIPOLLEN FILTER SHIELD Not for RHD	-	1	Enquire
10	388300489	GASKET	388300489 GASKET	-	1	Enquire
11	10711227	SCREW	10711227 SCREW M5X12	-	6	Enquire
12	386110170	AIR INTAKE GRILL	386110170 AIR INTAKE GRILL Valid for RHD	-	1	Enquire
12	386100170	AIR INTAKE GRILL	386100170 AIR INTAKE GRILL Not for RHD	-	1	Enquire
13	15783377	SCREW	15783377 SCREW	-	4	Enquire
14	15783377	SCREW	15783377 SCREW	-	2	Enquire
15	15917217	SCREW	15917217 SCREW	-	4	Enquire
16	15783377	SCREW	15783377 SCREW	-	2	Enquire
17	67402000	L.H. SIDE COVER	67402000 L.H. SIDE COVER Valid for RHD	-	1	Enquire
17	67247500	L.H. SIDE COVER	67247500 L.H. SIDE COVER Not for RHD	-	1	Enquire
18	67401900	R.H. SIDE COVER	67401900 R.H. SIDE COVER Valid for RHD	-	1	Enquire
18	67240000	R.H. SIDE COVER	67240000 R.H. SIDE COVER Not for RHD	-	1	Enquire
19	67247600	L.H. GRILL	67247600 L.H. GRILL	-	1	Enquire
20	66492500	R.H. GRILL	66492500 R.H. GRILL	-	1	Enquire
21	68503400	PIN	68503400 PIN	-	8	Enquire
22	67194000	Screw	67194000 Screw	-	10	Enquire
23	67194100	SCREW	67194100 SCREW	-	2	Enquire
24	66069100	ENGINE COMPARTMENT FRONT COVER	66069100 ENGINE COMPARTMENT FRONT COVER	-	1	Enquire
25	66110800	ENGINE COMPARTMENT REAR COVER	66110800 ENGINE COMPARTMENT REAR COVER	-	1	Enquire
26	13299177	Screw PZ M5 X 10	13299177 Screw PZ M5 X 10	-	2	Enquire
27	14059114	NUT	14059114 NUT	-	2	Enquire
28	980138257	R.H. LATERAL SHIELD	980138257 R.H. LATERAL SHIELD	-	1	Enquire
28	980138258	L.H. LATERAL SHIELD	980138258 L.H. LATERAL SHIELD	-	1	Enquire
29	68332500	R.H. UNDER DOOR MOULDING	68332500 R.H. UNDER DOOR MOULDING Optional- -Carbon	-	1	Enquire
29	68289000	R.H. UNDER DOOR MOULDING	68289000 R.H. UNDER DOOR MOULDING Standard	-	1	Enquire
29	68332600	L.H. UNDER DOOR MOULDING	68332600 L.H. UNDER DOOR MOULDING Optional- -Carbon	-	1	Enquire
29	68289100	L.H. UNDER DOOR MOULDING	68289100 L.H. UNDER DOOR MOULDING Standard	-	1	Enquire
30	386100345	GASKET	386100345 GASKET	-	2	Enquire
31	66582800	PLUG	66582800 PLUG	-	4	Enquire
32	15532677	SCREW	15532677 SCREW	-	28	Enquire
33	7663916	Block	7663916 Block	-	28	Enquire
34	11730624	SCREW	11730624 SCREW	-	8	Enquire
35	12678870	SCREW	12678870 SCREW	-	6	Enquire
36	67027100	Giugiario Design Plate	67027100 Giugiario Design Plate	-	2	Enquire
37	980001202	PLATE	980001202 PLATE	-	1	Enquire
38	13274214	SCREW	13274214 SCREW	-	2	Enquire
39	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5 D 6,15-18X 1,5	-	2	Enquire
40	13283514	SCREW	13283514 SCREW	-	1	Enquire
41	12638124	WASHER	12638124 WASHER	-	1	Enquire
42	67361800	Maserati Mark	67361800 Maserati Mark	-	1	Enquire
43	67417300	CLIP	67417300 CLIP	-	3	Enquire
44	67559200	V8 Lettering	67559200 V8 Lettering	-	2	Enquire
45	67032700	BRACKET	67032700 BRACKET	-	1	Enquire
46	10711227	SCREW	10711227 SCREW M5X12	-	2	Enquire
47	67516600	R.H. BRACKET FOR FIXING NUMBER PLATE	67516600 R.H. BRACKET FOR FIXING NUMBER PLATE Valid for USA and CDN	-	1	Enquire
48	67516700	L.H. BRACKET FOR FIXING NUMBER PLATE	67516700 L.H. BRACKET FOR FIXING NUMBER PLATE Valid for USA and CDN	-	1	Enquire
49	15688070	SCREW	15688070 SCREW	-	4	Enquire
50	319220324	CLIP	319220324 CLIP	-	4	Enquire
51	14775211	SCREW	14775211 SCREW M4X8 Valid for USA and CDN	-	4	Enquire
52	12642878	WASHER	12642878 WASHER D. 4.15-12X 1 Valid for USA and CDN	-	4	Enquire
53	14370571	BRACKET	14370571 BRACKET Valid for USA and CDN	-	4	Enquire
54	68286800	GRANSPORT EMBLEM	68286800 GRANSPORT EMBLEM	-	2	Enquire
55	66058000	BRACKET	66058000 BRACKET	-	3	Enquire
56	15918177	SCREW	15918177 SCREW	-	3	Enquire
57	67956100	MASERATI MARK	67956100 MASERATI MARK Optional- -Maserati mark in the front fender	-	2	Enquire
58	13046011	NUT	13046011 NUT M5 Optional- -Maserati mark in the front fender	-	2	Enquire
59	89095500	RH Trident Emblem Sport Version	89095500 RH Trident Emblem Sport Version Optional- -Limited Edition version	-	1	Enquire
59	89095600	LH Trident Emblem Sport Version	89095600 LH Trident Emblem Sport Version Optional- -Limited Edition version	-	1	Enquire
