FRONT STRUCTURAL FRAMES AND SHEET PANELS of Maserati Maserati GranSport Coupe (2005-2007)

View All

Maserati GranSport Coupe (2005-2007) - FRONT STRUCTURAL FRAMES AND SHEET PANELS

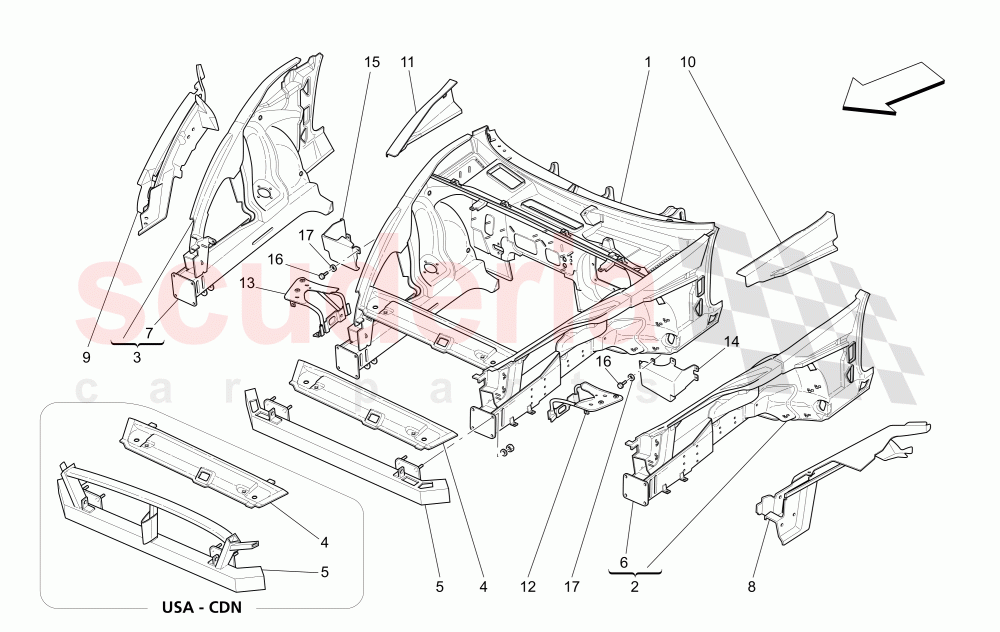

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980138027	FRONT CHASSIS ASSEMBLY	Enquire	To Order
	980138026	FRONT CHASSIS ASSEMBLY	Enquire	To Order
	980138025	FRONT CHASSIS ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001051	L.H. FRONT INNER LATERAL FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001052	R.H. FRONT INNER LATERAL FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001170	FRONT CROSS MEMBER ASS.	Enquire	To Order
	980001049	FRONT CROSS MEMBER ASS.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68824300	FRONT BULL BAR	Enquire	To Order
	66244400	FRONT BULL BAR	Enquire	To Order
	68823500	FRONT BULL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001053	L.H. FRONT SPAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001054	R.H. FRONT SPAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001055	L.H. FRONT LATERAL FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001056	R.H. FRONT LATERAL FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66305400	REAR LH BODY SIDE CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66305300	REAR RH BODY SIDE CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65965000	L.H. HEADLIGHT SUPPORTING BRAKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65964900	R.H. HEADLIGHT SUPPORTING BRAKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66248200	L.H. LONGITUDINAL MEMBER FRONT REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66248100	R.H. LONGITUDINAL MEMBER FRONT REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902087	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644477	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	980138027	FRONT CHASSIS ASSEMBLY	980138027 FRONT CHASSIS ASSEMBLY Valid for RHD	-	1	Enquire
1	980138026	FRONT CHASSIS ASSEMBLY	980138026 FRONT CHASSIS ASSEMBLY Valid for USA and CDN	-	1	Enquire
1	980138025	FRONT CHASSIS ASSEMBLY	980138025 FRONT CHASSIS ASSEMBLY Not for USA, CDN and RHD	-	1	Enquire
2	980001051	L.H. FRONT INNER LATERAL FRAME	980001051 L.H. FRONT INNER LATERAL FRAME	-	1	Enquire
3	980001052	R.H. FRONT INNER LATERAL FRAME	980001052 R.H. FRONT INNER LATERAL FRAME	-	1	Enquire
4	980001170	FRONT CROSS MEMBER ASS.	980001170 FRONT CROSS MEMBER ASS. Valid for USA and CDN	-	1	Enquire
4	980001049	FRONT CROSS MEMBER ASS.	980001049 FRONT CROSS MEMBER ASS. Not for USA and CDN	-	1	Enquire
5	68824300	FRONT BULL BAR	68824300 FRONT BULL BAR Valid for CDN	-	1	Enquire
5	66244400	FRONT BULL BAR	66244400 FRONT BULL BAR Not for USA and CDN	-	1	Enquire
5	68823500	FRONT BULL BAR	68823500 FRONT BULL BAR Valid for USA	-	1	Enquire
6	980001053	L.H. FRONT SPAR	980001053 L.H. FRONT SPAR	-	1	Enquire
7	980001054	R.H. FRONT SPAR	980001054 R.H. FRONT SPAR	-	1	Enquire
8	980001055	L.H. FRONT LATERAL FRAME	980001055 L.H. FRONT LATERAL FRAME	-	1	Enquire
9	980001056	R.H. FRONT LATERAL FRAME	980001056 R.H. FRONT LATERAL FRAME	-	1	Enquire
10	66305400	REAR LH BODY SIDE CONNECTION	66305400 REAR LH BODY SIDE CONNECTION	-	1	Enquire
11	66305300	REAR RH BODY SIDE CONNECTION	66305300 REAR RH BODY SIDE CONNECTION	-	1	Enquire
12	65965000	L.H. HEADLIGHT SUPPORTING BRAKET	65965000 L.H. HEADLIGHT SUPPORTING BRAKET	-	1	Enquire
13	65964900	R.H. HEADLIGHT SUPPORTING BRAKET	65964900 R.H. HEADLIGHT SUPPORTING BRAKET	-	1	Enquire
14	66248200	L.H. LONGITUDINAL MEMBER FRONT REINFORCEMENT	66248200 L.H. LONGITUDINAL MEMBER FRONT REINFORCEMENT	-	1	Enquire
15	66248100	R.H. LONGITUDINAL MEMBER FRONT REINFORCEMENT	66248100 R.H. LONGITUDINAL MEMBER FRONT REINFORCEMENT	-	1	Enquire
16	10902087	SCREW	10902087 SCREW	-	13	Enquire
17	12644477	WASHER	12644477 WASHER	-	13	Enquire
