FRONT DOORS: MECHANISMS of Maserati Maserati GranSport Coupe (2005-2007)

View All

Maserati GranSport Coupe (2005-2007) - FRONT DOORS: MECHANISMS

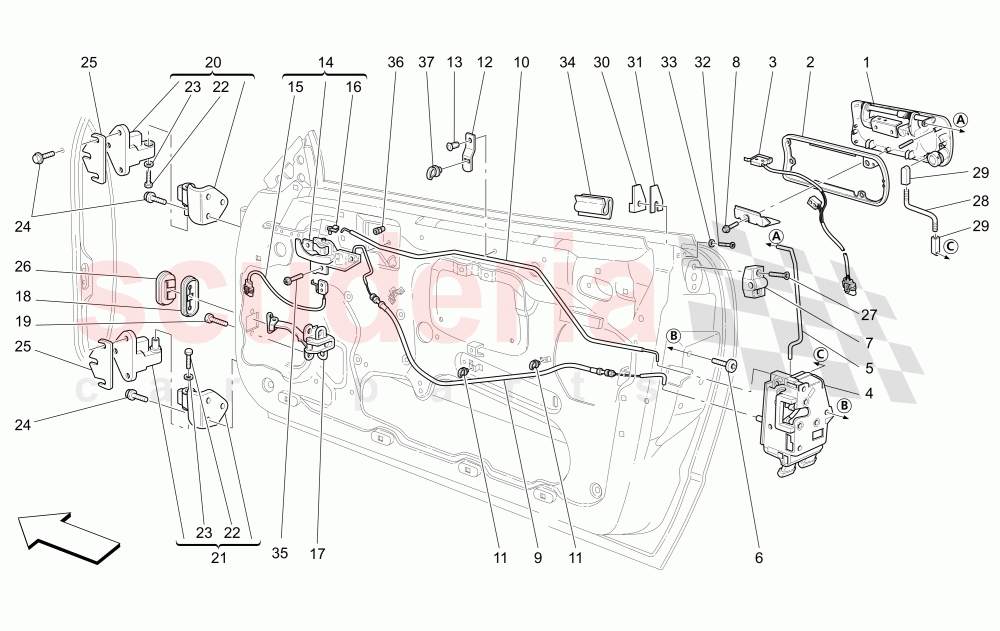

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980000918	R.H. DOOR OUTSIDE HANDLE	Enquire	To Order
	980000917	L.H. DOOR OUTSIDE HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000965	L.H. HANDLE GASKET	Enquire	To Order
	980000966	R.H. HANDLE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000964	R.H. MICROSWITCH AND CABLE	Enquire	To Order
	980000963	L.H. MICROSWITCH AND CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67294900	L.H. DOOR LOCK	Enquire	To Order
	67294800	R.H. DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384500395	L.H. DOOR HANDLE LOCK TIE ROD	Enquire	To Order
	384500396	R.H. DOOR HANDLE LOCK TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46401658	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60594692	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16284934	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67237000	BOWDEN CABLE RH DOOR HANDLE	Enquire	To Order
	67237100	BOWDEN CABLE LH DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68151800	L.H. DOOR SAFETY TIE ROD	Enquire	To Order
	68151600	R.H. DOOR SAFETY TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14572587	CABLES RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68152300	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15624311	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67236900	L.H. DOOR INTERNAL HANDLE	Enquire	To Order
	67236800	R.H. DOOR INTERNAL HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300615	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82377992	CABLES RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60624357	STOP TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60624899	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11620021	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67358300	UPPER LEFT HINGE ASSEMBLY	Enquire	To Order
	67358200	UPPER RIGHT HINGE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67358000	LOWER RIGHT HINGE ASSEMLBY	Enquire	To Order
	67358100	LOWER LEFT HINGE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902434	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11586024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	382500536	SHIMMING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60624898	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67420200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384500390	TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	53451352	JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387700404	R.H. REAR GUIDE SHOE	Enquire	To Order
	387700405	L.H. REAR GUIDE SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387700406	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271617	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135900043	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66133300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689907	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60585246	NUT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14573280	CABLES RETAINING CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	980000918	R.H. DOOR OUTSIDE HANDLE	980000918 R.H. DOOR OUTSIDE HANDLE	-	1	Enquire
1	980000917	L.H. DOOR OUTSIDE HANDLE	980000917 L.H. DOOR OUTSIDE HANDLE	-	1	Enquire
2	980000965	L.H. HANDLE GASKET	980000965 L.H. HANDLE GASKET	-	1	Enquire
2	980000966	R.H. HANDLE GASKET	980000966 R.H. HANDLE GASKET	-	1	Enquire
3	980000964	R.H. MICROSWITCH AND CABLE	980000964 R.H. MICROSWITCH AND CABLE	-	1	Enquire
3	980000963	L.H. MICROSWITCH AND CABLE	980000963 L.H. MICROSWITCH AND CABLE	-	1	Enquire
4	67294900	L.H. DOOR LOCK	67294900 L.H. DOOR LOCK	-	1	Enquire
4	67294800	R.H. DOOR LOCK	67294800 R.H. DOOR LOCK	-	1	Enquire
5	384500395	L.H. DOOR HANDLE LOCK TIE ROD	384500395 L.H. DOOR HANDLE LOCK TIE ROD	-	1	Enquire
5	384500396	R.H. DOOR HANDLE LOCK TIE ROD	384500396 R.H. DOOR HANDLE LOCK TIE ROD	-	1	Enquire
6	46401658	SCREW	46401658 SCREW	-	6	Enquire
7	60594692	FLEXIBLE PAD	60594692 FLEXIBLE PAD	-	2	Enquire
8	16284934	SCREW	16284934 SCREW	-	2	Enquire
9	67237000	BOWDEN CABLE RH DOOR HANDLE	67237000 BOWDEN CABLE RH DOOR HANDLE	-	1	Enquire
9	67237100	BOWDEN CABLE LH DOOR HANDLE	67237100 BOWDEN CABLE LH DOOR HANDLE	-	1	Enquire
10	68151800	L.H. DOOR SAFETY TIE ROD	68151800 L.H. DOOR SAFETY TIE ROD	-	1	Enquire
10	68151600	R.H. DOOR SAFETY TIE ROD	68151600 R.H. DOOR SAFETY TIE ROD	-	1	Enquire
11	14572587	CABLES RETAINING CLIP	14572587 CABLES RETAINING CLIP	-	4	Enquire
12	68152300	BRACKET	68152300 BRACKET	-	4	Enquire
13	15624311	RIVET	15624311 RIVET	-	6	Enquire
14	67236900	L.H. DOOR INTERNAL HANDLE	67236900 L.H. DOOR INTERNAL HANDLE	-	1	Enquire
14	67236800	R.H. DOOR INTERNAL HANDLE	67236800 R.H. DOOR INTERNAL HANDLE	-	1	Enquire
15	388300615	SWITCH	388300615 SWITCH	-	2	Enquire
16	82377992	CABLES RETAINING CLIP	82377992 CABLES RETAINING CLIP	-	2	Enquire
17	60624357	STOP TIE ROD	60624357 STOP TIE ROD	-	2	Enquire
18	60624899	GASKET	60624899 GASKET	-	2	Enquire
19	11620021	SCREW	11620021 SCREW	-	4	Enquire
20	67358300	UPPER LEFT HINGE ASSEMBLY	67358300 UPPER LEFT HINGE ASSEMBLY	-	1	Enquire
20	67358200	UPPER RIGHT HINGE ASSEMBLY	67358200 UPPER RIGHT HINGE ASSEMBLY	-	1	Enquire
21	67358000	LOWER RIGHT HINGE ASSEMLBY	67358000 LOWER RIGHT HINGE ASSEMLBY	-	1	Enquire
21	67358100	LOWER LEFT HINGE ASSEMBLY	67358100 LOWER LEFT HINGE ASSEMBLY	-	1	Enquire
22	10902434	SCREW	10902434 SCREW	-	4	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	4	Enquire
24	11586024	SCREW	11586024 SCREW	-	24	Enquire
25	382500536	SHIMMING PLATE	382500536 SHIMMING PLATE	-	8	Enquire
26	60624898	GASKET	60624898 GASKET	-	2	Enquire
27	67420200	SCREW	67420200 SCREW	-	4	Enquire
28	384500390	TIE ROD	384500390 TIE ROD	-	2	Enquire
29	53451352	JOINT	53451352 JOINT	-	4	Enquire
30	387700404	R.H. REAR GUIDE SHOE	387700404 R.H. REAR GUIDE SHOE	-	1	Enquire
30	387700405	L.H. REAR GUIDE SHOE	387700405 L.H. REAR GUIDE SHOE	-	1	Enquire
31	387700406	SHIM	387700406 SHIM	-	2	Enquire
32	13271617	SCREW	13271617 SCREW	-	2	Enquire
33	135900043	WASHER	135900043 WASHER	-	2	Enquire
34	66133300	CLIP	66133300 CLIP	-	6	Enquire
35	15689907	SCREW	15689907 SCREW	-	6	Enquire
36	60585246	NUT SCREW	60585246 NUT SCREW	-	6	Enquire
37	14573280	CABLES RETAINING CLIP	14573280 CABLES RETAINING CLIP	-	4	Enquire
