FRONT HUBS AND BRAKES WITH ABS of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - FRONT HUBS AND BRAKES WITH ABS

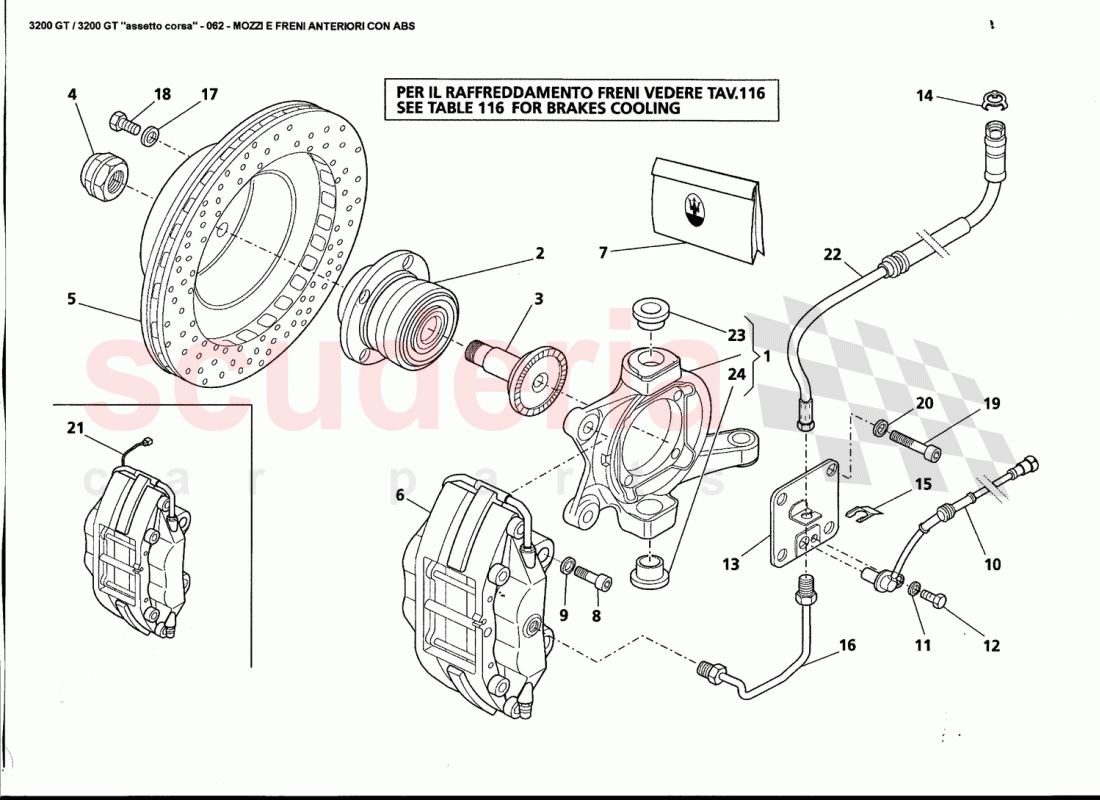

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	386600025	LH FRONT HUB CARRIER	Enquire	To Order
	386600026	RH FRONT HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387200373	FLANGED BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600326	HUB WITH WHEEL SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387200314	WHEEL SPEED SENSOR RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

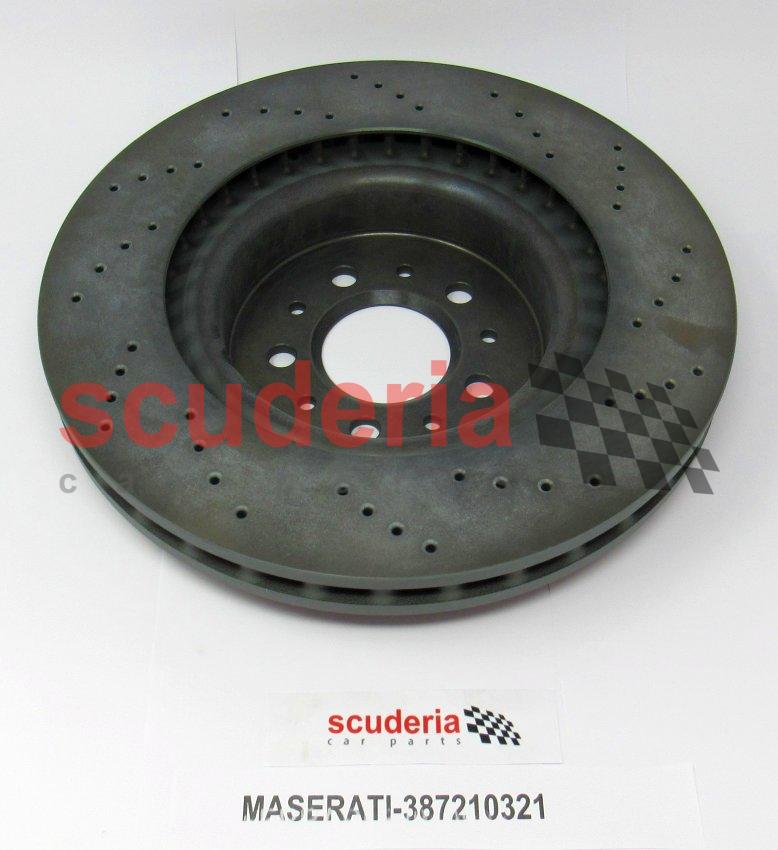

	387210321	Front Break Disc	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387200108	RH FRONT BRAKE CALIPER	Enquire	To Order
	200046	R.H. FRONT CALIPER	Enquire	To Order
	200050	R.H. FRONT CALIPER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	673010322	FRONT BRAKES PADS	Enquire	To Order
	673010322	FRONT BRAKES PADS	Enquire	To Order
	380201044	FRONT PADS KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	377200319	CALIPERS FIXING SCREEW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383800107	FRONT LH ABS SENSOR	Enquire	To Order
	383800108	FRONT RH ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	Bolt M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600150	RH ASSYRH PLATE SECURING ABS SENSOR	Enquire	To Order
	386600149	LH ASSYLH PLATE SECURING ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228185	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181897	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387400133	FRONT LH CALIPER RIGID BUNDY PIPE	Enquire	To Order
	387400134	FRONT RH CALIPER RIGID BUNDY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREWM8X50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14834121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11198374	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	386600025	LH FRONT HUB CARRIER	386600025 LH FRONT HUB CARRIER	-	1	Enquire
1	386600026	RH FRONT HUB CARRIER	386600026 RH FRONT HUB CARRIER	-	1	Enquire
2	387200373	FLANGED BEARING	387200373 FLANGED BEARING	-	2	Enquire
3	386600326	HUB WITH WHEEL SPEED SENSOR	386600326 HUB WITH WHEEL SPEED SENSOR	-	2	Enquire
4	387200314	WHEEL SPEED SENSOR RING NUT	387200314 WHEEL SPEED SENSOR RING NUT	-	2	Enquire
5	387210321	Front Break Disc	387210321 Front Break Disc	-	2	Enquire
6	387200108	RH FRONT BRAKE CALIPER	387200108 RH FRONT BRAKE CALIPER Valid till Ass. Nr.4383	-	1	Enquire
6	200046	R.H. FRONT CALIPER	200046 R.H. FRONT CALIPER Valid from Ass. Nr.4384	-	1	Enquire
6	200050	R.H. FRONT CALIPER	200050 R.H. FRONT CALIPER OPTIONAL	-	1	Enquire
6	200048	R.H. FRONT CALIPER	200048 R.H. FRONT CALIPER OPTIONAL	-	1	Enquire
6	387200107	LH FRONT BRAKE CALIPER	387200107 LH FRONT BRAKE CALIPER Valid till Ass. Nr.4383	-	1	Enquire
6	200045	L.H. FRONT CALIPER	200045 L.H. FRONT CALIPER Valid from Ass. Nr.4384	-	1	Enquire
6	200047	L.H. FRONT CALIPER	200047 L.H. FRONT CALIPER OPTIONAL	-	1	Enquire
6	387201119	L.H. FRONT CALIPER	387201119 L.H. FRONT CALIPER OPTIONAL	-	1	Enquire
7	673010322	FRONT BRAKES PADS	673010322 FRONT BRAKES PADS Valid till Ass. Nr.4383	-	1	Enquire
7	673010322	FRONT BRAKES PADS	673010322 FRONT BRAKES PADS Valid from Ass. Nr.4384	-	1	Enquire
7	380201044	FRONT PADS KIT	380201044 FRONT PADS KIT OPTIONAL	-	1	Enquire
7	380200046	FRONT BRAKE CALIPER KIT (RED PAGID)	380200046 FRONT BRAKE CALIPER KIT (RED PAGID) OPTIONAL	-	1	Enquire
8	377200319	CALIPERS FIXING SCREEW	377200319 CALIPERS FIXING SCREEW	-	4	Enquire
9	84653800	WASHER	84653800 WASHER	-	4	Enquire
10	383800107	FRONT LH ABS SENSOR	383800107 FRONT LH ABS SENSOR	-	1	Enquire
10	383800108	FRONT RH ABS SENSOR	383800108 FRONT RH ABS SENSOR	-	1	Enquire
11	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
12	10902424	Bolt M6 x 20	10902424 Bolt M6 x 20	-	2	Enquire
13	386600150	RH ASSYRH PLATE SECURING ABS SENSOR	386600150 RH ASSYRH PLATE SECURING ABS SENSOR	-	1	Enquire
13	386600149	LH ASSYLH PLATE SECURING ABS SENSOR	386600149 LH ASSYLH PLATE SECURING ABS SENSOR	-	1	Enquire
14	228185	CLIP	228185 CLIP	-	2	Enquire
15	181897	CLIP	181897 CLIP	-	2	Enquire
16	387400133	FRONT LH CALIPER RIGID BUNDY PIPE	387400133 FRONT LH CALIPER RIGID BUNDY PIPE	-	1	Enquire
16	387400134	FRONT RH CALIPER RIGID BUNDY PIPE	387400134 FRONT RH CALIPER RIGID BUNDY PIPE	-	1	Enquire
17	84653800	WASHER	84653800 WASHER	-	4	Enquire
18	14306924	SCREWM8X50	14306924 SCREWM8X50	-	4	Enquire
19	14834121	SCREW	14834121 SCREW	-	8	Enquire
20	11198374	WASHER	11198374 WASHER BRAKE PADS WEAR SENSOR / FLEXIBLE HOSE / UPPER BUSHING	-	8	Enquire
