BRAKE PEDAL AND PEDAL SUPPORT of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - BRAKE PEDAL AND PEDAL SUPPORT

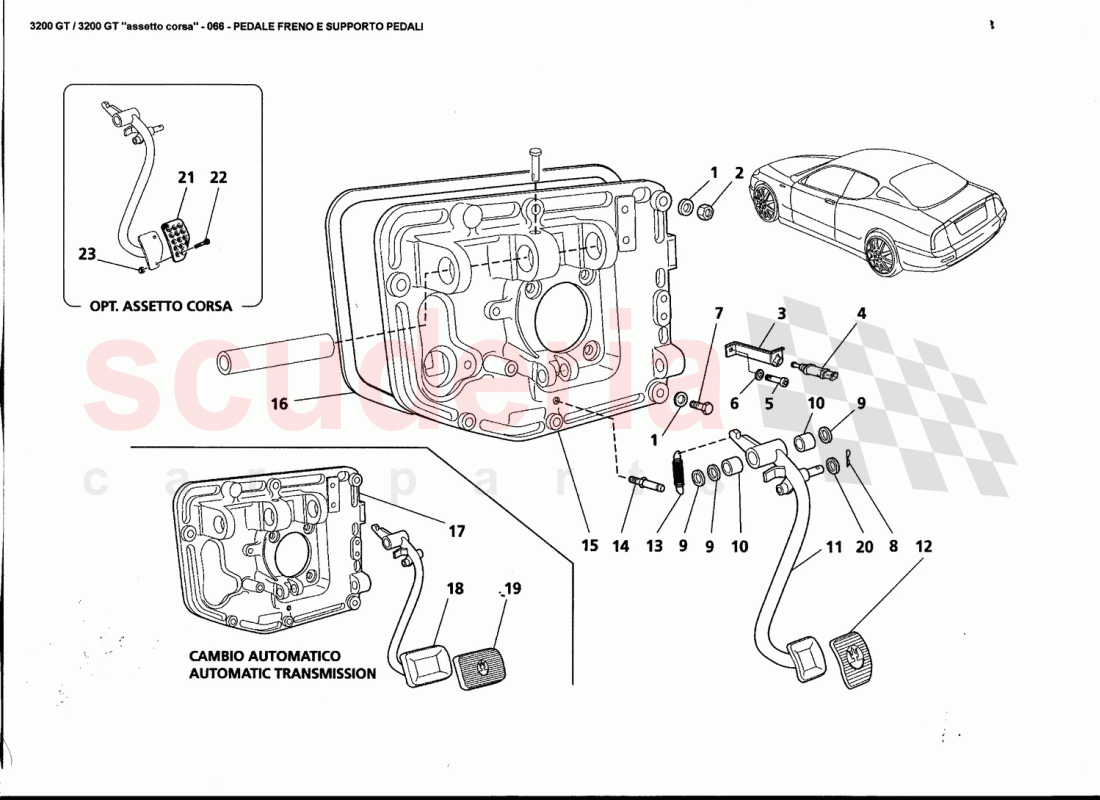

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388400120	PLATE	Enquire	To Order
	388410120	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334064	BRAKE PEDAL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREWM6X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	368402321	SPACER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318420320	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388410105	BRAKE PEDAL	Enquire	To Order
	388401011	BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	378430300	PEDAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388400308	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	378400368	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388410304	PEDAL ASSY SUPPORT	Enquire	To Order
	388400304	PEDAL ASSY SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	378496348	SUPPORT GASKET	Enquire	To Order
	378400348	SUPPORT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388415304	PEDAL ASSY SUPPORT	Enquire	To Order
	388405304	PEDAL ASSY SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388405104	BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318432300	BRAKE PEDAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12626024	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188874	BRAKE PEDAL PLATE	Enquire	To Order
	188802	BRAKE PEDAL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441324	Countersunk Allen Screw M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	84653800	WASHER	84653800 WASHER	-	7	Enquire
2	147985	NUT	147985 NUT	-	3	Enquire
3	388400120	PLATE	388400120 PLATE Only GS	-	1	Enquire
3	388410120	PLATE	388410120 PLATE Only GD	-	1	Enquire
4	334064	BRAKE PEDAL SWITCH	334064 BRAKE PEDAL SWITCH	-	1	Enquire
5	233600	SCREWM6X12	233600 SCREWM6X12	-	1	Enquire
6	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
7	16044124	SCREW	16044124 SCREW	-	4	Enquire
8	264555	SPLIT PIN	264555 SPLIT PIN	-	1	Enquire
9	368402321	SPACER WASHER	368402321 SPACER WASHER Valid for Manual Trasmission	-	3	Enquire
10	318420320	BUSHING	318420320 BUSHING	-	2	Enquire
11	388410105	BRAKE PEDAL	388410105 BRAKE PEDAL Valid for Manual Trasmission / Only GD	-	1	Enquire
11	388401011	BRAKE PEDAL	388401011 BRAKE PEDAL Valid for Manual Trasmission / Only GS	-	1	Enquire
12	378430300	PEDAL COVER	378430300 PEDAL COVER Valid for Manual Trasmission	-	1	Enquire
13	388400308	SPRING	388400308 SPRING	-	1	Enquire
14	378400368	PIN	378400368 PIN	-	1	Enquire
15	388410304	PEDAL ASSY SUPPORT	388410304 PEDAL ASSY SUPPORT Valid for Manual Trasmission / Only GD	-	1	Enquire
15	388400304	PEDAL ASSY SUPPORT	388400304 PEDAL ASSY SUPPORT Valid for Manual Trasmission / Only GS	-	1	Enquire
16	378496348	SUPPORT GASKET	378496348 SUPPORT GASKET Only GD	-	1	Enquire
16	378400348	SUPPORT GASKET	378400348 SUPPORT GASKET Only GS	-	1	Enquire
17	388415304	PEDAL ASSY SUPPORT	388415304 PEDAL ASSY SUPPORT Valid for Automatic Trasmission / Only GD	-	1	Enquire
17	388405304	PEDAL ASSY SUPPORT	388405304 PEDAL ASSY SUPPORT Valid for Automatic Trasmission / Only GS	-	1	Enquire
18	388405104	BRAKE PEDAL	388405104 BRAKE PEDAL Valid for Automatic Trasmission	-	1	Enquire
19	318432300	BRAKE PEDAL COVER	318432300 BRAKE PEDAL COVER Valid for Automatic Trasmission	-	1	Enquire
20	12626024	WASHER	12626024 WASHER	-	1	Enquire
21	188874	BRAKE PEDAL PLATE	188874 BRAKE PEDAL PLATE Optional / Racing trim / Valid for A.T.	-	1	Enquire
21	188802	BRAKE PEDAL PLATE	188802 BRAKE PEDAL PLATE Optional / Racing trim / Valid for C.M.-	-	1	Enquire
22	14441324	Countersunk Allen Screw M6 x 16	14441324 Countersunk Allen Screw M6 x 16 Optional / Racing trim	-	2	Enquire
23	14039614	NUT	14039614 NUT Optional / Racing trim	-	2	Enquire
