REAR HUBS AND BRAKES WITH ABS of Maserati Maserati 3200 GT / Assetto Corsa

View All

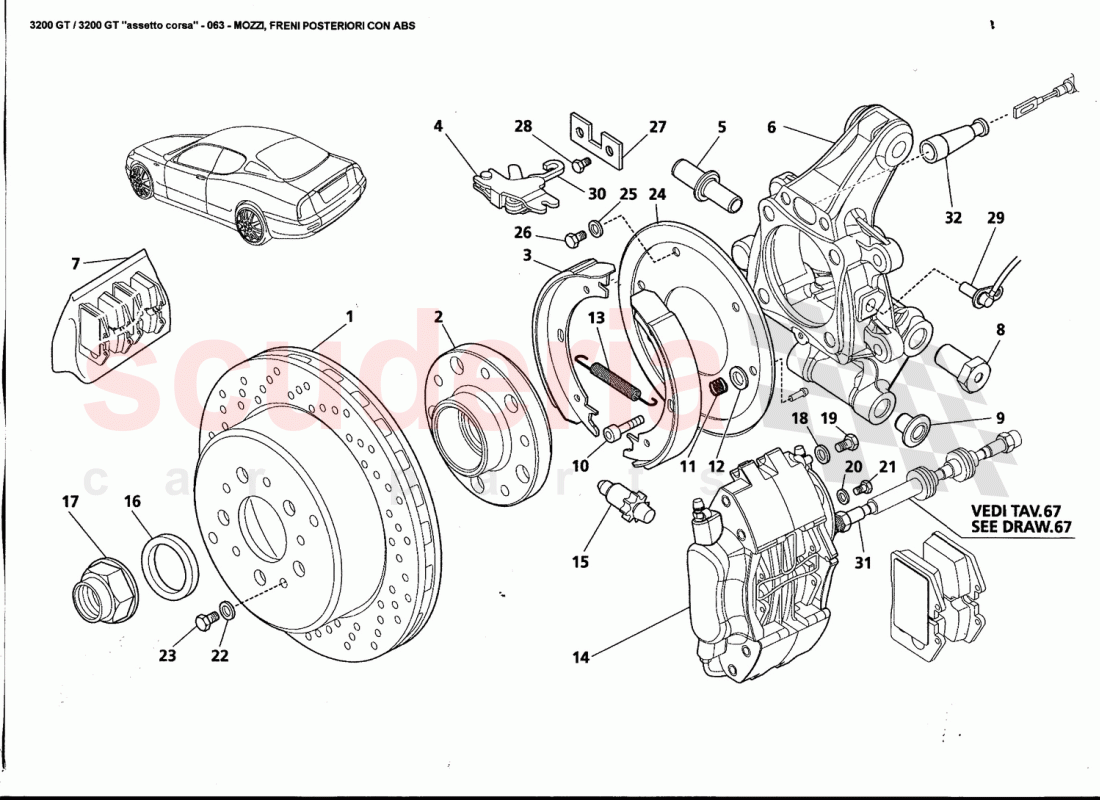

Maserati 3200 GT / Assetto Corsa - REAR HUBS AND BRAKES WITH ABS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	192996	Rear Brake Disc	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	157901	FLANGED BEARING FOR REAR SUSPENSION.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388000111	HAND BRAKE SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190782	HAND BRAKE CONTROL DEVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387000385	REAR SUSPENSION HUB BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387000003	REAR LH SUSPENSION HUB ASSY	Enquire	To Order

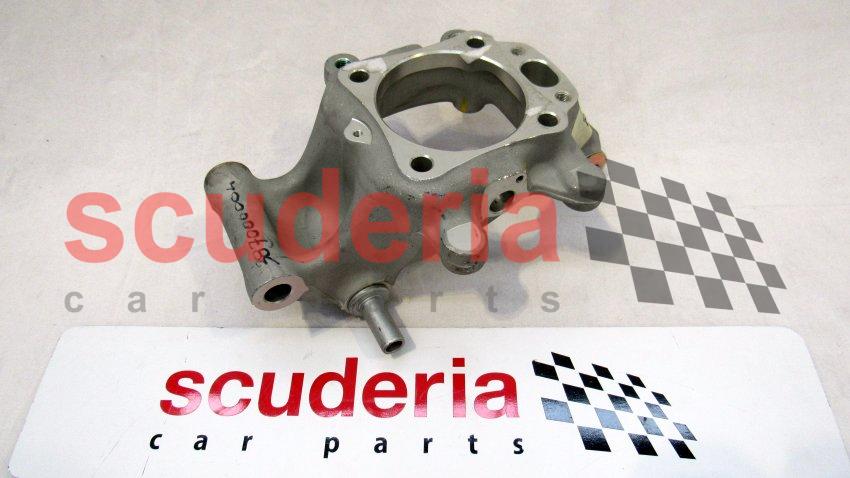

	387000004	REAR RH SUSPENSION HUB ASSY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	380201042	Rear Pads Kit	Enquire	IN STOCK
	380201042	Rear Pads Kit	Enquire	IN STOCK
	380200045	REAR BRAKE CALIPER KIT (YELLOW PAGID)	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	387000386	BUSH TO SECURE REAR HUB TO SHOCK ASORB.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387000376	BUSH FOR REAR SUSPENSION LOWER JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318020336	PIN SECURING SHOES TO DISK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318020337	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101276	HAND BRAKE SHOES RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387200112	RH REAR BRAKER CALIPER ASSY	Enquire	To Order
	200052	R.H. REAR CALIPER	Enquire	To Order
	200053	R.H. REAR CALIPER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	186572	Register For Hand Brake	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	387200315	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387200340	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377200319	CALIPERS FIXING SCREEW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	Bolt M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREWM8X50	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	388000348	HAND BRAKE SHOE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	Split Washer D. 6.1- 9.9X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREWM6X12	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	388000340	BLOCK ON PARKING BRAKE HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388000342	HAND BRAKE BRACKET SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383800105	ABS SENSOR FOR REAR PHONIC WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105270	FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387400330	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143938	CABLE SHEATH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	192996	Rear Brake Disc IN STOCK	192996 Rear Brake Disc IN STOCK	-	2	Enquire
2	157901	FLANGED BEARING FOR REAR SUSPENSION.	157901 FLANGED BEARING FOR REAR SUSPENSION.	-	2	Enquire
3	388000111	HAND BRAKE SHOE	388000111 HAND BRAKE SHOE	-	4	Enquire
4	190782	HAND BRAKE CONTROL DEVICE	190782 HAND BRAKE CONTROL DEVICE	-	2	Enquire
5	387000385	REAR SUSPENSION HUB BUSH	387000385 REAR SUSPENSION HUB BUSH	-	2	Enquire
6	387000003	REAR LH SUSPENSION HUB ASSY	387000003 REAR LH SUSPENSION HUB ASSY	-	1	Enquire
6	387000004	REAR RH SUSPENSION HUB ASSY IN STOCK	387000004 REAR RH SUSPENSION HUB ASSY IN STOCK	-	1	Enquire
7	380201042	Rear Pads Kit IN STOCK	380201042 Rear Pads Kit Valid till Ass. Nr.4383 IN STOCK	-	1	Enquire
7	380201042	Rear Pads Kit IN STOCK	380201042 Rear Pads Kit Valid from Ass. Nr.4384 IN STOCK	-	1	Enquire
7	380200045	REAR BRAKE CALIPER KIT (YELLOW PAGID)	380200045 REAR BRAKE CALIPER KIT (YELLOW PAGID) OPTIONAL	-	1	Enquire
7	380200047	REAR BRAKE CALIPER KIT (RED PAGID)	380200047 REAR BRAKE CALIPER KIT (RED PAGID) OPTIONAL	-	1	Enquire
8	387000386	BUSH TO SECURE REAR HUB TO SHOCK ASORB.	387000386 BUSH TO SECURE REAR HUB TO SHOCK ASORB.	-	2	Enquire
9	387000376	BUSH FOR REAR SUSPENSION LOWER JOINT	387000376 BUSH FOR REAR SUSPENSION LOWER JOINT	-	4	Enquire
10	318020336	PIN SECURING SHOES TO DISK	318020336 PIN SECURING SHOES TO DISK	-	4	Enquire
11	318020337	SPRING	318020337 SPRING	-	4	Enquire
12	84653800	WASHER	84653800 WASHER	-	2	Enquire
13	101276	HAND BRAKE SHOES RETURN SPRING	101276 HAND BRAKE SHOES RETURN SPRING	-	2	Enquire
14	387200112	RH REAR BRAKER CALIPER ASSY	387200112 RH REAR BRAKER CALIPER ASSY Valid till Ass. Nr.4383	-	1	Enquire
14	200052	R.H. REAR CALIPER	200052 R.H. REAR CALIPER Valid from Ass. Nr.4384	-	1	Enquire
14	200053	R.H. REAR CALIPER	200053 R.H. REAR CALIPER OPTIONAL	-	1	Enquire
14	200055	R.H. REAR CALIPER	200055 R.H. REAR CALIPER OPTIONAL	-	1	Enquire
14	387200111	LH REAR BRAKE CALIPER ASSY	387200111 LH REAR BRAKE CALIPER ASSY Valid till Ass. Nr.4383	-	1	Enquire
14	200051	L.H. REAR CALIPER	200051 L.H. REAR CALIPER Valid from Ass. Nr.4384	-	1	Enquire
14	200056	L.H. REAR CALIPER	200056 L.H. REAR CALIPER OPTIONAL	-	1	Enquire
14	200058	L.H. REAR CALIPER	200058 L.H. REAR CALIPER OPTIONAL	-	1	Enquire
15	186572	Register For Hand Brake IN STOCK	186572 Register For Hand Brake IN STOCK	-	2	Enquire
16	387200315	WASHER	387200315 WASHER	-	2	Enquire
17	387200340	RING NUT	387200340 RING NUT	-	2	Enquire
18	84653800	WASHER	84653800 WASHER	-	4	Enquire
19	377200319	CALIPERS FIXING SCREEW	377200319 CALIPERS FIXING SCREEW	-	4	Enquire
20	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
21	10902424	Bolt M6 x 20	10902424 Bolt M6 x 20	-	2	Enquire
22	84653800	WASHER	84653800 WASHER	-	2	Enquire
23	14306924	SCREWM8X50 IN STOCK	14306924 SCREWM8X50 IN STOCK	-	2	Enquire
24	388000348	HAND BRAKE SHOE PLATE	388000348 HAND BRAKE SHOE PLATE	-	2	Enquire
25	238108	Split Washer D. 6.1- 9.9X1.6	238108 Split Washer D. 6.1- 9.9X1.6	-	2	Enquire
26	233600	SCREWM6X12 IN STOCK	233600 SCREWM6X12 IN STOCK	-	2	Enquire
27	388000340	BLOCK ON PARKING BRAKE HUB CARRIER	388000340 BLOCK ON PARKING BRAKE HUB CARRIER	-	2	Enquire
28	388000342	HAND BRAKE BRACKET SCREW	388000342 HAND BRAKE BRACKET SCREW	-	4	Enquire
29	383800105	ABS SENSOR FOR REAR PHONIC WHEEL	383800105 ABS SENSOR FOR REAR PHONIC WHEEL	-	2	Enquire
30	105270	FORK	105270 FORK	-	2	Enquire
31	387400330	UNION	387400330 UNION	-	2	Enquire
32	143938	CABLE SHEATH	143938 CABLE SHEATH	-	2	Enquire
