Lamborghini Murcielago Roadster - Passenger Compartment Trims 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

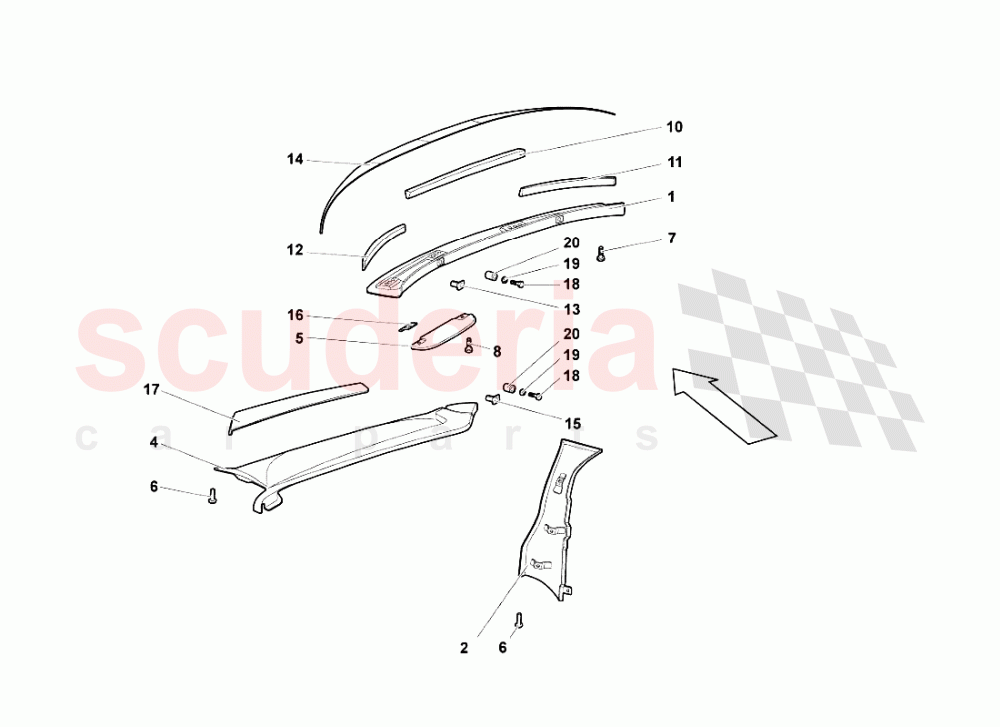

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	417868634	WINDSHIELD CROSS MEMBER COVERING ASSEMBLY (Supply VIN)	417868634 WINDSHIELD CROSS MEMBER COVERING ASSEMBLY (Supply VIN)	-	1	Enquire
002	417867282	RIGHT UPPER B-PILLAR COVERING ASSEMBLY (Supply VIN)	417867282 RIGHT UPPER B-PILLAR COVERING ASSEMBLY (Supply VIN)	-	1	Enquire
002	417867281	LEFT UPPER B-PILLAR COVERING ASSEMBLY (Supply VIN)	417867281 LEFT UPPER B-PILLAR COVERING ASSEMBLY (Supply VIN)	-	1	Enquire
004	417867233	LEFT A-PILLAR COVERING ASSEMBLY (Supply VIN)	417867233 LEFT A-PILLAR COVERING ASSEMBLY (Supply VIN)	-	1	Enquire
004	417867234	RIGHT A-PILLAR COVERING ASSEMBLY (Supply VIN)	417867234 RIGHT A-PILLAR COVERING ASSEMBLY (Supply VIN)	-	1	Enquire
005	417857551	SUN VISOR ASSEMBLY	417857551 SUN VISOR ASSEMBLY	-	2	Enquire
006	410863988	PLUG	410863988 PLUG	-	16	Enquire
007	WHT003111	SCREW M5X16	WHT003111 SCREW M5X16	-	8	Enquire
008	8700430	SCREW M4X16	8700430 SCREW M4X16	-	4	Enquire
010	417863731	CENTRAL FOAM INSIDE FENDER CROSS MEMBER	417863731 CENTRAL FOAM INSIDE FENDER CROSS MEMBER	-	1	Enquire
011	417863732	RIGHT FOAM INSIDE CROSS MEMBER	417863732 RIGHT FOAM INSIDE CROSS MEMBER	-	1	Enquire
012	417863733	LEFT FOAM INSIDE CROSS MEMBER	417863733 LEFT FOAM INSIDE CROSS MEMBER	-	1	Enquire
013	417867197	LEFT SLOT ON WINDSCREEN CROSS BAR	417867197 LEFT SLOT ON WINDSCREEN CROSS BAR	-	1	Enquire
013	417867198	RIGHT SLOT ON WINDSCREEN CROSS BAR	417867198 RIGHT SLOT ON WINDSCREEN CROSS BAR	-	1	Enquire
014	417845355	PANEL FOR WINDSCREEN	417845355 PANEL FOR WINDSCREEN	-	1	Enquire
015	417867333	LEFT FRONT SLOT ON PILLAR	417867333 LEFT FRONT SLOT ON PILLAR	-	1	Enquire
015	417867334	RIGHT FRONT SLOT ON PILLAR	417867334 RIGHT FRONT SLOT ON PILLAR	-	1	Enquire
016	417858745	SUN VISOR HINGE	417858745 SUN VISOR HINGE	-	1	Enquire
017	417867231	EXTERNAL LEFT PANEL ON PILLAR A	417867231 EXTERNAL LEFT PANEL ON PILLAR A	-	1	Enquire
017	417867232	EXTERNAL RIGHT PANEL ON PILLAR A	417867232 EXTERNAL RIGHT PANEL ON PILLAR A	-	1	Enquire
018	N90659905	SCREW HEX SOCKET M4 X 16	N90659905 SCREW HEX SOCKET M4 X 16	-	4	Enquire
019	N90485901	WASHER	N90485901 WASHER	-	4	Enquire
020	400867538	SPACER	400867538 SPACER	-	4	Enquire
