Passenger Compartment Trims 1

Find Your Part

Lamborghini Murcielago Roadster - Passenger Compartment Trims 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

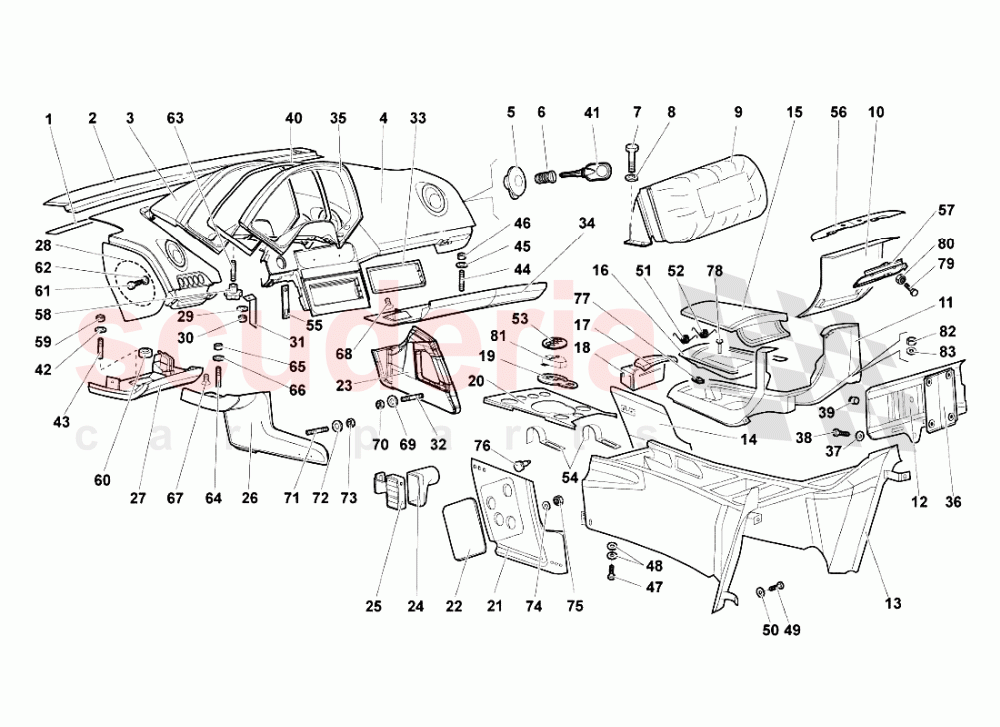

Passenger Compartment Trims 1 of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410819018
SEALING TAPE 		$30.59 1
002 410858349
UPPER FRONT DASHBOARD ASSEMBLY 		$4,422.04 1
003 410858278
DASHBOARD COVERING (LEATHER INTERIOR - SUPPLY VIN) 		$2,137.10 1
004 69013999
DASHBOARD UPPER PART ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$5,987.89 1
005 410919237
AIRBAG SWITCH 		$133.73 1
006 410919226
AIRBAG BLOCK 		$188.87 1
007 8700611
SCREW UNI 5931 6X14 		$0.49 4
008 WHT002963
WASHER 		$0.13 (98.2% off) 4
009 413880199
AIR BAG MODULE 		$8,436.71 1
010 418868711
TUNNEL FIXED COVER ASSEMBLY (Supply VIN - E-GEAR) 		$1,404.56 1
010 418868711A
TUNNEL FIXED COVER ASSEMBLY (Supply VIN - MANUAL GEARBOX) 		- 1 Enquire
011 410864205E
ARMREST CUSHION ASSEMBLY (E-GEAR - CARBON INTERIOR -SUPPLY VIN) 		$6,223.09 1
011 410864205D
ARMREST CUSHION ASSEMBLY (MANUAL GEARBOX - CARBON INTERIOR) 		$6,364.22 1
011 410863323
ARMREST CUSHION ASSEMBLY (E-GEAR - SUPPLY VIN) 		$1,653.23 1
011 410863323A
ARMREST CUSHION ASSEMBLY (MANUAL GEARBOX - SUPPLY VIN) 		$4,993.26 1
012 418867925
SAFETY BELT ROLLING UP DEVICE COVER ASSEMBLY (Supply VIN) 		$606.18 1
013 78013712
TUNNEL COVER ASSEMBLY (Supply VIN - MANUAL GEARBOX) 		$11,142.43 1
013 413863242B
TUNNEL COVER ASSEMBLY (Supply VIN - E-GEAR) 		$10,564.50 1
014 78013706
TUNNEL RIGHT FRONT SIDE COVER ASSEMBLY (Supply VIN) 		$823.93 1
015 410863284
GLOVE BOX COVER ASSEMBLY (Supply VIN - E-GEAR) 		$1,095.44 1
015 410863761
GLOVE BOX COVER ASSEMBLY (Supply VIN - MANUAL GEARBOX) 		$2,137.10 1
016 410863300A
GLOVE BOX (E-GEAR) 		$291.01 1
016 410863300
GLOVE BOX (MANUAL GEARBOX) 		$213.72 1
017 413863849
ASHTRAY ASSEMBLY (Supply VIN) 		$354.85 1
017 410857405A
ASHTRAY ASSEMBLY (CARBON INTERIOR) 		$4,442.21 1
018 410857950
ASH TRAY 4B0857406 		$504.04 1
019 410711139
FRAME (MANUAL GEARBOX) 		$2,809.15 1
019 410713221
FRAME (FROM VIN 1304 L147EG - E-GEAR) 		$1,002.70 1
020 418863315A
ORNAMENT (FROM VIN 1304 L147EG - E-GEAR - SUPPLY VIN) 		$1,176.08 1
020 418863315E
ORNAMENT (E-GEAR - CARBON INTERIOR - SUPPLY VIN) 		$3,205.65 1
020 418863315
ORNAMENT (Supply VIN - MANUAL GEARBOX) 		$1,176.08 1
020 418863315D
ORNAMENT (MANUAL GEARBOX - CARBON INTERIOR) 		$3,158.61 1
021 78013687
TUNNEL LEFT FRONT SIDE COVER ASSEMBLY (Supply VIN) 		$931.47 1
022 413868681
PLATE 		$57.13 1
023 413857607A
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (CARBON INTERIOR) 		$3,749.99 1
023 413857927C
CAR HI-FI SYSTEM DASHBOARD RIGHT HANDLE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$848.13 1
024 410864255
OUTLET 		$276.90 1
025 410864877
AIR PIPE UNION GRID, DRIVER@S SIDE 		$126.35 1
026 69013655
CAR HI-FI SYSTEM DASHBOARD LEFT SIDE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$1,235.23 1
027 413858793A
LOWER LEFT DASHBOARD ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$668.02 1
028 69013669
LEFT SIDE COVER ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$637.08 1
028 69013670
RIGHT SIDE COVER ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$637.08 1
029 N01152427
WASHER 		$0.28 1
030 N01100637
NUT M6 		$0.33 (95.5% off) 1
031 410857320
BRACKET 		$10.43 1
032 WHT003116
STUD BOLT M5X25 		$11.17 1
032 8300510
STUD BOLT M5X14 		$8.35 1
033 410035313
BRACKET 		$43.76 1
033 410035314
BECKER BRACKET (For Becker Radio System) 		$78.51 1
034 413857504
LOWER RIGHT DASHBOARD ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN) 		$298.38 1
035 410858277
FRAME 		$400.53 1
035 410858277A
FRAME (CARBON INTERIOR) 		$5,161.26 1
036 410857350
SHEET 		$152.57 1
037 N90840802
WASHER 		$0.40 (94.5% off) 1
038 WHT000766
SCREW 2,9X9,5 		$0.09 1
039 410919242
FRAME 		$31.47 1
040 410858177
GASKET 		$5.19 1
041 410860163
AIRBAG KEY 		$47.40 1
042 N91109202
WASHER 		$0.67 (90.8% off) 3
043 WHT003116
STUD BOLT M5X25 		$11.17 1
043 8300510
STUD BOLT M5X14 		$8.35 2
044 WHT003116
STUD BOLT M5X25 		$11.17 2
045 N91109202
WASHER 		$0.67 (90.8% off) 2
046 WHT000760
NUT M5 		$0.13 2
047 WHT003069
SCREW M6X1X20 		$44.78 2
048 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.53 4
049 WHT003069
SCREW M6X1X20 		$44.78 4
050 WHT002961
WASHER 		$0.42 4
051 410863285A
SPRING (E-GEAR) 		$61.36 1
051 410863285
SPRING (MANUAL GEARBOX) 		$48.66 1
052 410863286A
SPRING (E-GEAR) 		$61.36 1
052 410863286
SPRING (MANUAL GEARBOX) 		$48.66 1
053 400713110D
SELECTOR (E-GEAR) 		$991.94 1
054 410864191
SUPPORT (E-GEAR) 		$54.59 2
055 410035329
BRACKET 		$64.32 2
056 418863274
TUNNEL REAR TOP BODY ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
057 417867970
DOME LIGHT BEZEL ON FIXED COVER 		$57.48 1
058 410858482
HANDLE 		$10.91 2
059 WHT000760
NUT M5 		$0.13 3
060 400804347
SPACER 		$17.68 1
061 WHT003069
SCREW M6X1X20 		$44.78 2
062 WHT002961
WASHER 		$0.42 2
063 8300510
STUD BOLT M5X14 		$8.35 2
064 WHT003116
STUD BOLT M5X25 		$11.17 1
065 WHT000760
NUT M5 		$0.13 1
066 WHT002961
WASHER 		$0.42 1
067 410863988
PLUG 		$1.05 (85.5% off) 1
068 400867299
FASTENER LYS FUSION, YELLOW 		$17.96 2
069 WHT002961
WASHER 		$0.42 3
070 WHT000760
NUT M5 		$0.13 3
071 8300402
STUD BOLT M4X16 		$8.33 (3.1% off) 2
072 N91109201
WASHER 		$1.55 (73.5% off) 2
073 WHT002959
CLAMPING NUT 		$0.82 (88.7% off) 2
074 N91109201
WASHER 		$1.55 (73.5% off) 4
075 WHT002959
CLAMPING NUT 		$0.82 (88.7% off) 4
076 400863119
BUNGS 		$0.42 (94.3% off) 5
077 N91104501
CLIP 		$41.47 5
079 N01020717
SCREW M5X12 		$0.67 (90.8% off) 3
080 WHT000760
NUT M5 		$0.13 3
082 WHT002959
CLAMPING NUT 		$0.82 (88.7% off) 4
083 N91109202
WASHER 		$0.67 (90.8% off) 4
