Dashboard Instruments

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

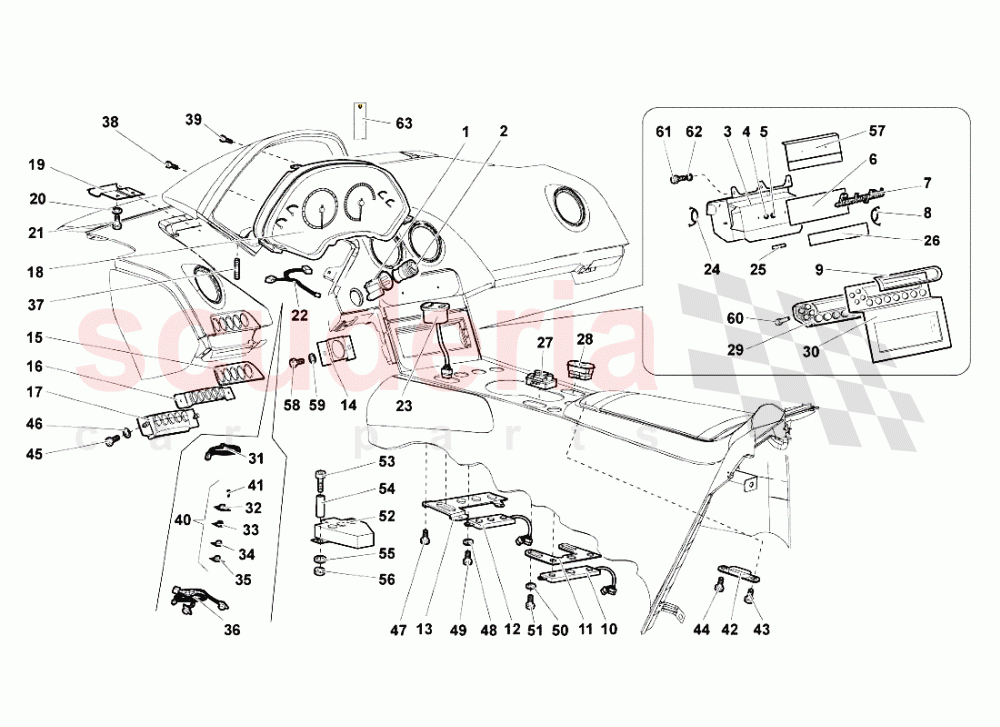

Dashboard Instruments of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410857529
RING 		- 1 Enquire
002 410919307
LIGHTER 		- 1 Enquire
003 410861941B
A/C PANEL ASSEMBLY 		- 1 Enquire
004 8200301
NUT 		- 1 Enquire
005 8410311
WASHER 		- 1 Enquire
006 69013653
LID (Supply VIN) 		- 1 Enquire
007 400853742A
LAMBORGHINI ORNAMENT 		- 1 Enquire
008 410863432
RIGHT SPRING 		- 1 Enquire
009 410861719
FRAME 		- 1 Enquire
010 41797127A
ANSOR KEYBOARD IN THE GEARBOX REAR SIDE 		- 1 Enquire
011 417858092
FRAME (MANUAL GEARBOX) 		- 1 Enquire
011 417858092A
FRAME (E-GEAR) 		- 1 Enquire
012 413927143A
ANSOR KEYBOARD IN THE GEARBOX FRONT SIDE 		- 1 Enquire
013 417858091
FRAME 		- 1 Enquire
014 410858023
BRACKET 		- 1 Enquire
015 413864147
FRAME 		- 1 Enquire
015 413863365A
FRAME (CARBON INTERIOR - SUPPLY VIN) 		- 1 Enquire
016 413864107
BRACKET 		- 1 Enquire
017 413941567A
ANSOR KEYBOARD IN THE DASHBOARD (E-GEAR) 		- 1 Enquire
017 413941567
ANSOR KEYBOARD IN THE DASHBOARD (MANUAL GEARBOX) 		- 1 Enquire
018 410920900
INSTRUMENT PANEL ASSEMBLY 		- 1 Enquire
018 410920900H
INSTRUMENT PANEL ASSEMBLY KM 		- 1 Enquire
019 410858573
BRACKET 		- 1 Enquire
020 8400401
WASHER 		- 2 Enquire
021 8100408
SCREW 		- 2 Enquire
023 410959565A
SIDE VIEW MIRRORS SWITCH 		- 1 Enquire
024 410863431
LEFT SPRING 		- 1 Enquire
025 443803389C
FELT 		- 1 Enquire
026 410862547
MOLDING 		- 1 Enquire
027 51009880
KONI KEYBOARD 		- 1 Enquire
028 410919815
WINDOW POWER SWITCH 		- 1 Enquire
029 410820043
DIAVIA A/C DASHBOARD ASSEMBLY 		- 1 Enquire

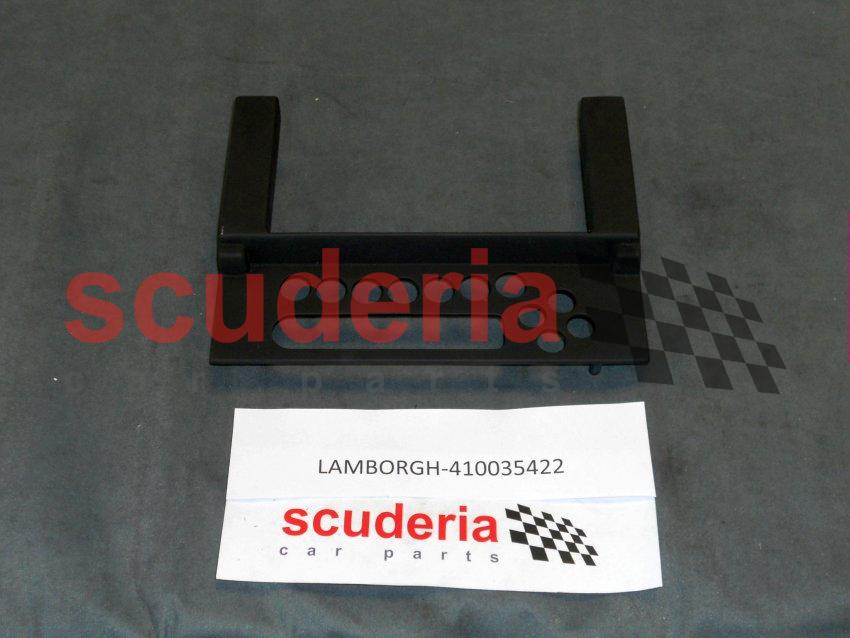

030 410035422A
FRAME (CARBON INTERIOR - SUPPLY VIN) 		- 1 Enquire
030 410035422
Frame 		- 1 Enquire
031 61013367
WIRING HARNESS 		- 1 Enquire
037 8300510
STUD BOLT M5X14 		- 2 Enquire
038 8700430
SCREW M4X16 		- 2 Enquire
039 8700816
SCREW 		- 2 Enquire
040 410919225
Button Set (For VDO parts) 		- 1 Enquire
041 8700202
SCREW 		- 8 Enquire
042 410857851
FRAME 		- 2 Enquire
043 8700479
SCREW 		- 2 Enquire
044 WHT003302
SCREW M4X6 		- 2 Enquire
045 N01020717
SCREW M5X12 		- 2 Enquire
046 N91109201
WASHER 		- 2 Enquire
047 8700479
SCREW 		- 4 Enquire
048 8400304
WASHER 		- 4 Enquire
049 8700337
SCREW 		- 4 Enquire
050 8400401
WASHER 		- 4 Enquire
051 8700408
SCREW M4X10 		- 4 Enquire
052 417919823
E-GEAR CONTROL PANEL 		- 1 Enquire
053 N91078401
SCREW 		- 2 Enquire
054 410857441
SPACER 		- 2 Enquire
055 WHT002961
WASHER 		- 2 Enquire
056 WHT002961
WASHER 		- 2 Enquire
057 410864123A
LID (CARBON INTERIOR - SUPPLY VIN) 		- 1 Enquire
058 N10580702
SCREW 		- 2 Enquire
059 N10612001
WASHER 		- 2 Enquire
060 N10613301
SCREW M3X8 		- 2 Enquire
061 N10580702
SCREW 		- 3 Enquire
062 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		- 3 Enquire
063 63000337
NAMEPLATE FOR A INSTRUMENT PANEL 		- 1 Enquire
