Lamborghini Murcielago Roadster - Rear Suspension

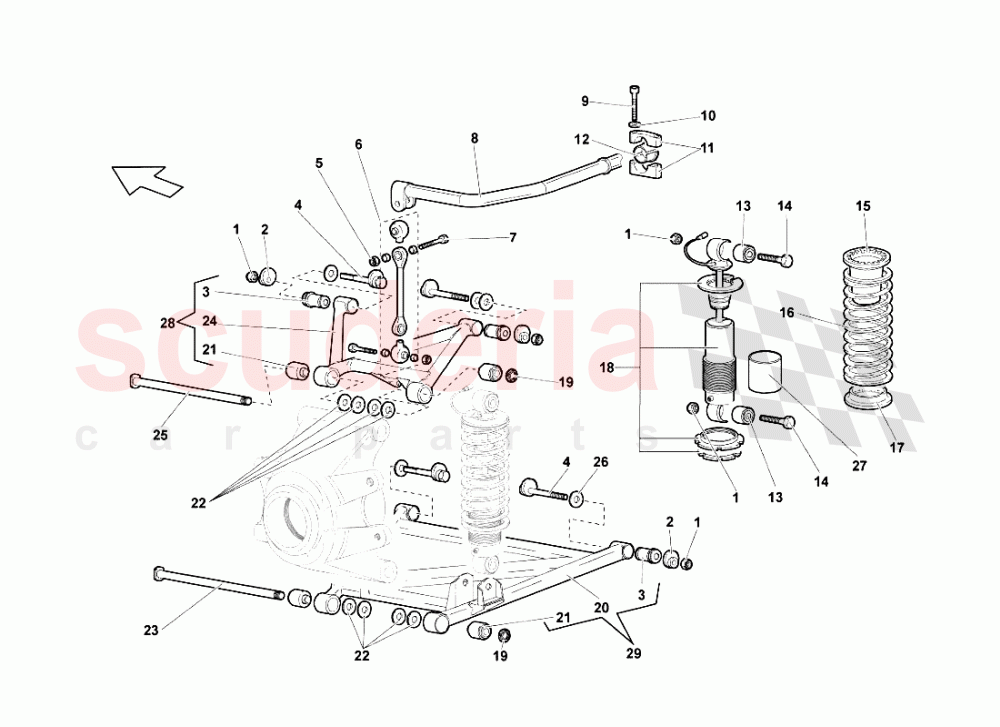

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10725301	NUT 12X1,25X14,8	N10725301 NUT 12X1,25X14,8	-	8	Enquire
002	410407127A	BOLT	410407127A BOLT	-	8	Enquire
004	410407127A	BOLT	410407127A BOLT	-	8	Enquire
005	8200804	NUT M8	8200804 NUT M8	-	4	Enquire
006	410411317	CONNECTING ROD	410411317 CONNECTING ROD	-	2	Enquire
007	N01034518	SCREW M8X45	N01034518 SCREW M8X45	-	4	Enquire
008	410511409	STABILIZER BAR	410511409 STABILIZER BAR	-	1	Enquire
009	WHT000923	SCREW M6X52	WHT000923 SCREW M6X52	-	4	Enquire
010	WHT001197A	WASHER	WHT001197A WASHER	-	4	Enquire
011	400411031D	U-BOLT	400411031D U-BOLT	-	2	Enquire
012	400511324C	BUSH	400511324C BUSH	-	2	Enquire
013	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	-	8	Enquire
014	8101281	SCREW M12X70	8101281 SCREW M12X70	-	8	Enquire
015	410512108	PANEL	410512108 PANEL	-	4	Enquire
016	5133618	SPRING	5133618 SPRING	-	4	Enquire
017	410512385	RUBBER RING	410512385 RUBBER RING	-	4	Enquire
018	410512031B	REAR ELECTRONICALLY-CONTROLLED SHOCK ABSORBER (FROM VIN 1547)	410512031B REAR ELECTRONICALLY-CONTROLLED SHOCK ABSORBER (FROM VIN 1547)	-	4	Enquire
019	N10268603	NUT M14X1,5	N10268603 NUT M14X1,5	-	4	Enquire
022	400407749	0.5 MM SHIM	400407749 0.5 MM SHIM	-	24	Enquire
022	400407742	2.0 MM SHIM	400407742 2.0 MM SHIM	-	24	Enquire
022	400407740	1.5 MM SHIM	400407740 1.5 MM SHIM	-	24	Enquire
022	400407739	1.0 MM SHIM	400407739 1.0 MM SHIM	-	24	Enquire
023	52008857	JOURNAL	52008857 JOURNAL	-	2	Enquire
025	52008858	JOURNAL	52008858 JOURNAL	-	2	Enquire
026	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	-	1	Enquire
026	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM	-	1	Enquire
026	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM	-	1	Enquire
026	410407295A	1.5 MM ADJUSTMENT SHIM	410407295A 1.5 MM ADJUSTMENT SHIM	-	1	Enquire
026	410407295D	WASHER	410407295D WASHER	-	1	Enquire
027	52010342	PROTECTION	52010342 PROTECTION	-	1	Enquire
028	410505323	LH UPPER ARM	410505323 LH UPPER ARM	-	1	Enquire
028	410505324	RH UPPER ARM	410505324 RH UPPER ARM	-	1	Enquire
028	410505323A	LH UPPER ARM (CERAMIC BRAKE)	410505323A LH UPPER ARM (CERAMIC BRAKE)	-	1	Enquire
028	410505324A	RH UPPER ARM (CERAMIC BRAKE)	410505324A RH UPPER ARM (CERAMIC BRAKE)	-	1	Enquire
029	410505312	RH LOWER ARM	410505312 RH LOWER ARM	-	1	Enquire
029	410505311	LH LOWER ARM	410505311 LH LOWER ARM	-	1	Enquire
